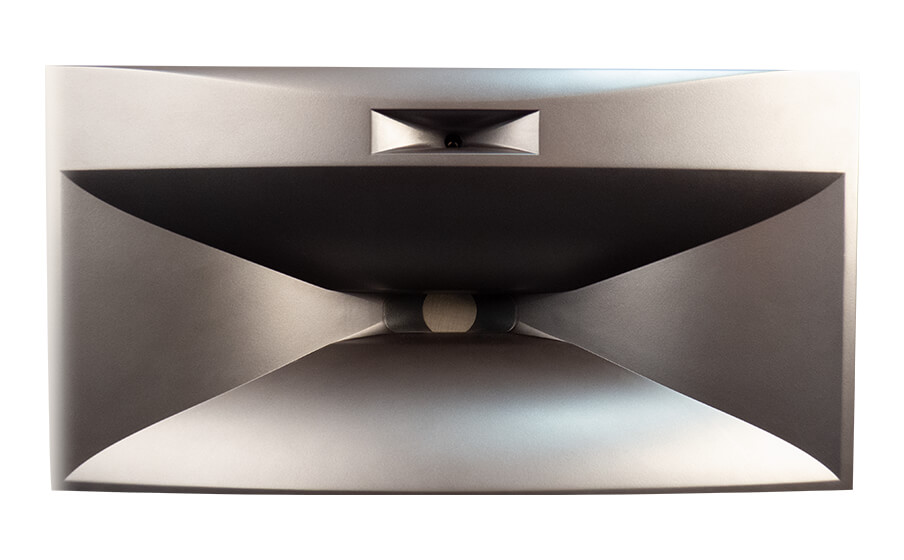

- 1.75-inch (45mm) Titanium diaphragm compression driver mated to a patented Bi-Radial horn.

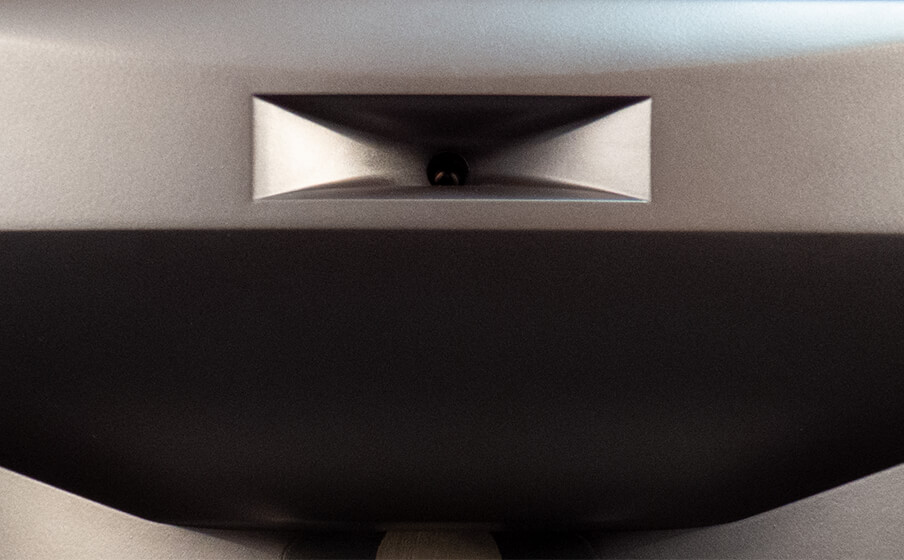

- 0.75-inch (19mm) Titanium diaphragm ultra high-frequency driver.

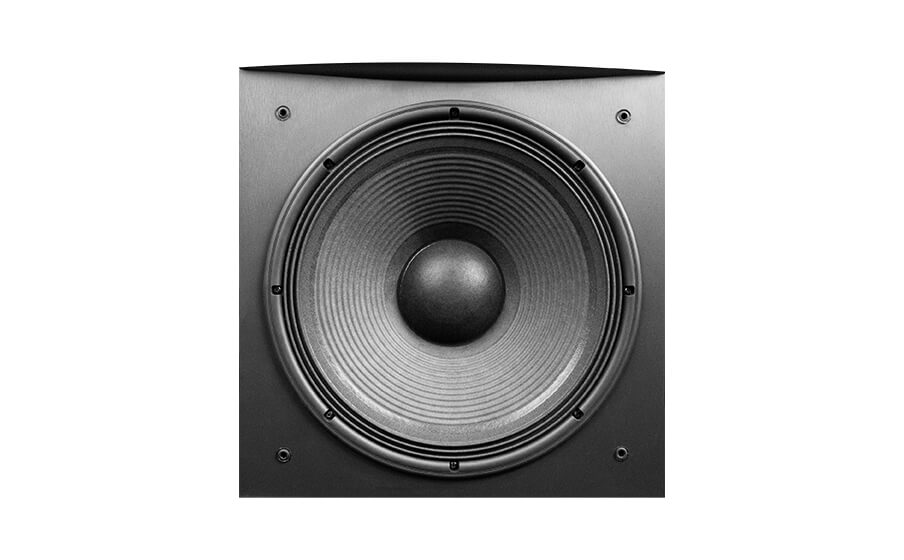

- 15-inch (380mm) pure-pulp cone woofer.
- Furniture-grade cherry wood veneer enclosure.
- Advanced crossover network.

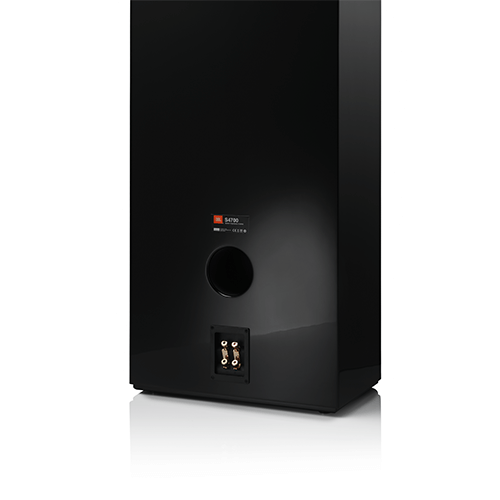

- Separate low-frequency and high-frequency rear-input terminals.
1.75-inch (45mm) Titanium diaphragm compression driver mated to a patented Bi-Radial horn.
0.75-inch (19mm) Titanium diaphragm ultra high-frequency driver.
15-inch (380mm) pure-pulp cone woofer.
Features
Furniture-grade cherry wood veneer enclosure.
Advanced crossover network.
Separate low-frequency and high-frequency rear-input terminals.
Specs & Downloads
Item#: S4700

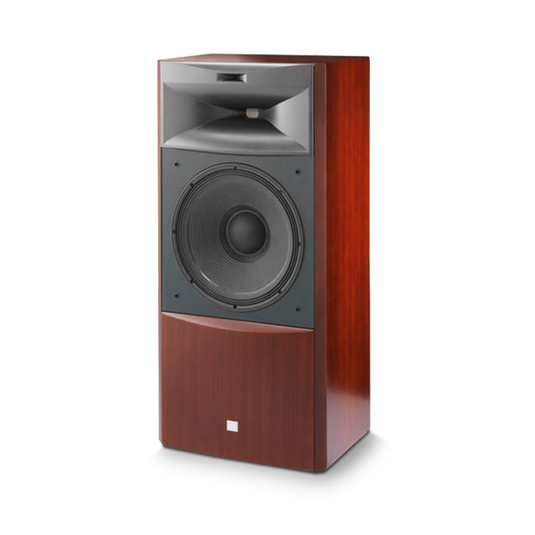

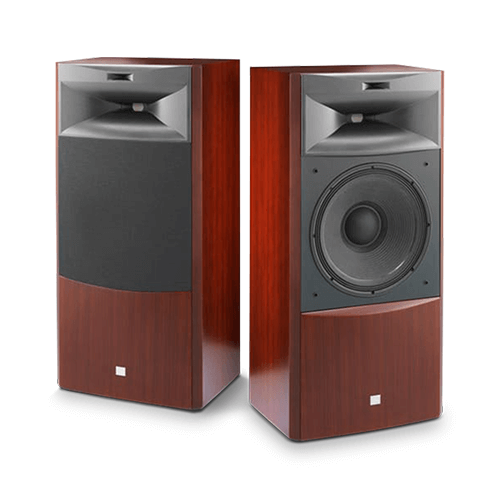

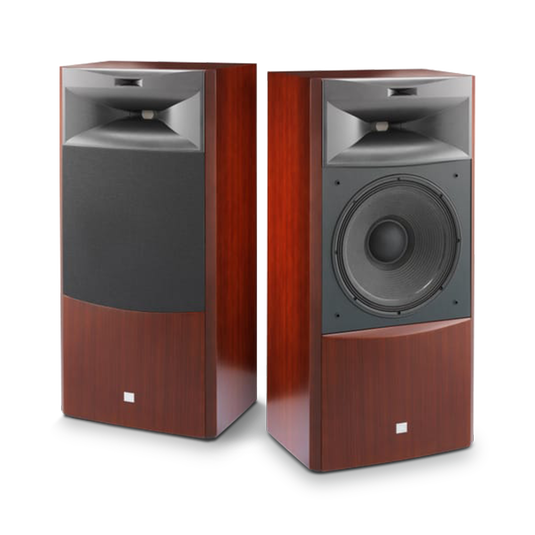

JBL S4700
The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today. At its foundation, the S4700 uses a cast-frame 15-inch (380mm) woofer, a 1.75-inch (45mm) titanium compression driver and a 0.75-inch (20mm) titanium compression driver for lifelike dynamics and startling realism.
General Specifications
- Description
- 3-way Floorstanding Loudspeaker
- Frequency Response
- 38Hz - 40kHz (-6db)
- Power Handling
- 300W RMS
- Sensitivity (2.83V @ 1m)
- 94dB
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 80Hz, 12kHz
- Dimensions (H x W x D)
- 42.1" x 19.7" x 14.6" (106.8 x 50.0 x 37.1cm)
- Net Weight
- 120 lb (54.5kg)
