- Top-graded PolyPlass cones
- High-quality sounding compression drivers
- New, appealing form factor
- High-definition imaging Waveguide with high-frequency compression driver
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
Features
High-definition imaging Waveguide with high-frequency compression driver
Specs & Downloads
Item#: JBLS620W
EAN: 6925281944284
Studio 620

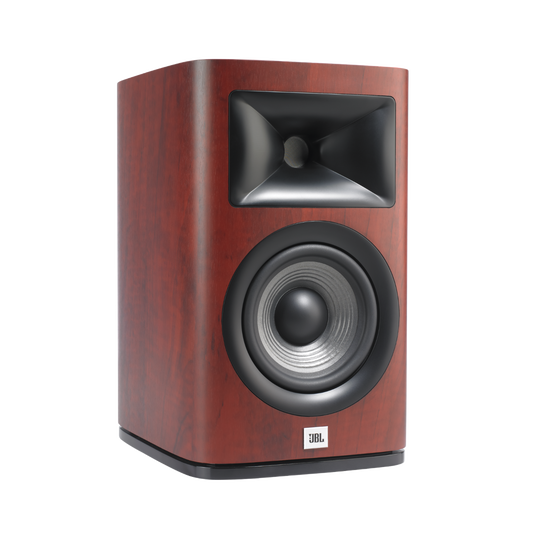

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
General Specifications
- Single 5.25", 2-way compression driver bookshelf loudspeaker

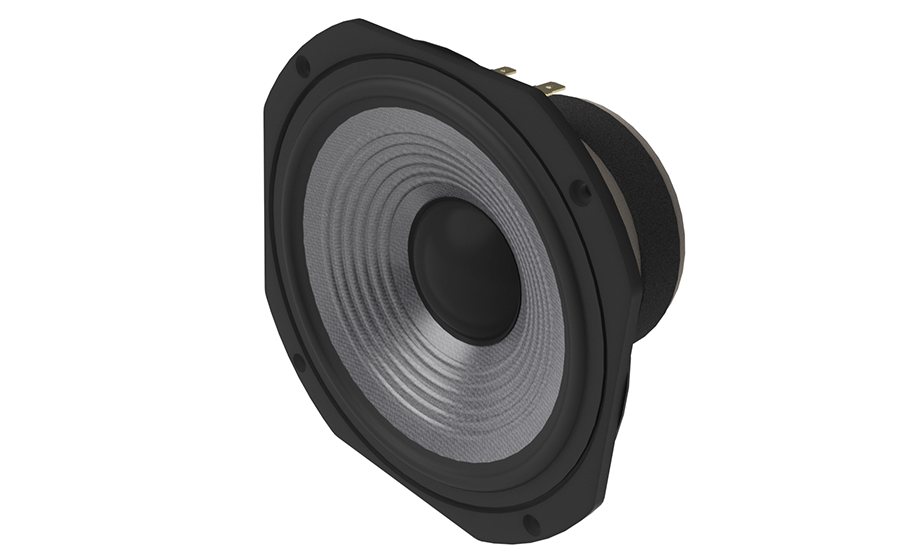

- 5.25" (133mm) PolyPlas Low-Frequency Woofer

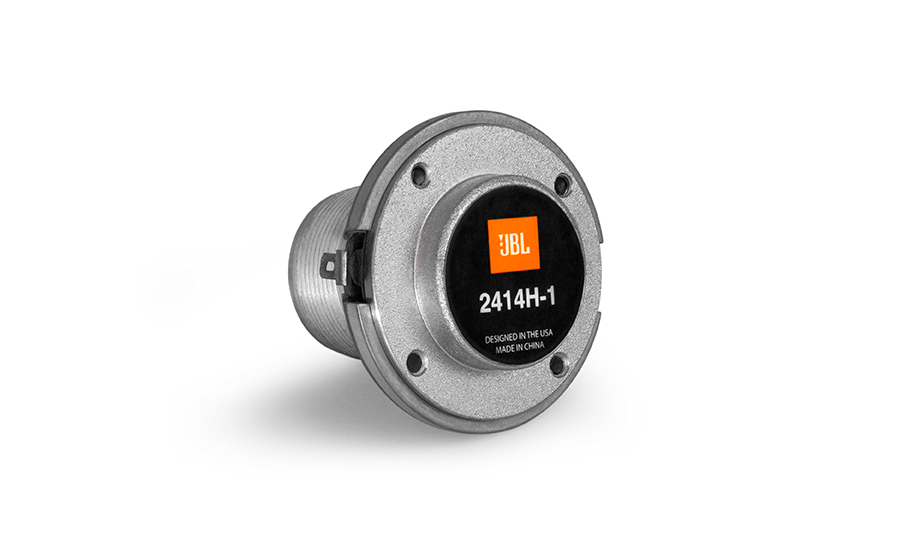

- High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
- Recommended Amplifier Power
- Max 100W
- Frequency Response
- 50Hz – 40kHz
- Sensitivity
- 84dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 2.3 kHz
- Enclosure Type

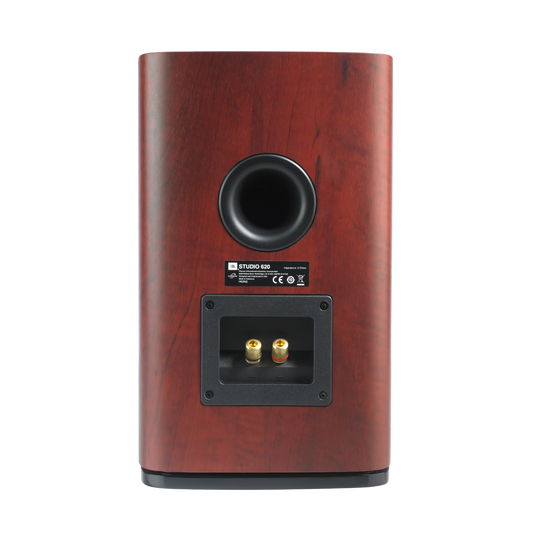

- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 190 x 240 x 312mm
- 2 x JBL Studio 620 Compact Bookshelf Loudspeaker
- 8 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
