- Top-graded PolyPlass cones
- High-quality sounding compression drivers
- New, appealing form factor
- High-definition imaging Waveguide with high-frequency compression driver
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
Features
High-definition imaging Waveguide with high-frequency compression driver
Specs & Downloads
Item#: JBLS630W
EAN: 6925281944260

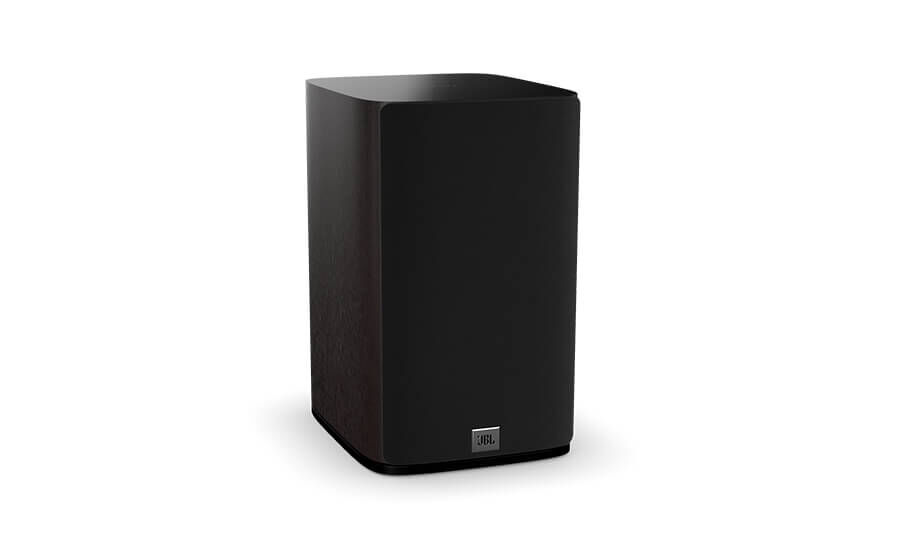

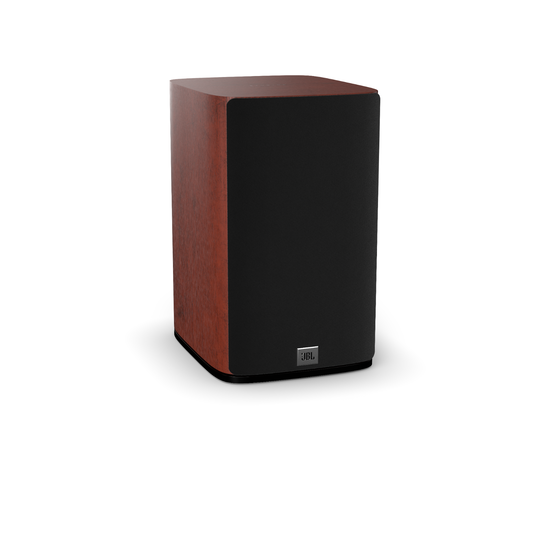

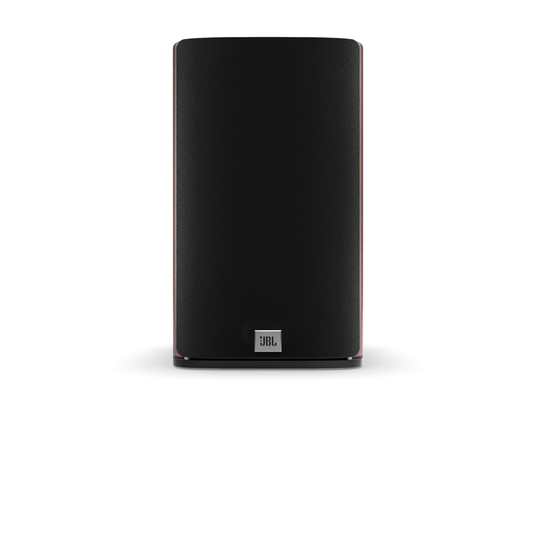

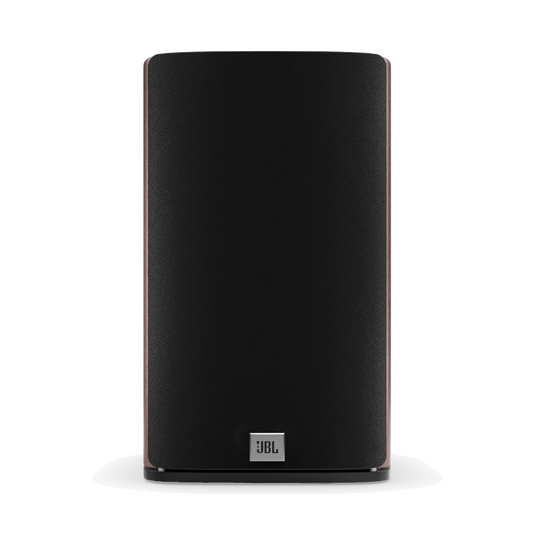

Studio 630
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
General Specifications
- Single 6.5", 2-way compression driver bookshelf loudspeaker

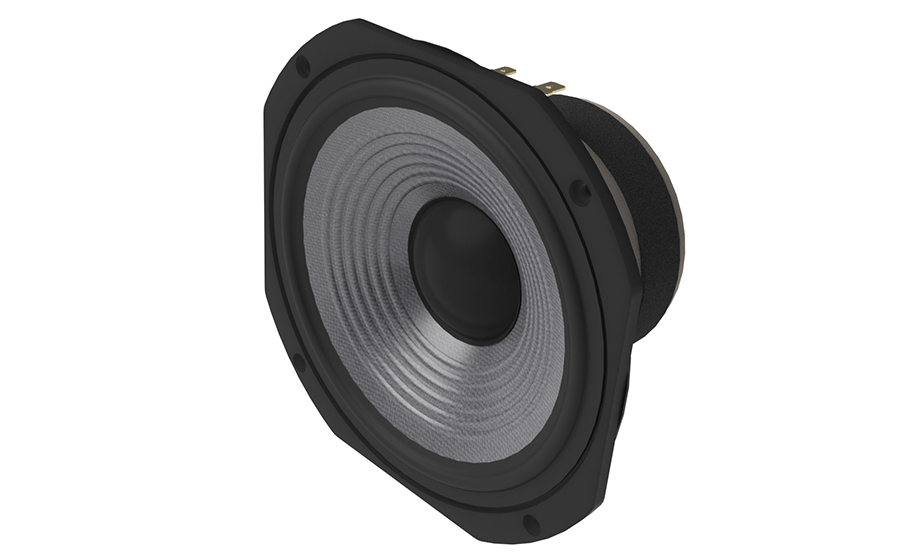

- 6.5" (165mm) PolyPlas Low-Frequency Woofer

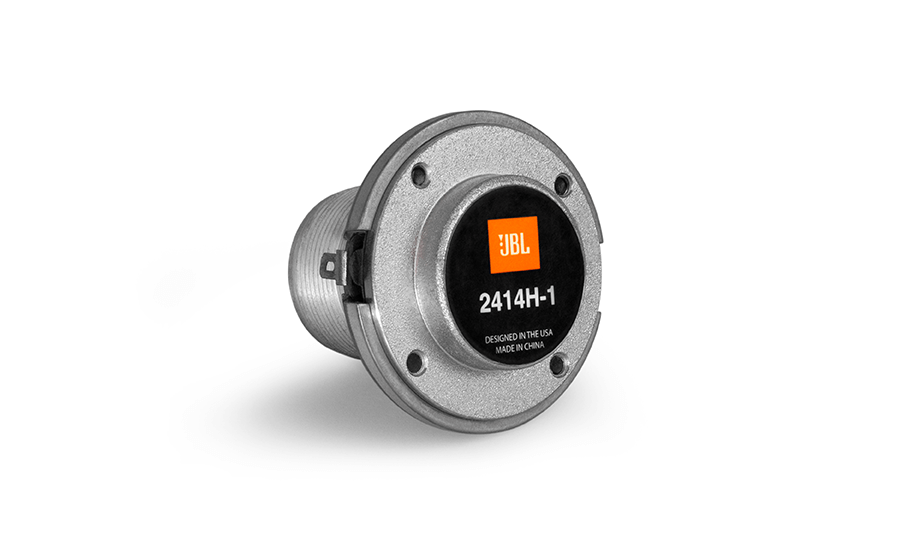

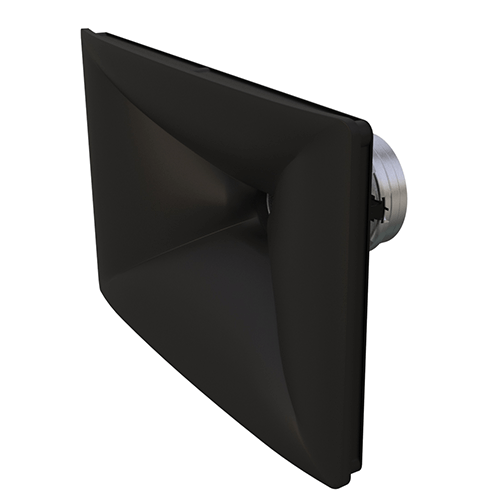

- High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
- Recommended Amplifier Power
- Max 150W
- Frequency Response
- 45Hz – 40kHz
- Sensitivity
- 85dB @ 1M, 2.83V
- Nominal Impedance
- 6 Ohms
- Crossover Frequencies
- 1.9 kHz
- Enclosure Type

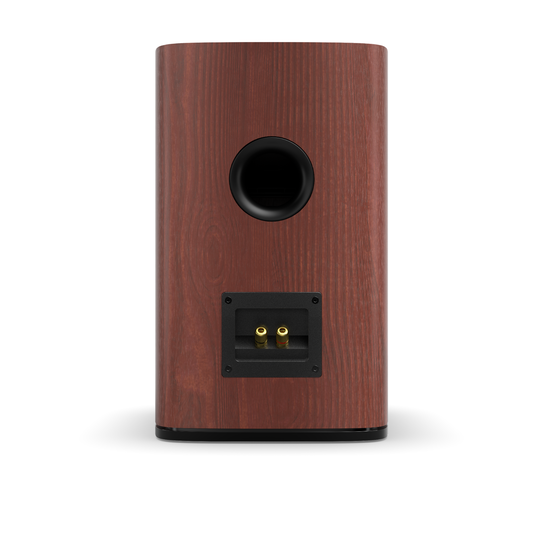

- Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H)
- 230 x 280 x 372mm
- 2 x JBL Studio 630 Bookshelf Loudspeaker
- 8 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
