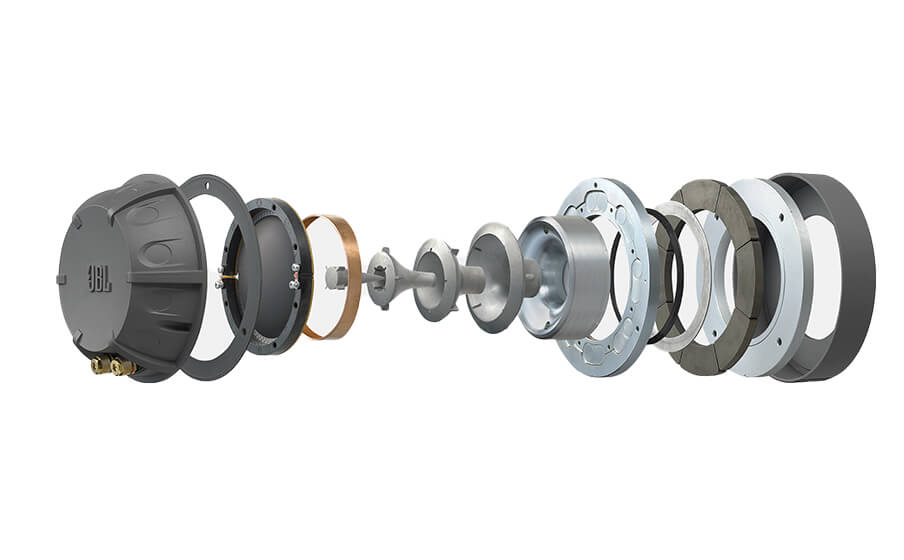

- 4-inch (100mm) magnesium diaphragm compression driver mated to a patented Bi-Radial horn.

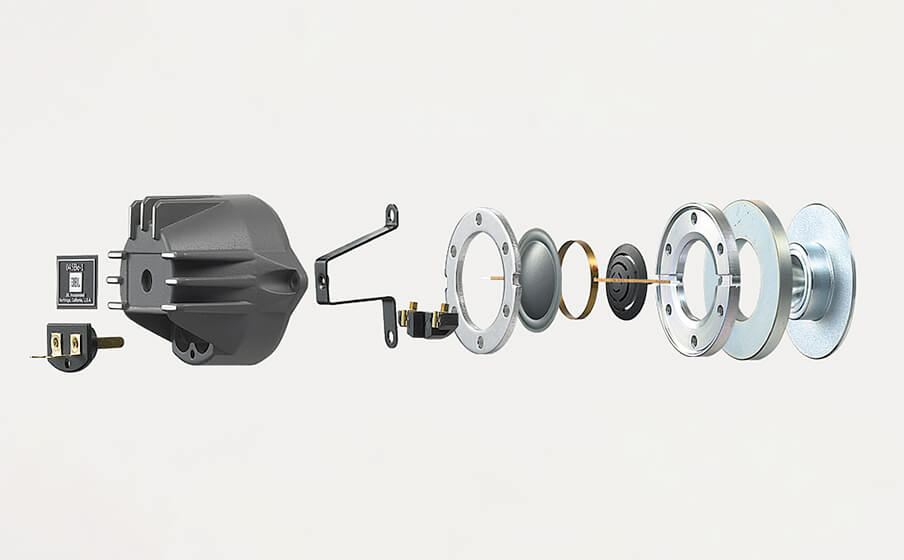

- 1-inch (25mm) pure-beryllium diaphragm ultra high-frequency driver.

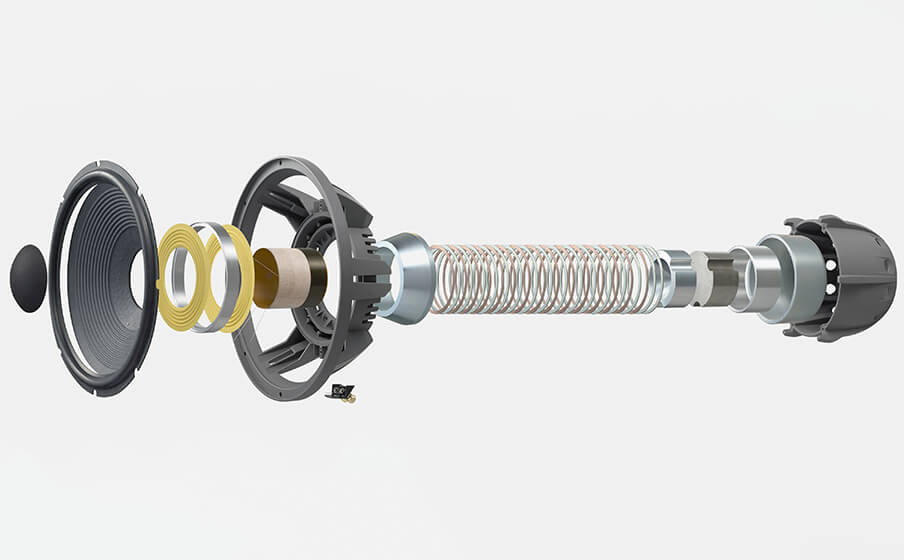

- 15-inch (380-millimeter) pure-pulp cone woofer.

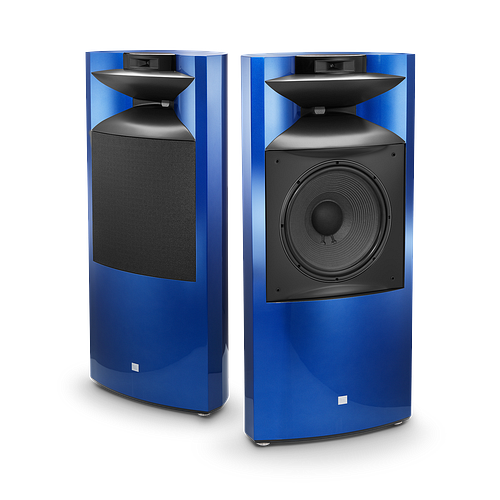

- Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic).
- High-frequency and Ultra High-frequency level attenuators.

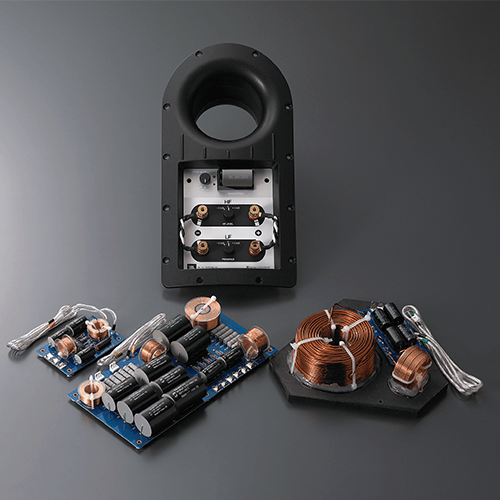

- Separate LF and HF crossover networks.

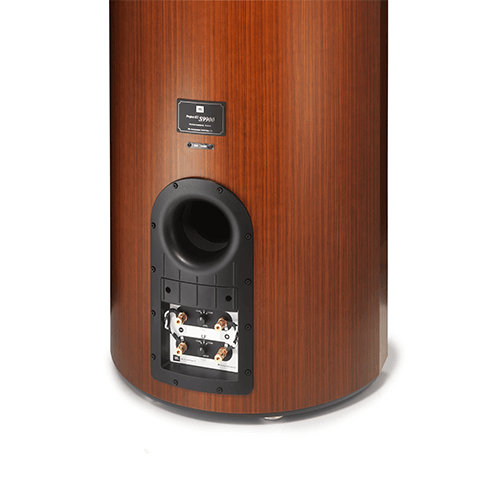

- Separate low-frequency and high-frequency rear-input terminals.
4-inch (100mm) magnesium diaphragm compression driver mated to a patented Bi-Radial horn.
1-inch (25mm) pure-beryllium diaphragm ultra high-frequency driver.
15-inch (380-millimeter) pure-pulp cone woofer.
Features
Available in Rosewood and a selection of six premium high-gloss automotive-grade paint finishes (Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic and Sapphire Blue Metallic).
High-frequency and Ultra High-frequency level attenuators.
Separate LF and HF crossover networks.
Separate low-frequency and high-frequency rear-input terminals.
Video Gallery
Specs & Downloads
Item#: K2S9900BG

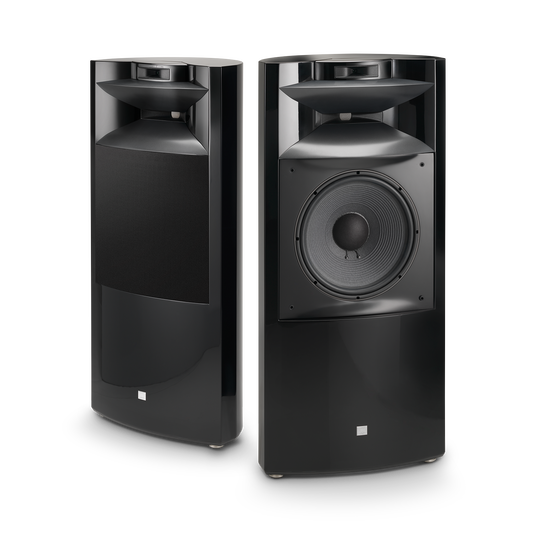

Project K2 S9900
Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today, is the latest expression in technology that is deeply rooted in more than 75 years of tradition. Like the Paragon and Hartsfield, the K2 S9900 was built around compression driver technology and addressed a more refined stereo image than was previously considered technically feasible. The K2 S9900 also incorporates key design elements from the Project Everest. Despite its 21st century power and sophistication, Project K2 S9900 is a synthesis of tradition and technology.
General Specifications
- Type
- Floor-Standing Speakers
- Finish
- Cherry
- Width (in)
- 22
Audio Specifications
- Maximum Recommended Amplifier Power
- 500
- Frequency Response
- (-6dB) 48Hz-50kHz
- Nominal Impedance
- 8 Ohms 7 ohms minimum at 100Hz, 4ohms minimum at 40kHz
- Sensitivity (2.83V@1m)
- (2.83V@1m) 93dB
- Crossover Frequencies
- 900Hz (24dB/octave) 15kHz (24dB/octave, high-pass only)
Dimensions
- Height (mm)
- 1200
- Height (in)
- 47-5/16
- Weight (kg)
- 82.7
- Weight (lb)
- 182
- Width (mm)
- 560
- Depth (mm)
- 350
- Depth (in)
- 13-13/16
Speaker Specifications
- Low-Frequency Transducer
- 15" (380mm) Pulp-cone woofer (1500AL-1)
- High-Frequncy Transducer
- 4" (100mm) Magnesium compression driver (476Mg)
