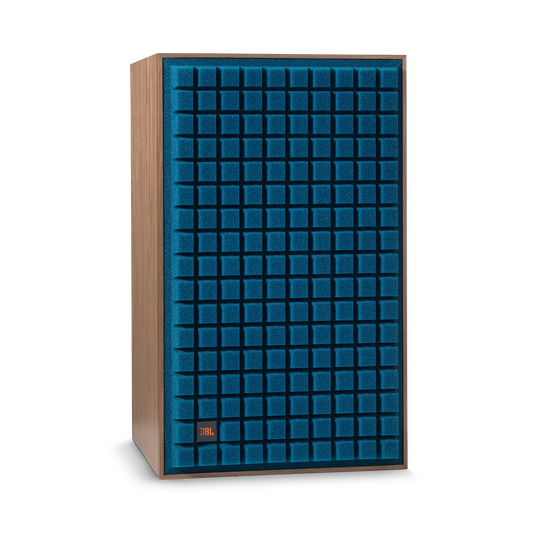

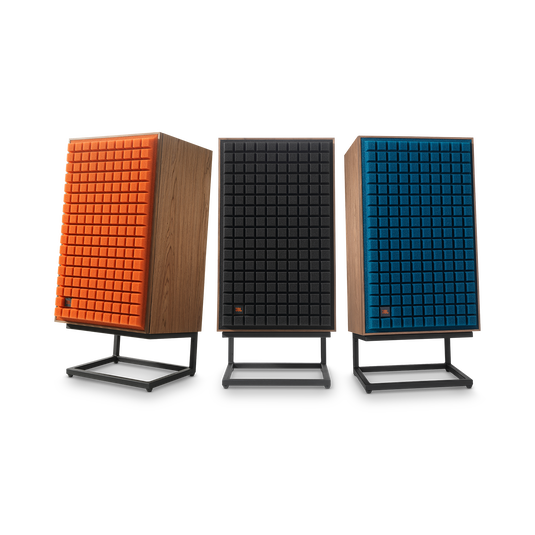

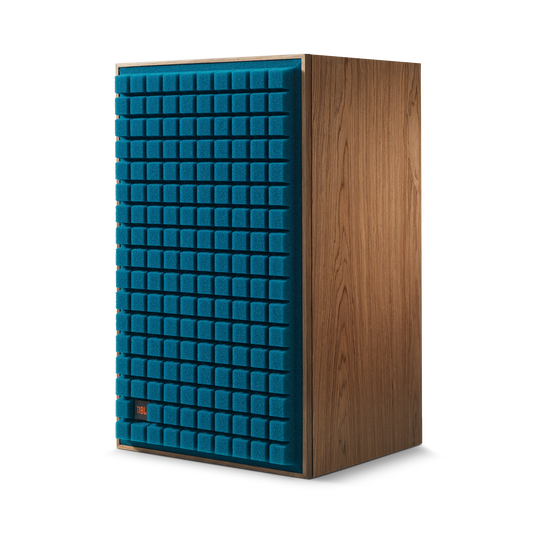

- Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue

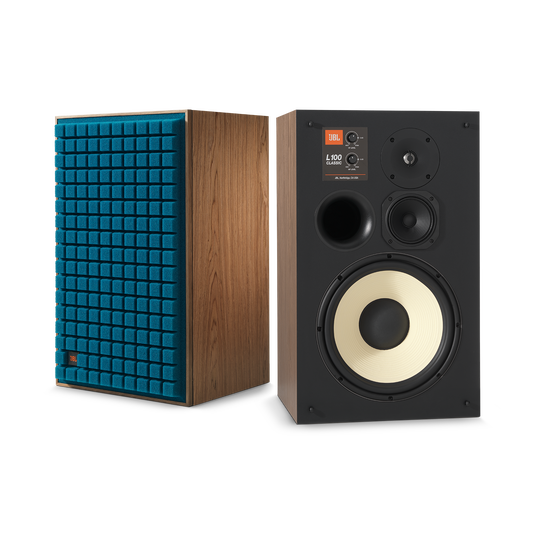

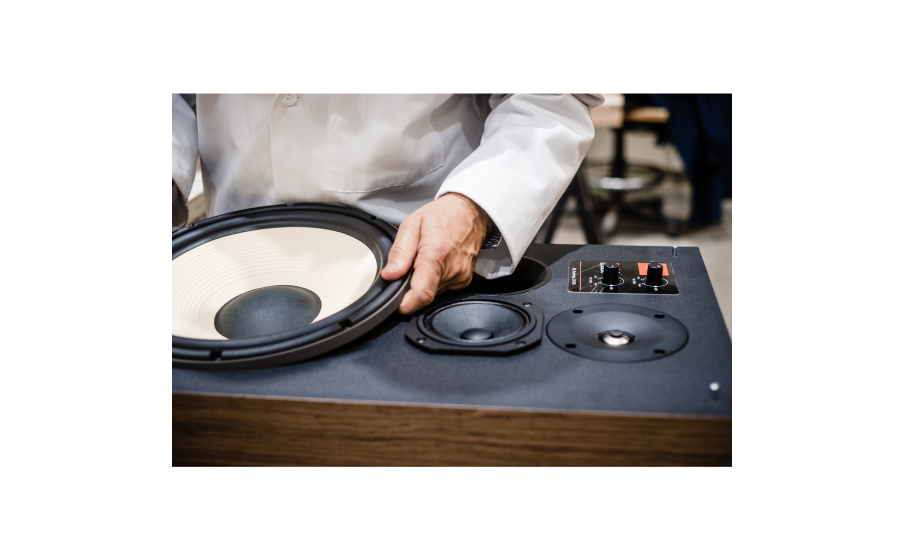

- 12-inch (300mm) cast-frame, white pure-pulp cone woofer in bass-reflex design with front-firing tuned port.
- Genuine satin walnut wood veneer.
- 5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.
- 1-inch (25mm) titanium dome tweeter mated to acoustic lens waveguide.
- Bass-reflex design and front-firing port

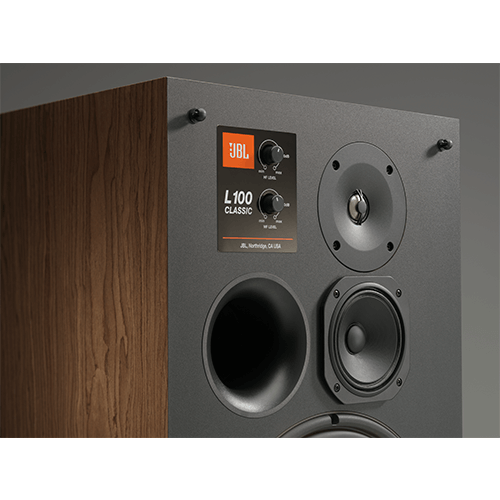

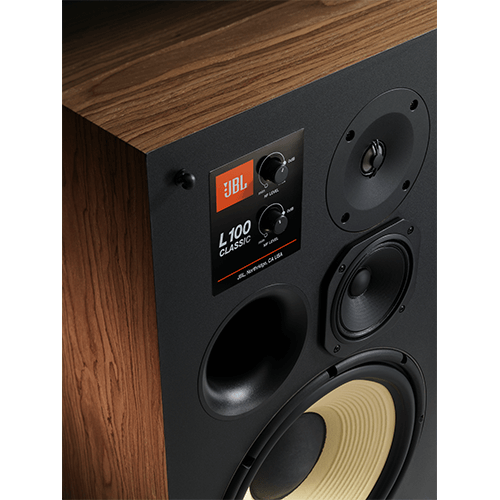

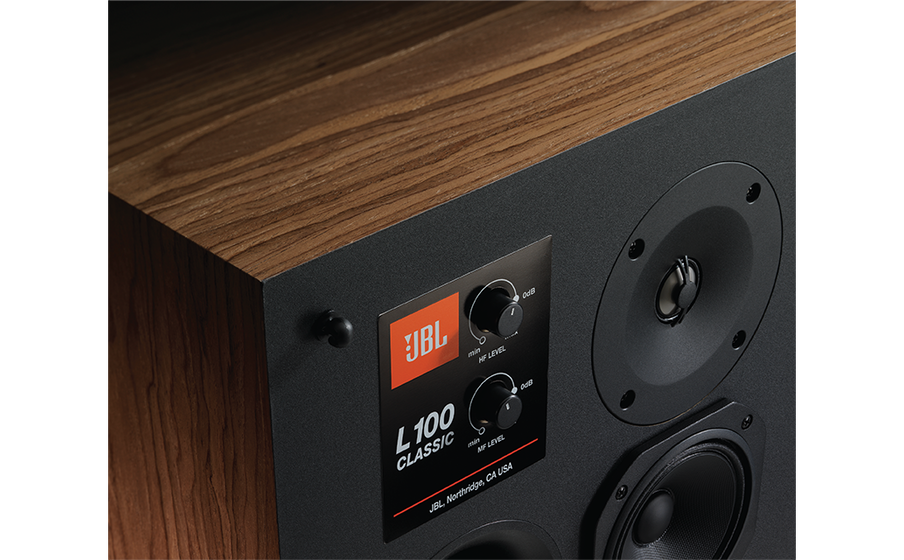

- High-frequency and mid-frequency level attenuators.

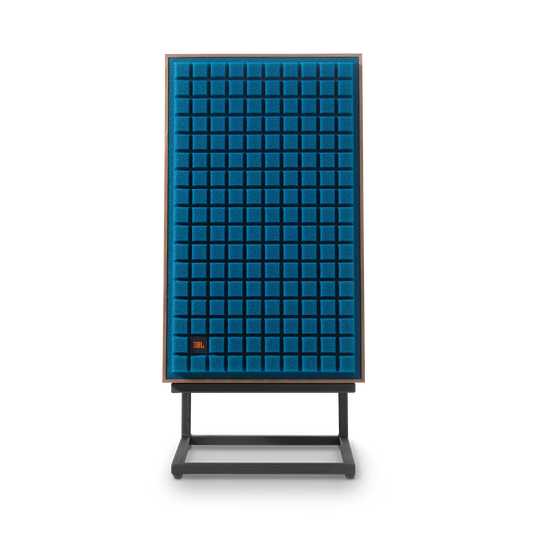

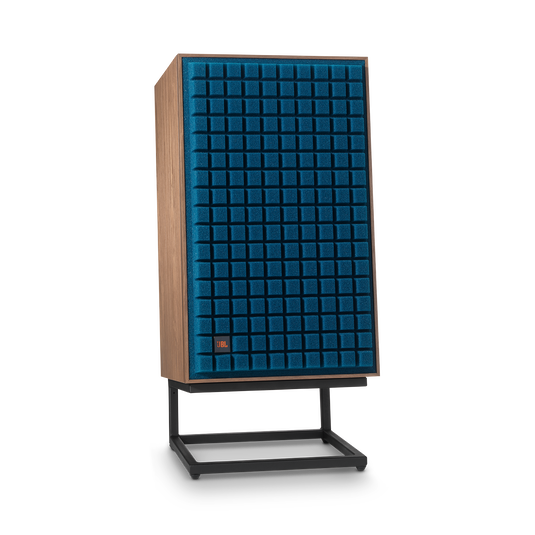

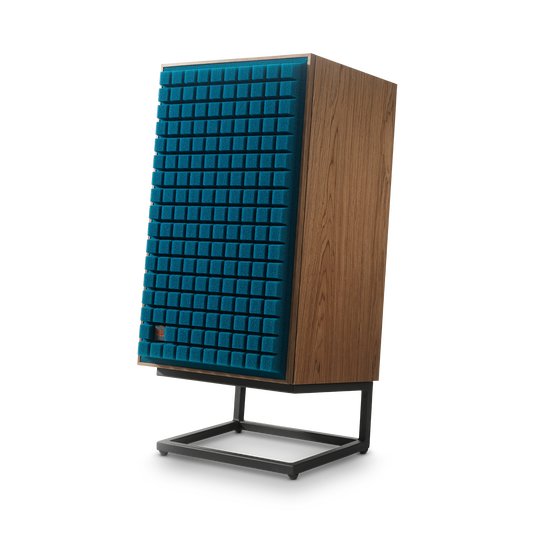

- Recommended JS-120 speaker stands (sold separately).
Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue
12-inch (300mm) cast-frame, white pure-pulp cone woofer in bass-reflex design with front-firing tuned port.
Genuine satin walnut wood veneer.
Features
5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.
1-inch (25mm) titanium dome tweeter mated to acoustic lens waveguide.
Bass-reflex design and front-firing port
High-frequency and mid-frequency level attenuators.
Recommended JS-120 speaker stands (sold separately).
Video Gallery
Specs & Downloads
Item#: JBLL100CLASSICUAM
EAN: 6925281951404
L100 Classic
In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL’s history. We are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance. Accessory JS-120 floor stands lift and tilt the speaker for optimum performance.
General Specifications
- Low-frequency transducer
- 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
- Mid-frequency transducer
- 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
- High-frequency transducer
- 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
- Sensitivity
- 90dB (2.83V/1m)
- Power Handling
- 25 - 200 Watts RMS
- Crossover Frequencies
- 450Hz, 3.5kHz
- Impedance
- 4 Ohms
- Frequency Response
- 40Hz – 40kHz (-6dB)
- Dimensions
- 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
- Weight
- 58.5 lbs (26.7 kg)
- 1 L100 Bookshelf Loudspeaker
JS-120 Speaker Stands Quick Specs
431.01 KB
Owner's Manual (CN)
1.25 MB
Owner's Manual (FR)
1.01 MB
Owner's Manual (DE)
1.04 MB
Owner's Manual (JP)
1.14 MB
Owner's Manual (KO)
1.15 MB
Owner's Manual (RU)
1.11 MB
Owner's Manual (ES)
1.1 MB
Owners Manual (English)
905.6 KB
Product Brochures (English)
544.52 KB
Quick Specs (English)
1.39 MB
Spec Sheet (English)
997.49 KB
Spec Sheet (English)
998.98 KB
