4305P Studio Monitor

4305P Studio Monitor

The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.

General Specifications

Type

Compact, Bass-reflex Loudspeaker System with Built-inAmplification, DSP, and Wireless Connectivity

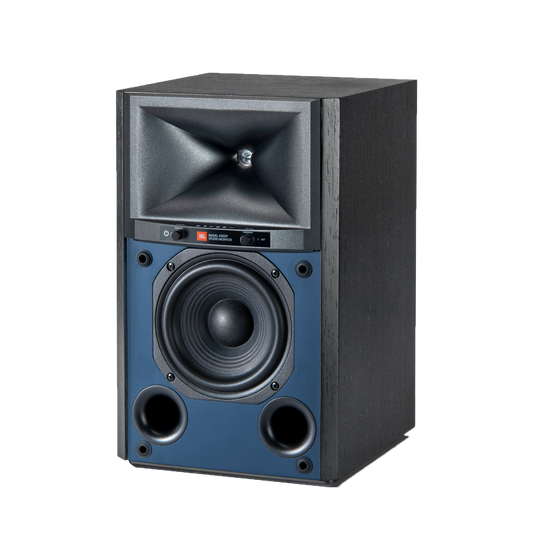

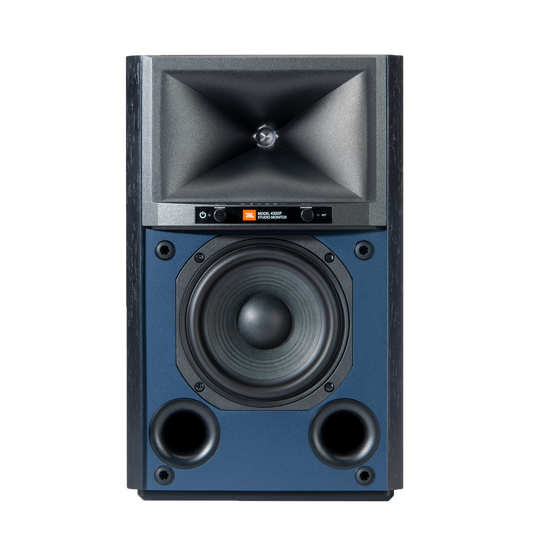

Low Frequency Drivers

JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

High Frequency Drivers

2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns

Amplifier Power

300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer)

Audio Resolution

Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response

45 Hz - 25 kHz (-6 dB)

Crossover Frequency

1,750 Hz

Dispersion

90° Horizontal x 60° Vertical (2kHz to 20kHz)

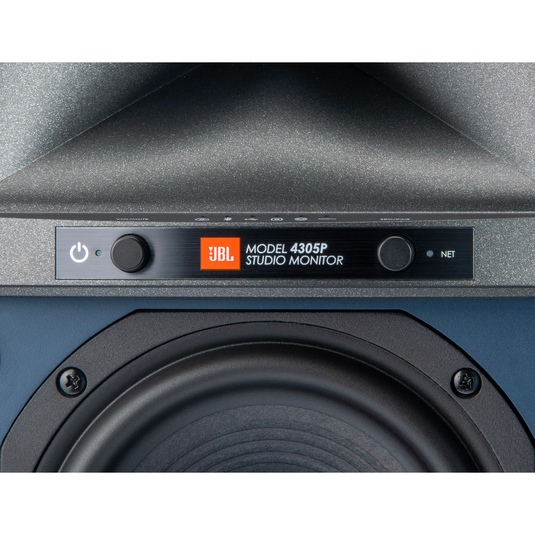

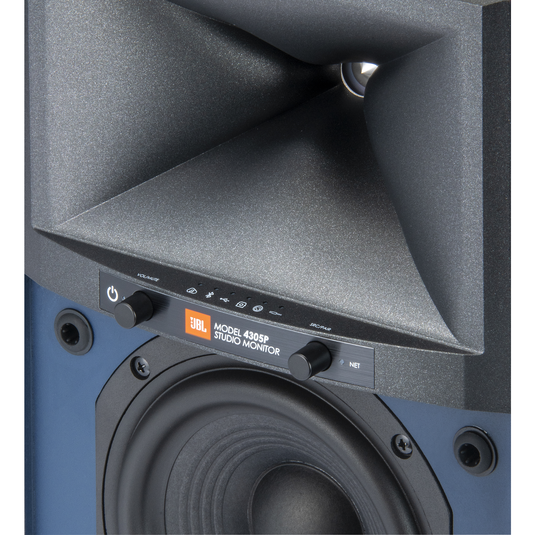

Sound Controls

Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)

Wireless Inputs

WiFi streaming, Bluetooth 5.1

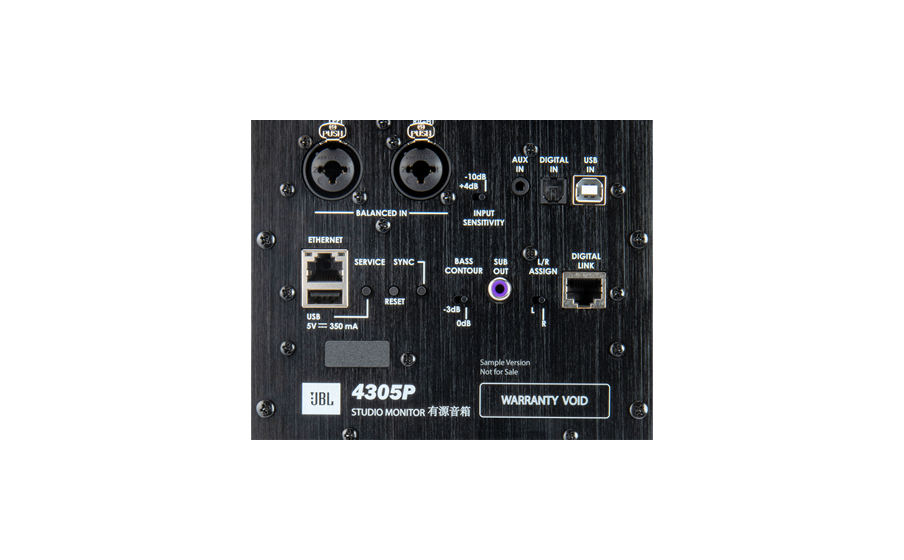

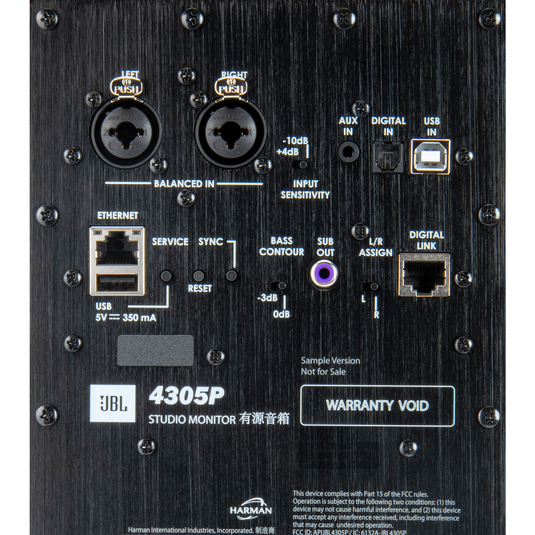

Wired Inputs

Analog - XLR/¼" Combo and 3.5mm stereo, Digital - Asynchronous USB-B and Toslink/Optical

Wired Inputs, Digital

Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH)

Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHzSPDIF - Up to 192kHzBluetooth - Up to 48kHz

Music Formats Supported (Local Media)

AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA

Subwoofer Output

Autosensing w/ Auto-engage of 80Hz High Pass Filter

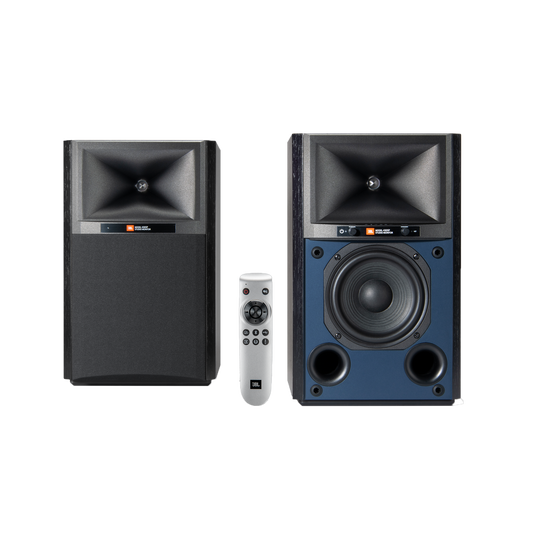

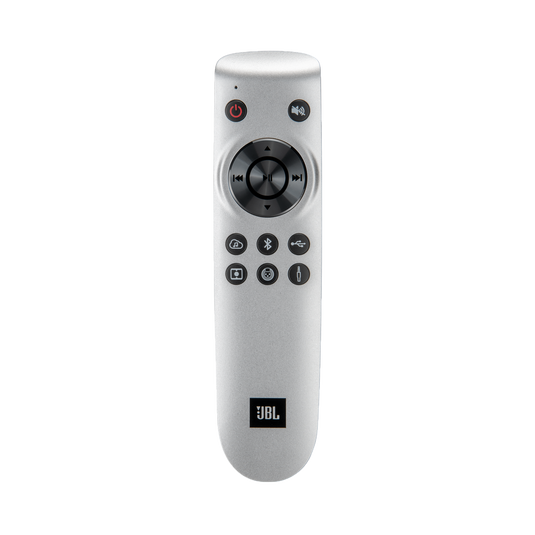

Remote Control Type

BTLE Wireless

Bluetooth Audio

Version 5.1, Profiles - SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Bluetooth Profiles

SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Enclosure

Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, White Aspen, Furniture-Grade Wood Veneer

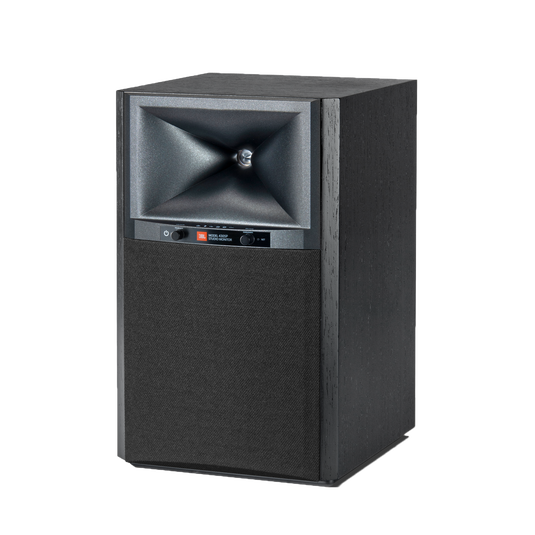

Grille

Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), White(with Matte White Cabinet) Acoustically Transparent Cloth Grille

Net Speaker Dimensions with grille

13.2” H x 8.3” W x 8.8” D (336mm x 210mm x 223.3mm)

Net Speaker Weight

Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg)

Shipping Units of Measure

System Pairs

Gross Shipping Dimensions

23.5” L x 11.4” W x 18.0” H (597mm x 290mm x 458mm)

Gross Shipping Weight

36.5 lbs (16.6 kg)

AC Input Voltage

100 - 240 VAC (+/-10%), 50/60Hz
