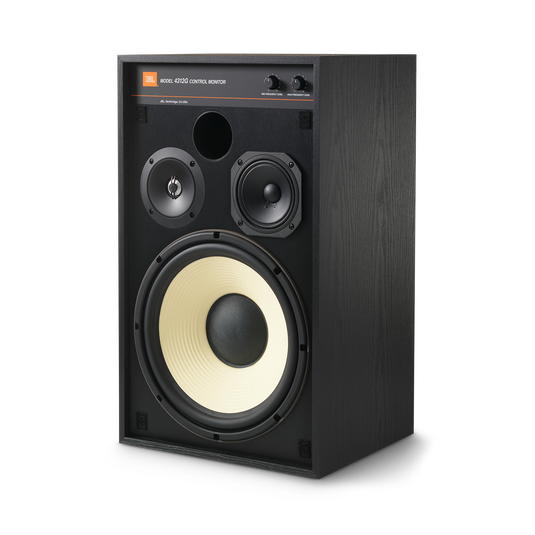

- 1-inch Magnesium-Aluminum alloy dome tweeter mated to acoustic lens waveguide.
- 12-inch (300mm) cast-frame, white pure-pulp cone woofer with front-firing tuned port.
- 5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.

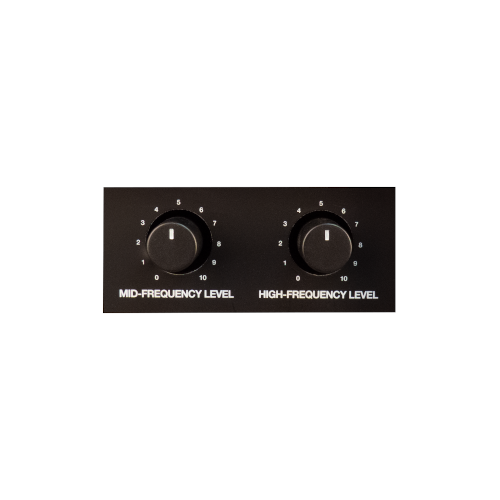

- High-frequency and mid-frequency level attenuators.

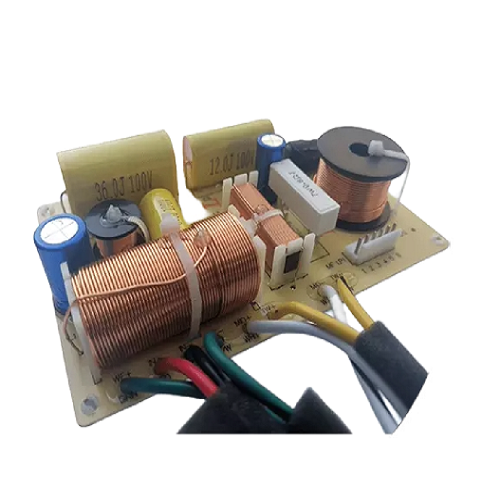

- Advanced crossover network.

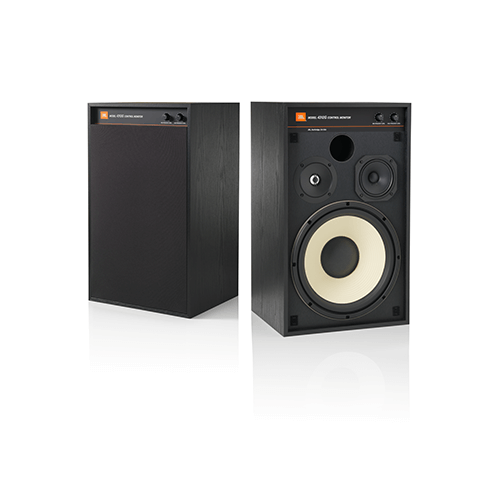

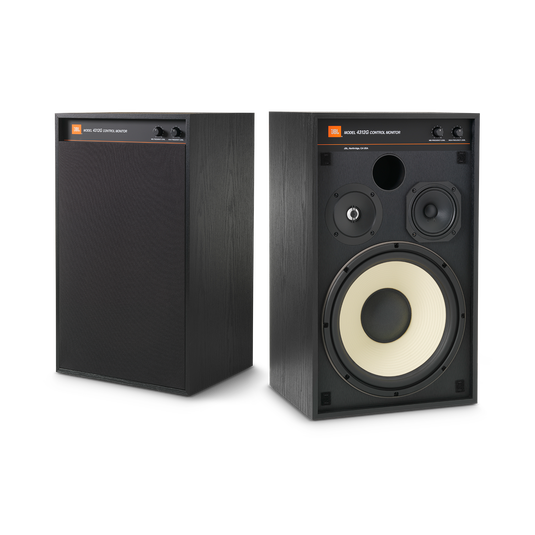

- Mirror-imaged stereo pairs.

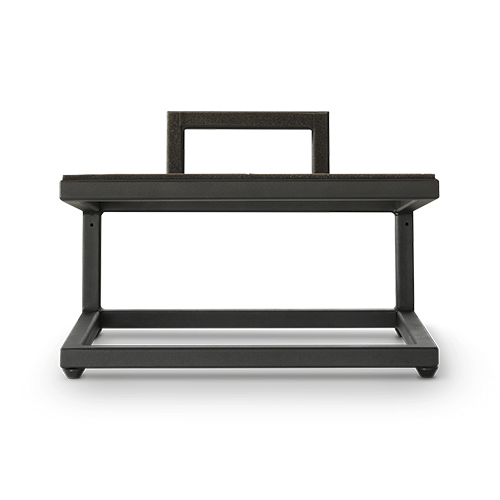

- Recommended JS-120 speaker stands (sold separately).
1-inch Magnesium-Aluminum alloy dome tweeter mated to acoustic lens waveguide.
12-inch (300mm) cast-frame, white pure-pulp cone woofer with front-firing tuned port.
5.25-inch (130mm) polymer-coated pure-pulp cone midrange driver.
Features
High-frequency and mid-frequency level attenuators.
Advanced crossover network.
Mirror-imaged stereo pairs.
Recommended JS-120 speaker stands (sold separately).
Specs & Downloads
Item#: JBL4312GBLKAM
EAN: 6925281948107

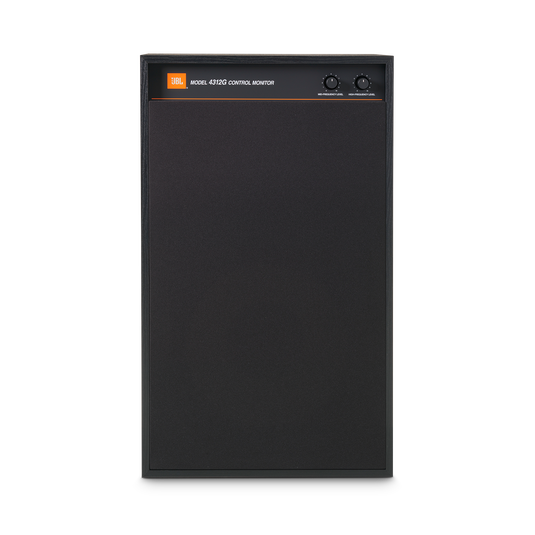

JBL 4312G

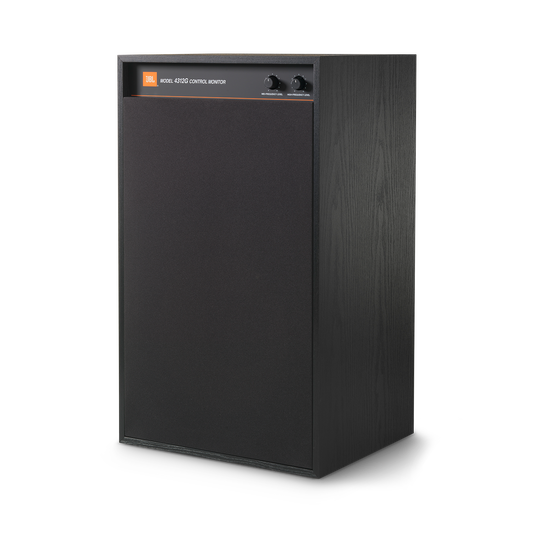

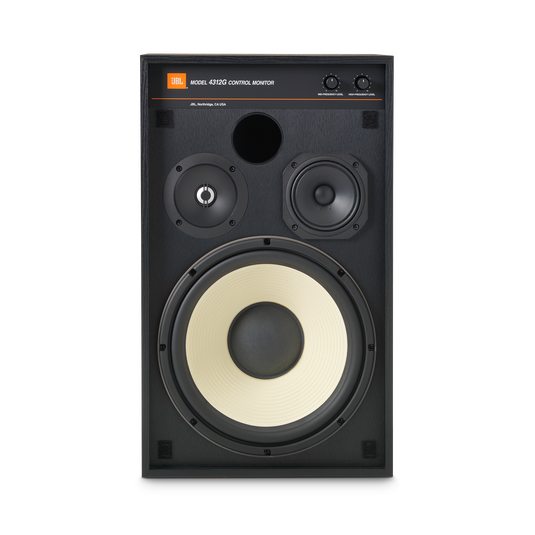

The JBL 4312G is a 3-way, high-performance compact studio monitor in the iconic JBL configuration dating back to 1968. The latest in line of top-notch bookshelf speakers inspired by the legendary Model 4310 Control Monitor, the 4312G delivers thundering bass, with dynamic and clear highs for a thoroughly enjoyable audio experience.
General Specifications
- Low Frequency Transducer
- 12-inch (300mm) pure pulp cone woofer
- Mid Frequency Transducer
- 5-inch (125mm) polymer-coated pure pulp cone
- High Frequency Transducer
- 1-inch (25mm) Magnesium/Aluminum alloy dome tweeter with waveguide
- Recommended Amplifier Power
- 10~200 Watts RMS
- Frequency Response
- (-6dB) 44Hz~40kHz
- Sensitivity
- (2.83V@1m) 90dB
- Nominal Impedance
- 6 Ohm
- Crossover Frequencies
- 640Hz, 5kHz
- Enclosure Type
- Bass-reflex via front-firing port

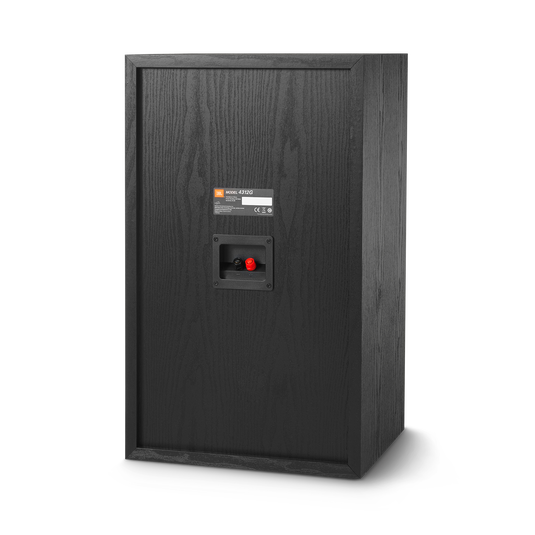

- Inputs
- Five-way Binding Posts
- Finishes
- White Woodgrain with Black Cloth Grille
- Dimensions (H x W x D)
- 23.5 x 14.25 x 12 inches (597 x 362 x 305mm)
- Weight
- 52.4 lbs (23.8kg) each
JS-120 Speaker Stands Quick Specs
431.01 KB
Owner's Manual (CN)
1.42 MB
Owner's Manual (DE)
1.23 MB
Owner's Manual (FR)
1.2 MB
Owner's Manual (JP)
1.32 MB
Owner's Manual (KO)
1.34 MB
Owner's Manual (RU)
1.27 MB
Owner's Manual (ES)
1.27 MB
Declaration of Conformity
180.85 KB
Spec Sheet (EN)
595.79 KB
Spec Sheet (EN)
427.2 KB
Owner's Manual (EN)
1.21 MB
Quick Specs (EN)
427.2 KB
