4329P Studio Monitor Powered Loudspeaker System

4329P Studio Monitor Powered Loudspeaker System

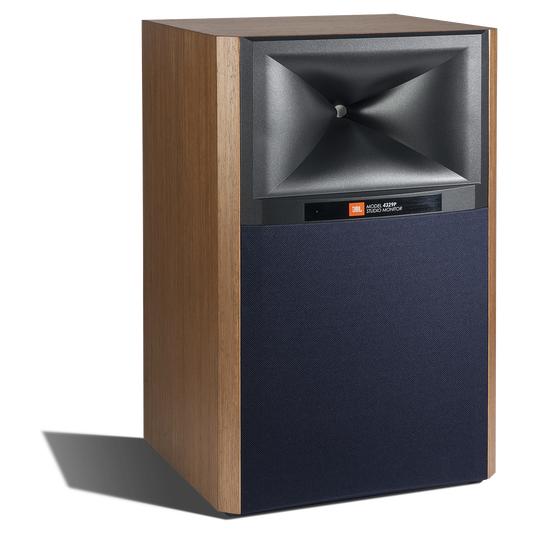

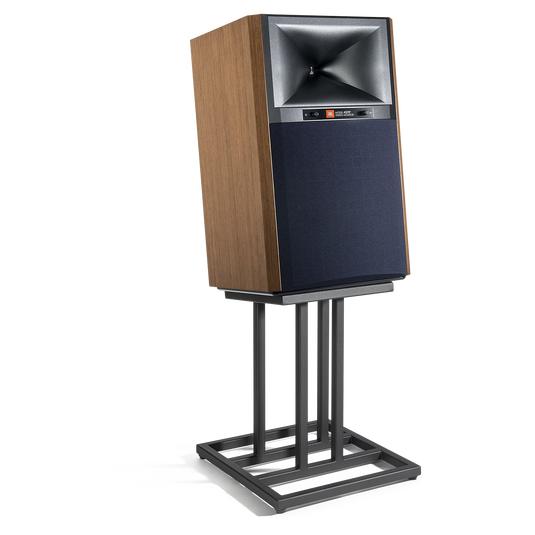

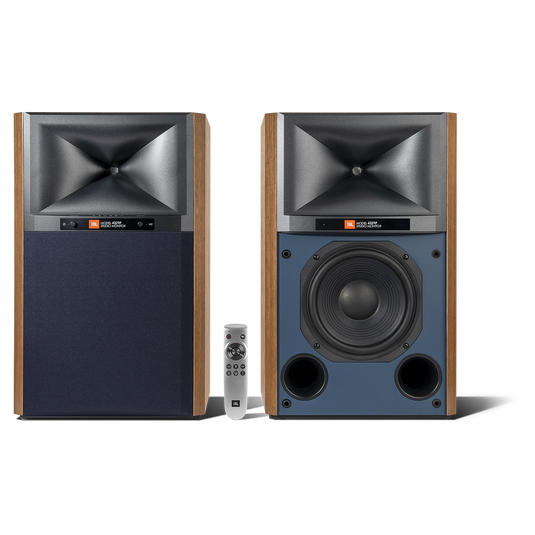

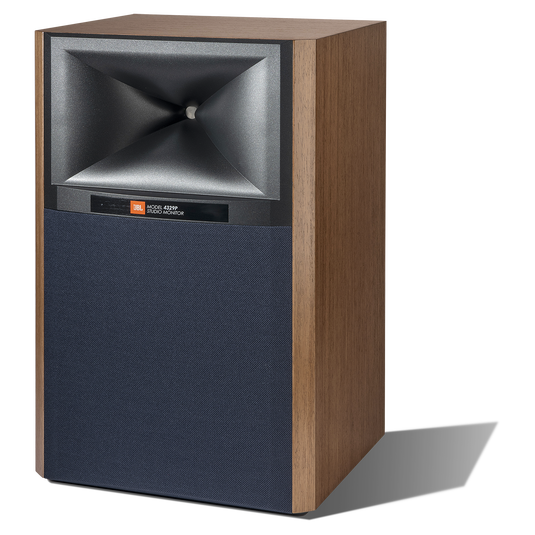

The JBL 4329P Studio Monitor Powered Loudspeaker is a completely self-contained amplified loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity opens up a world of possibilities for the music lover. Each speaker is powered by a 300-watt amplifier, delivering 250 watts of power to the woofer and 50 watts of power to the compression driver. Both accurately controlled by sophisticated DSP processing assuring each driver blends seamlessly creating a dynamic and immersive listening experience. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth 5.3 aptX Adaptive audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4329P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono inputs for use with balanced or unbalanced signals.

General Specifications

Type

Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity

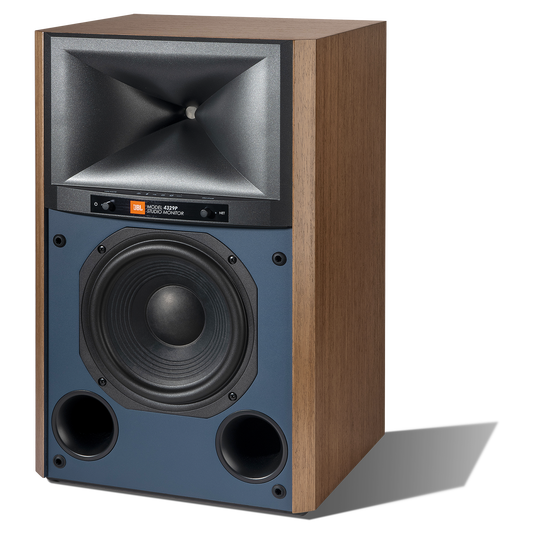

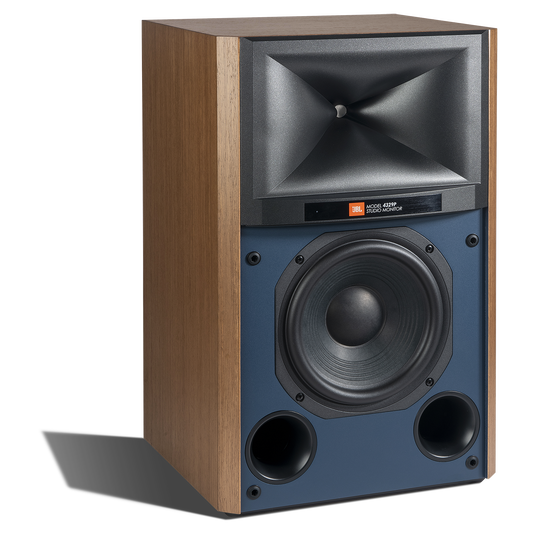

Low Frequency Drivers

JW200P-4, 8-inch (200mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

High Frequency Drivers

2409H, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns

Amplifier Power

600W Class D System Power, 300W RMS per Speaker, (50W per HF Compression Driver + 250W per LF Woofer)

Audio Resolution

Up to 24-bit, 192 kHz (Digital Link connection between spks)

Audio Resolution

Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response

28 Hz - 25 kHz (-6 dB)

Crossover Frequency

1,675 Hz

Dispersion

90° Horizontal x 60° Vertical (2kHz to 15kHz)

Sound Controls

Sound Controls Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)

Front Panel

Wireless Inputs

WiFi streaming, Bluetooth 5.3

Wired Inputs (Analog)

XLR/¼" Combo and 3.5mm stereo

Wired Inputs (Digital)

Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH)

Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF - Up to 192kHz USB-B - PCM 2-channel, up to 192kHz Bluetooth - Up to 48kHz, aptX Adaptive up to 96kHz

Music Formats Supported (Local Media)

AAC / AIFF / ALAC / DSD64 (to PCM) / FLAC / MP3 / MP4 / MQA / OGG / WAV / WMA

Subwoofer Output

Autosensing w/ Auto-engage of 80Hz High Pass Filter

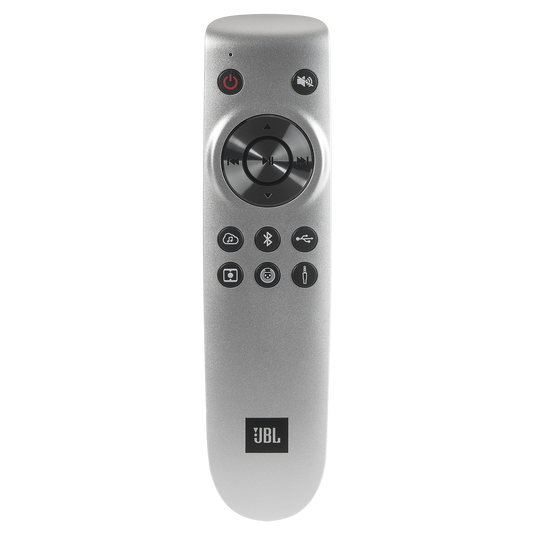

Remote Control Type

BTLE Wireless

Bluetooth Audio Version

5.3

Bluetooth Audio Profiles

SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Enclosure

Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, or White Aspen, Furniture-Grade Wood Veneer

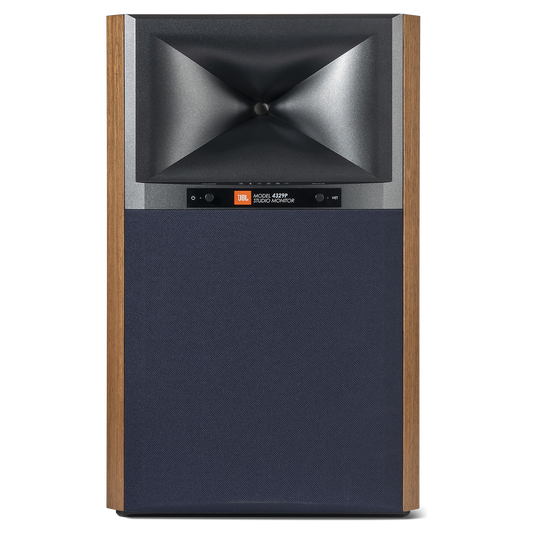

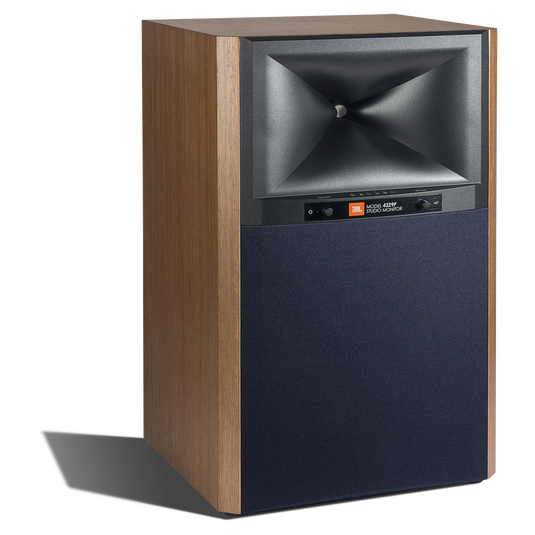

Grille

Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), or White (with Matte White Cabinet) Acoustically Transparent Cloth Grille

Net Speaker Dimensions with grille

20.3” H x12.6” W x 12.7” D (515.5mm x 320mm x 322.4mm)

Net Speaker Weight

Primary - 34.5 lbs (15.7kg), Secondary - 34.3 lbs (15.6kg)

Shipping Units of Measure

System Pairs

Gross Shipping Dimensions

25.59” H x 30.31” W x 16.46” D (650mm x770mm x 418mm)

Gross Shipping Weight

79.4 lbs (36.1 kg)

AC Input Voltage

100 - 240 VAC (+/-10%), 50/60Hz
