JBL Stage A130

JBL A130

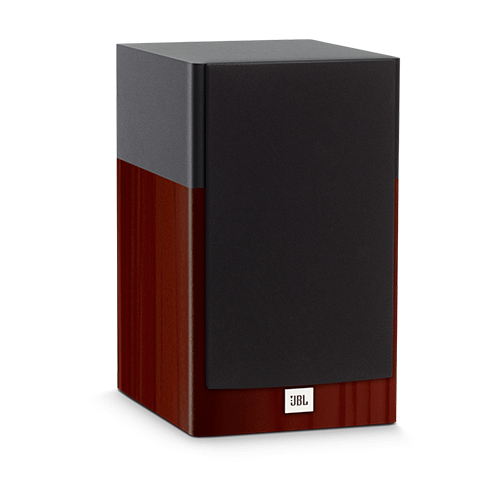

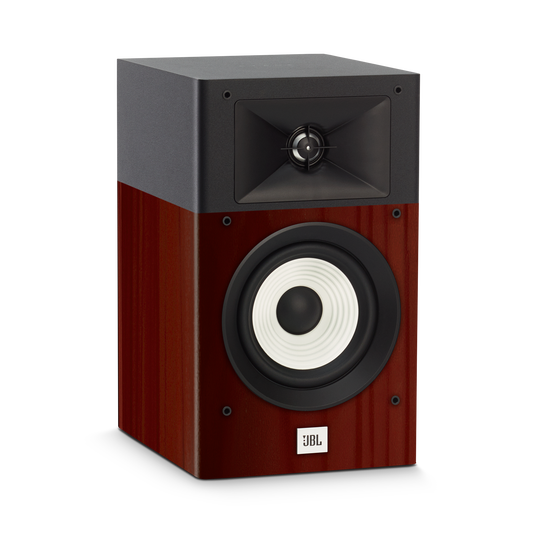

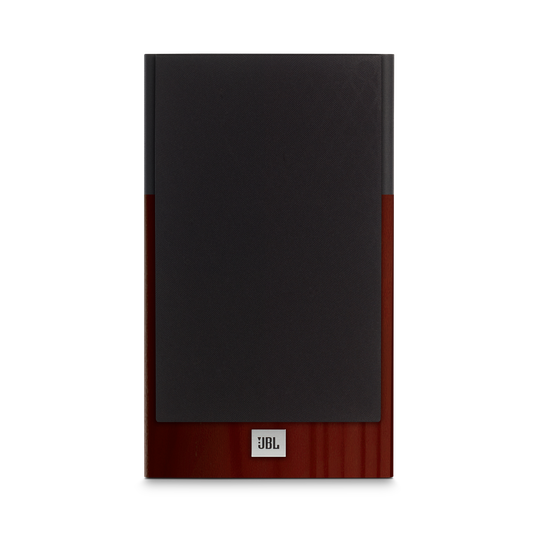

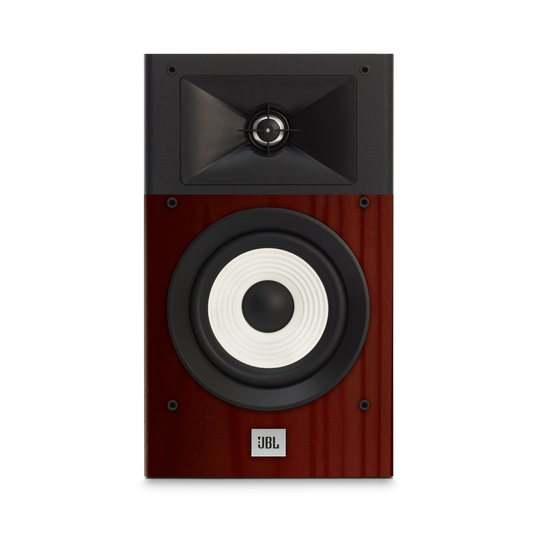

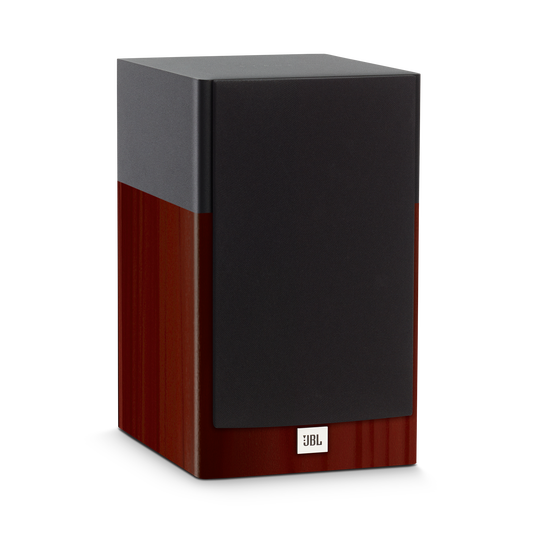

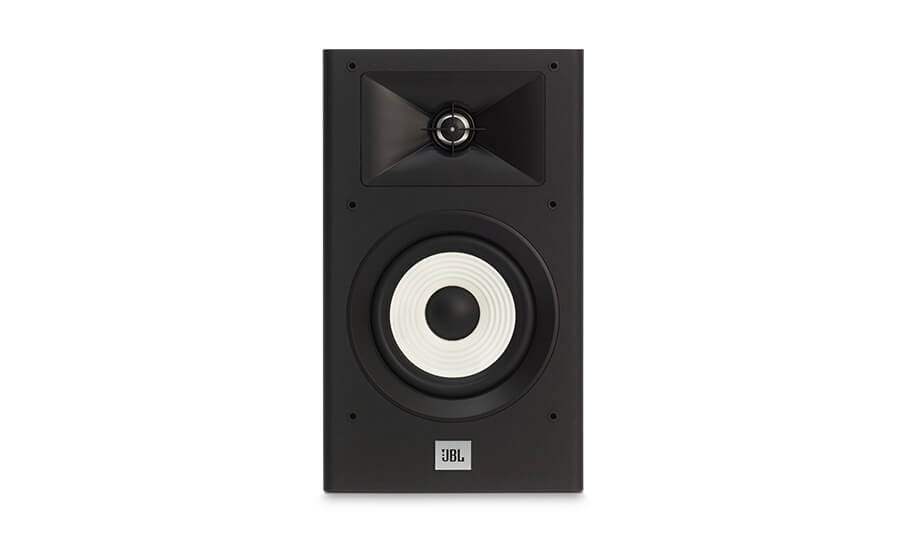

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A130 is the 5.25-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 5.25-inch (133mm) Polycellulose cone woofers for signature JBL bass.

General Specifications

2 way, 5.25" woofer, 1" aluminum tweeter bookshelf loudspeakers

5.25" (133mm) Polycellulose Low-Frequency Woofer

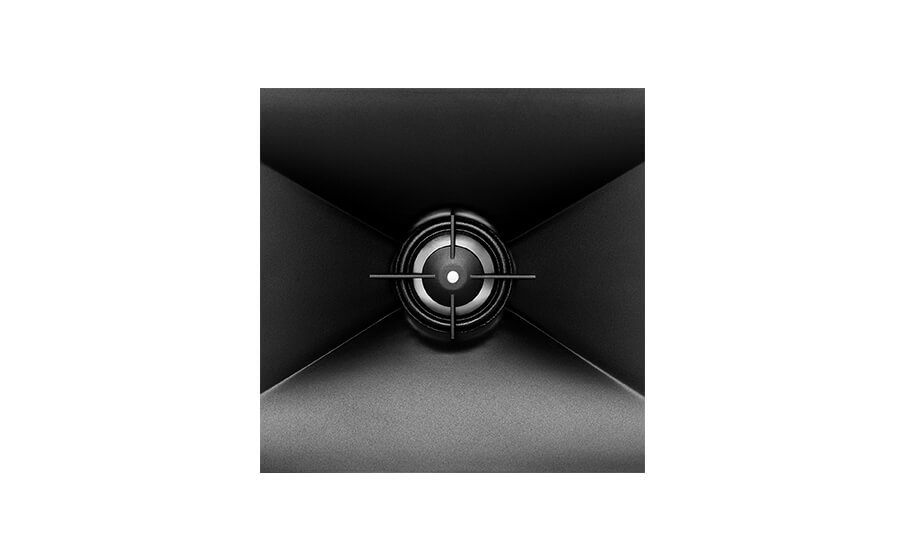

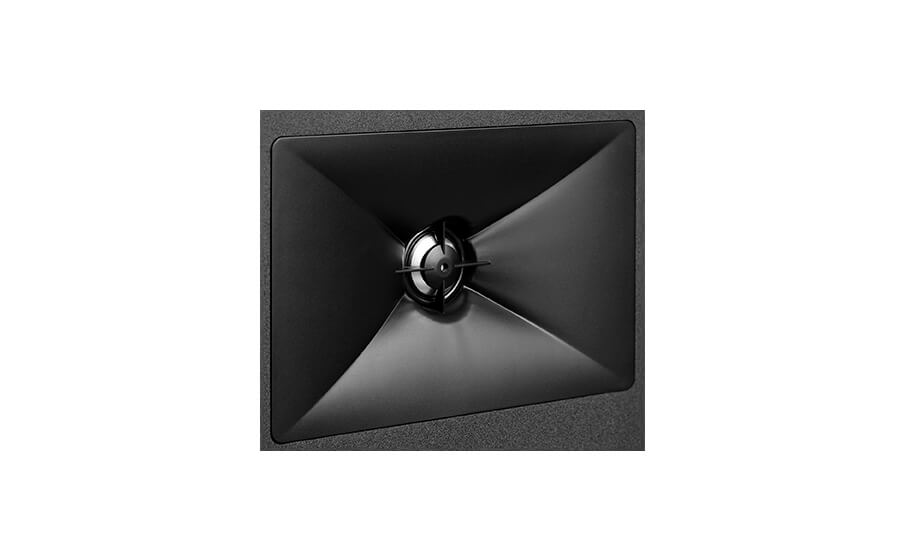

New High Definition Imaging (HDI) Waveguide

1” (25mm) Aluminum Dome Tweeter

Recommended Amplifier Power

20 – 125W

Frequency Response

55Hz – 40kHz

Sensitivity

86dB @ 1M, 2.83V

Nominal Impedance

6 Ohms

Crossover Frequencies

3.2kHz

Enclosure Type

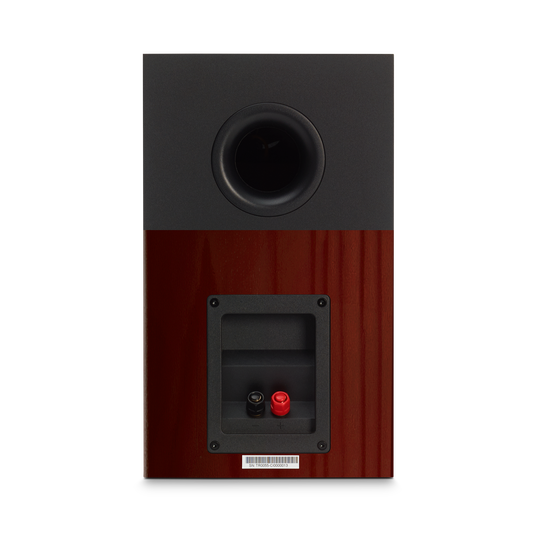

Bass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)

190 x 230 x 321mm

Weight (each)

12.02 lbs (5.45kg)

2 x JBL Stage A130 Bookshelf Loudspeaker

8 x Feet Pads

1 x Owner’s Manual

1 x Warranty Card
