Arena 8IW

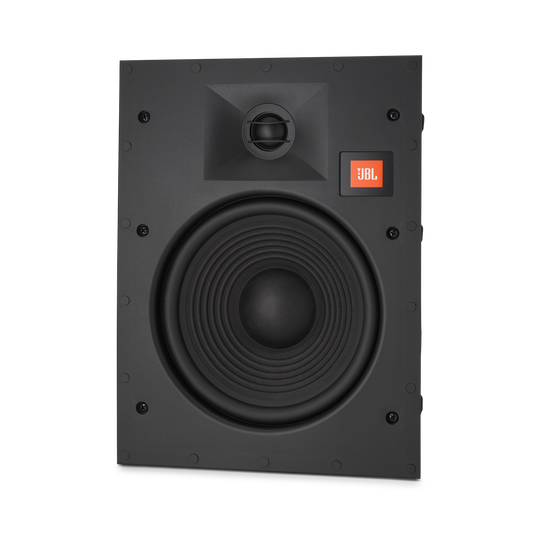

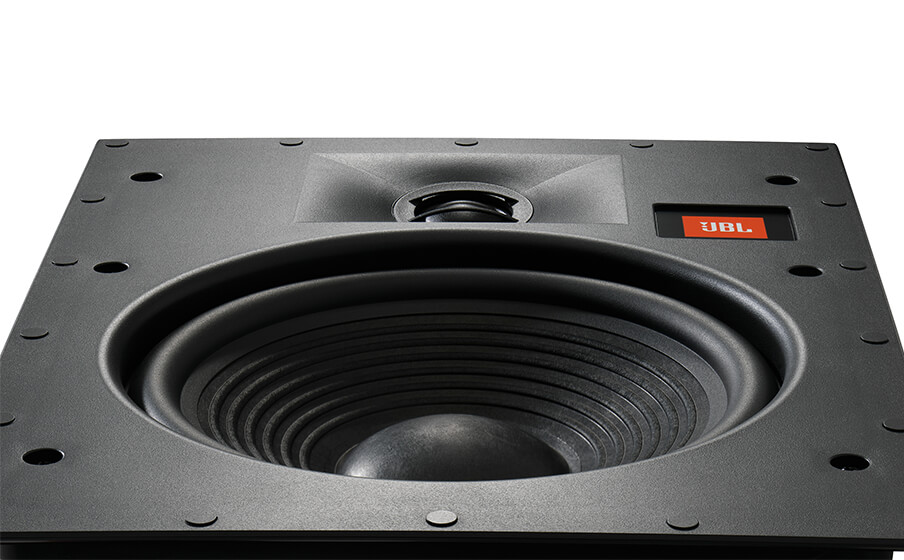

The JBL Arena 8IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. An 8-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.

each
  • Sound Inspired by JBL's lengendary M2 Master Reference Monitor

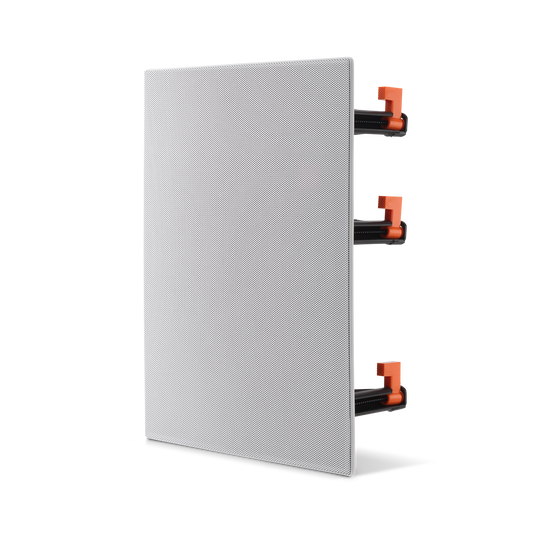

  • Paintable, nearly invisible zero-bezel magnetic grill

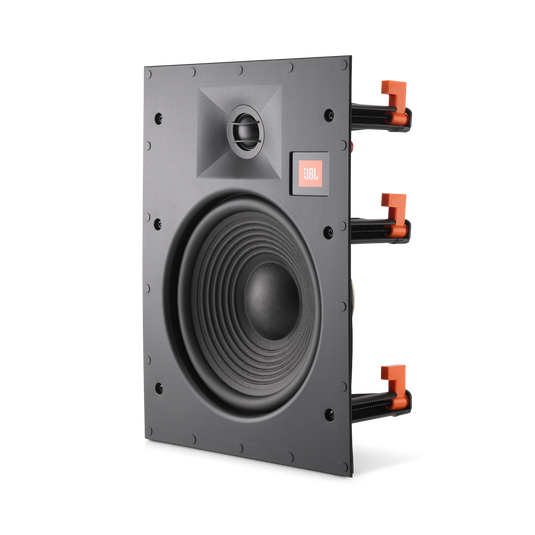

  • Superior XL-2 installation bracket
Where to Buy
Arena 8IW
each
Arena 8IW Sound Inspired by JBLs lengendary M2 Master Reference Monitor - Image

Sound Inspired by JBL's lengendary M2 Master Reference Monitor

Arena 8IW Paintable, nearly invisible zero-bezel magnetic grill - Image

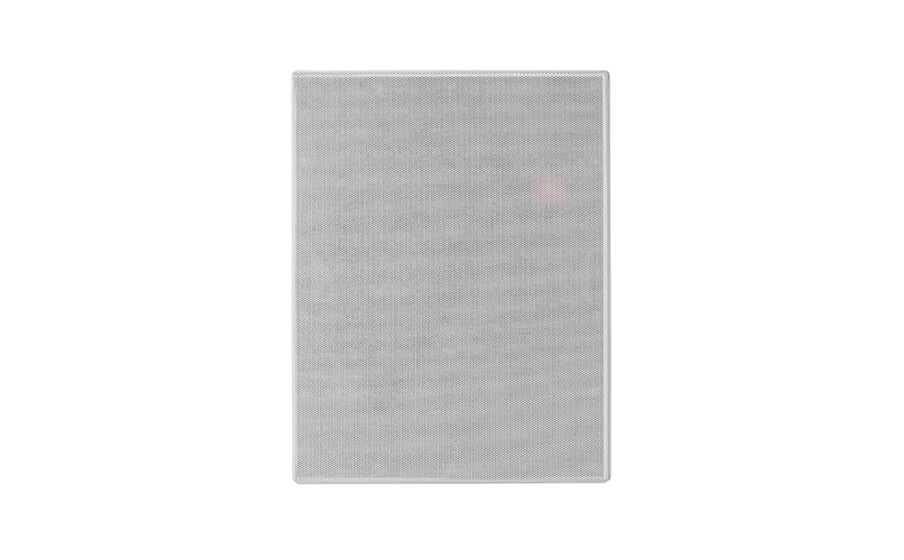

Paintable, nearly invisible zero-bezel magnetic grill

Arena 8IW Superior XL-2 installation bracket - Image

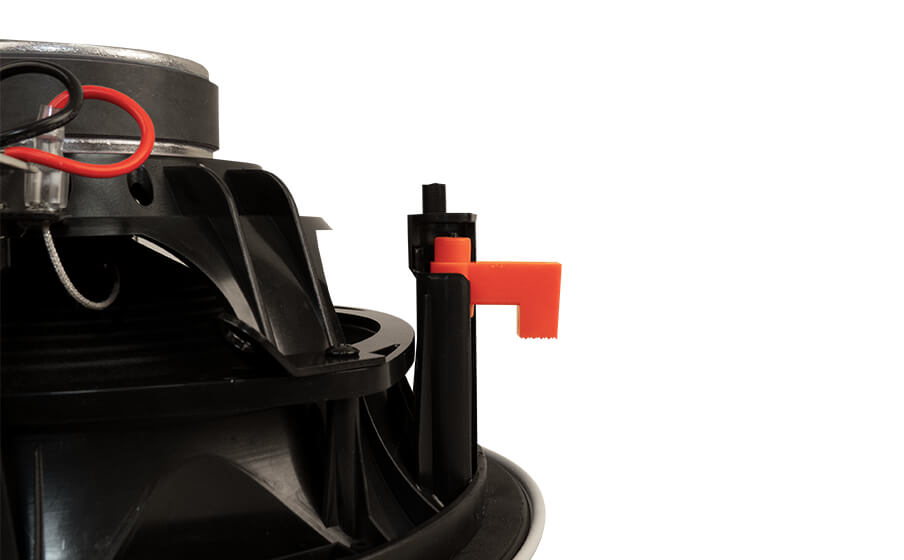

Superior XL-2 installation bracket

Features

Dealer Locator

Dealer Locator

JBL Specialty Audio can be purchased through authorized dealer with the experience and expertise to help you find the right products for your home audio needs.

Learn More

Specs & Downloads

Item#: ARENA8IWAM

Arena 8IW

The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.

General Specifications

Mounting Depth
3-13/16" (97mm)
Compatible Wall Material Thickness
0.5" – 2.0" (130mm – 250mm)
Shipping Units of Measure
Each
Warranty
5 Years
Pre-Construction Bracket Part number
PCK8
Back Box Part Number
FBB8

Audio Specifications

Impedance
8 ohms
Recommended Amplifier Power
100W
Frequency Response
30Hz - 20kHz
Loudspeaker Sensitivity:88dB 2.83V @ 1m
Low Frequency Driver Size and Material
8" (203mm) Polycellulose Woofer
High Frequency Driver Size and Material
1" (25mm) Silk-Dome Tweeter

Dimensions

Cutout Dimensions
Cutout Dimensions 11-15/16" x 8-15/16" (303mm x 227mm)
(H x W)
Grille Finished Dimensions
Grille Finished Dimensions 13" x 10" (33cm x 254mm)
(H x W)
Main Unit
Magnetic Grill
Owners Manual
Printed Mounting Template
Warranty Card
Owners Manual (Multilingual) 45.07 MB JBL Passive Speaker Warranty Card 48.95 KB Spec Sheet (English) 1.73 MB
