B-6ICDT

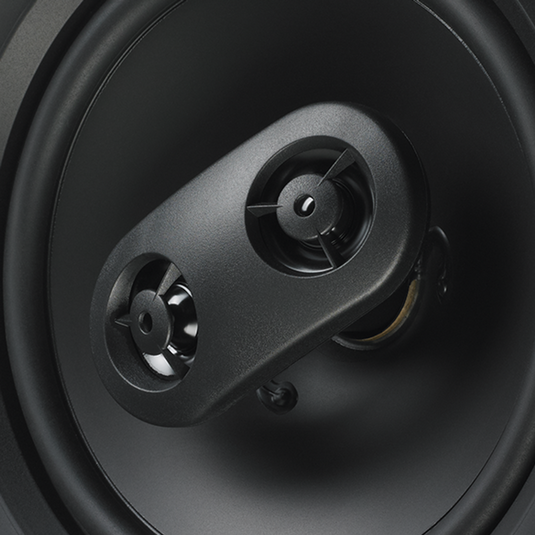

The JBL B-6ICDT is a 2-way in-ceiling loudspeaker with dual 0.5-inch polymer tweeters and a 6.5-inch Poly cone woofer. The dual tweeter design delivers stereo sound from a single location. A zero-bezel magnetically attached grille allows the loudspeaker to blend into any décor for a clean, modern design. The B Series models are easy to install and provide great JBL sound throughout your home.

each
  • 0.5-inch Polymer tweeter
  • 6.5-inch Poly cone woofer
  • Zero Bezel Grille
  • Easy Installation
Where to Buy
B-6ICDT
each

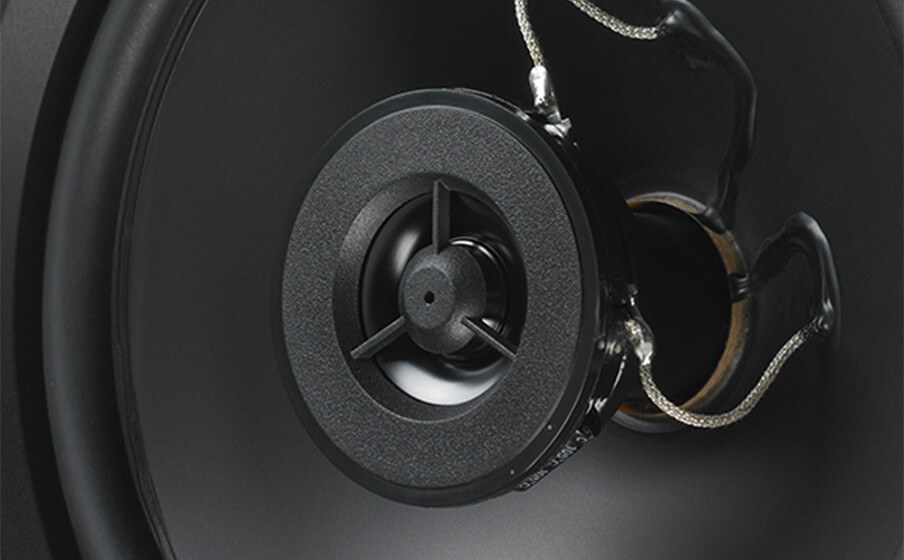

B-6ICDT 0.5-inch Polymer tweeter - Image

0.5-inch Polymer tweeter

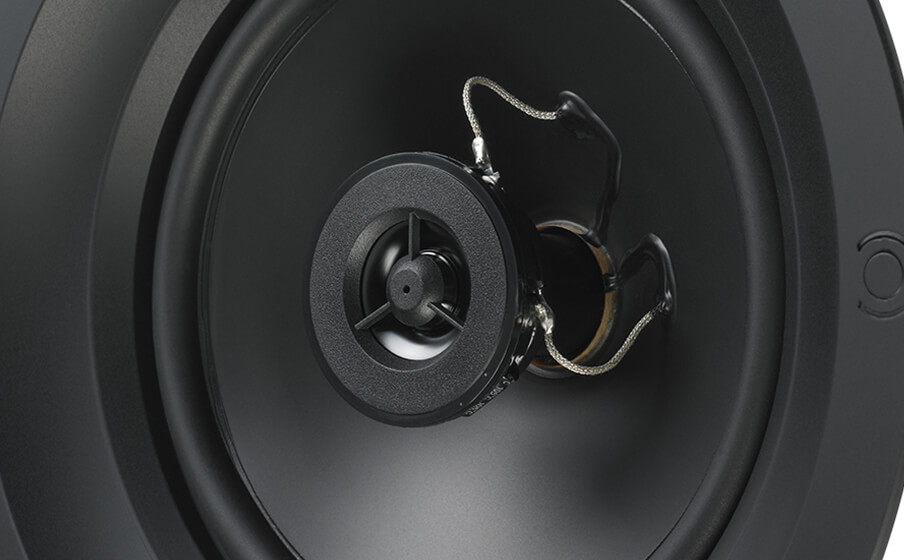

B-6ICDT 6.5-inch Poly cone woofer - Image

6.5-inch Poly cone woofer

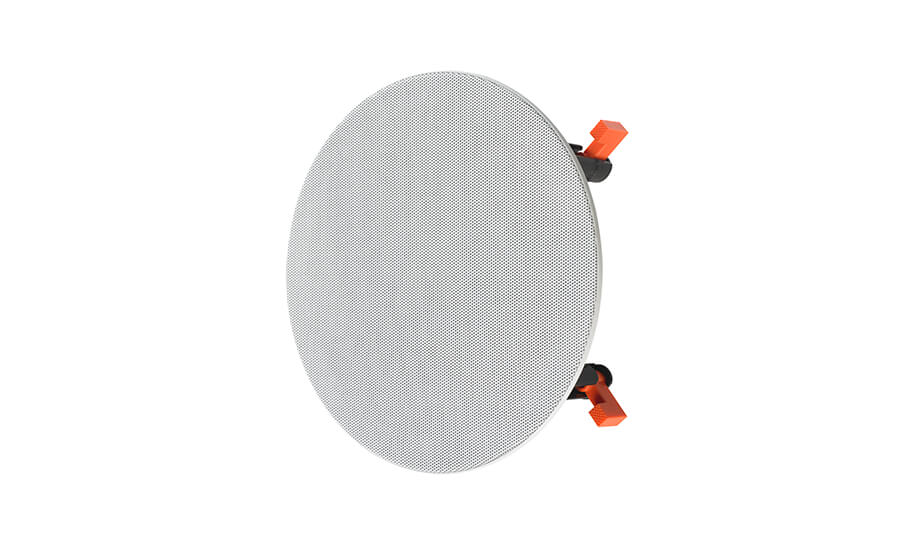

B-6ICDT Zero Bezel Grille - Image

Zero Bezel Grille

Features

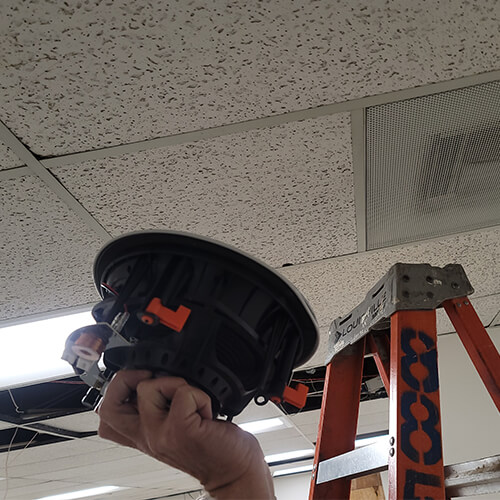

B-6ICDT Easy Installation - Image

Easy Installation

Specs & Downloads

Item#: JBLB6ICDTWHTAM

JBL B-6ICDT

Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.

General Specifications

Nominal Impedance
4 ohm
Power (RMS/Peak)
35/140W
Frequency Response
50kHz – 20kHz
Loudspeaker Sensitivity
90dB
Woofer
6.5" (165mm) Poly woofer
Tweeter
0.5" (13mm) Polymer Tweeter
Cutout Dimensions
7.9” (202mm)
Grille Finished Dimensions
9.1” (232mm)
Mounting Depth
3.6" (92mm)
Main Unit
Grille
Owner’s Manual
Wall cut-out template
Warranty Card
Owners Manual (Multilingual) 10.6 MB JBL Passive Speaker Warranty Card 48.95 KB Spec Sheet (English) 1.18 MB
