B-6IW

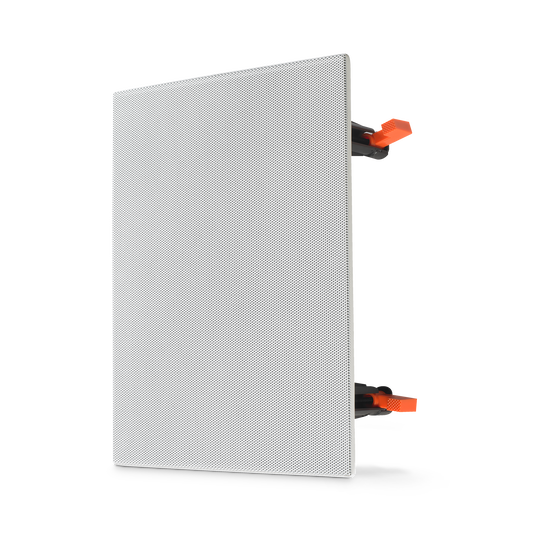

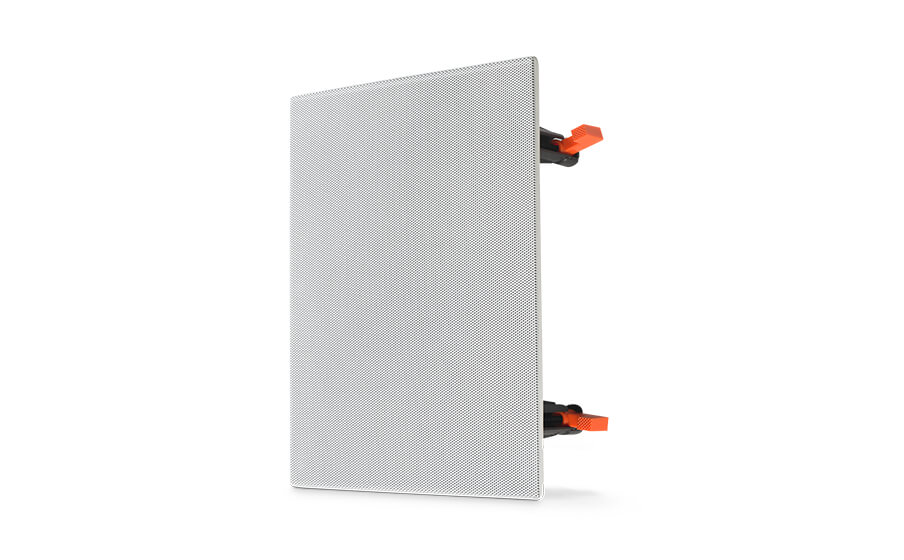

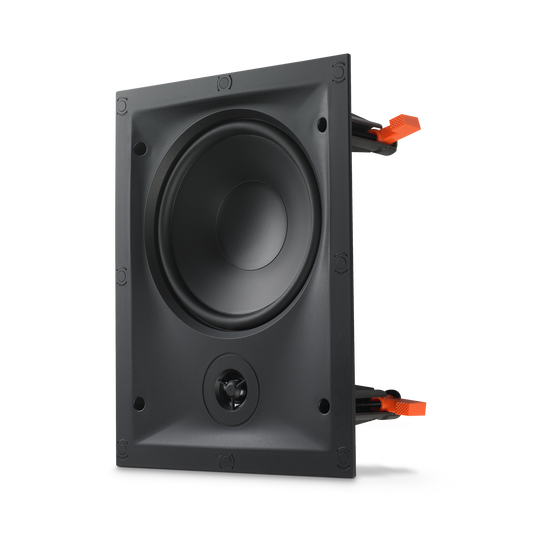

JBL B-6IW

Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.

General Specifications

Nominal Impedance

4 ohm

Power (RMS/Peak)

35/150W

Frequency Response

50Hz – 20kHz

Loudspeaker Sensitivity

91dB

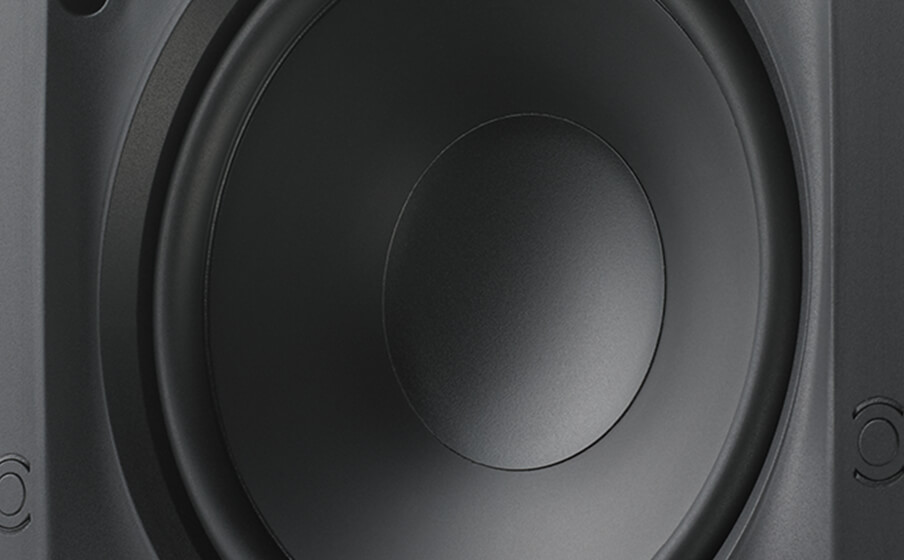

Woofer

6.5" (165mm) Poly woofer

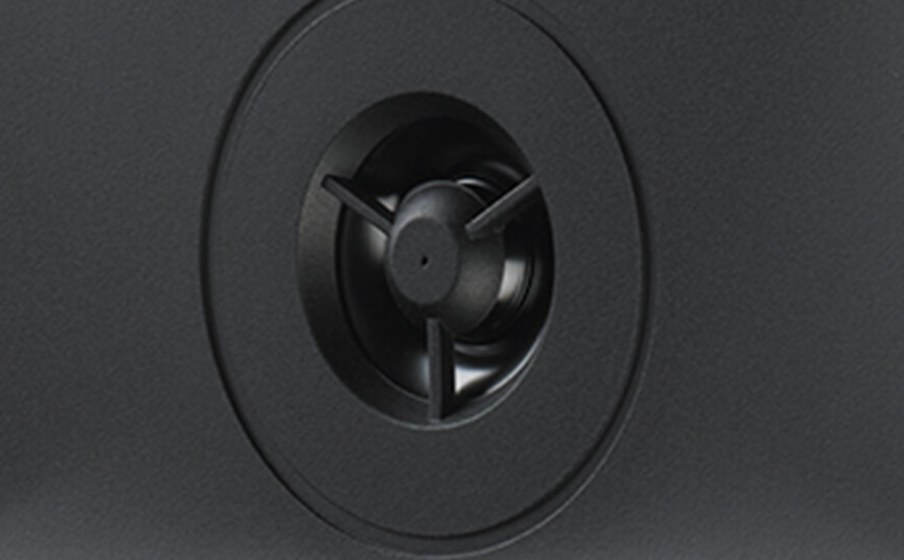

Tweeter

0.5" (13mm) Polymer Tweeter

Cutout Dimensions

9.7” x 7.2” (246mm x 182mm)

Grille Finished Dimensions

8.4” x 10.9” (213mm x 277mm)

Mounting Depth

3.3" (84mm)

Main Unit

Grille

Owner’s Manual

Wall cut-out template

Warranty Card
