B-8IW

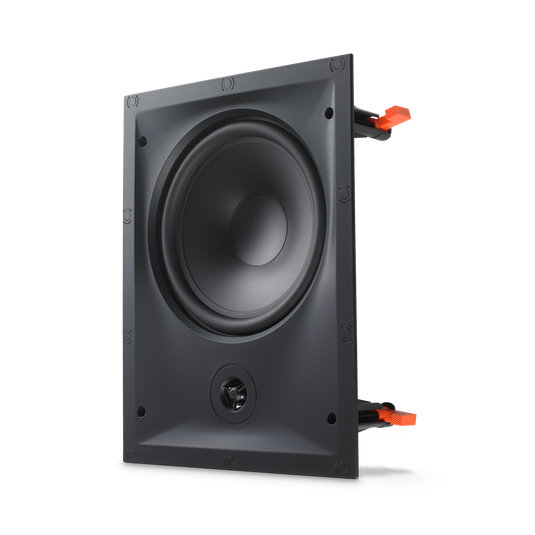

JBL B-8IW

Designed to blend into your décor and crafted for wide sound dispersion, the JBL B-Series in-ceiling and in-wall loudspeakers feature a modern design, are easy to install and deliver JBL Signature sound throughout your home.

General Specifications

Nominal Impedance

4 ohm

Power (RMS/Peak)

45/160W

Frequency Response

45Hz – 20kHz

Loudspeaker Sensitivity

91dB

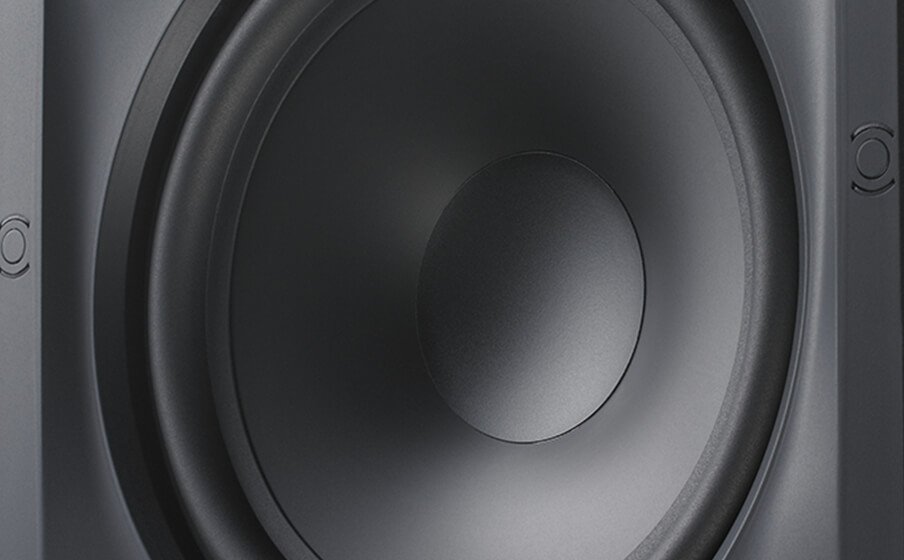

Woofer

8" (203mm) Poly woofer

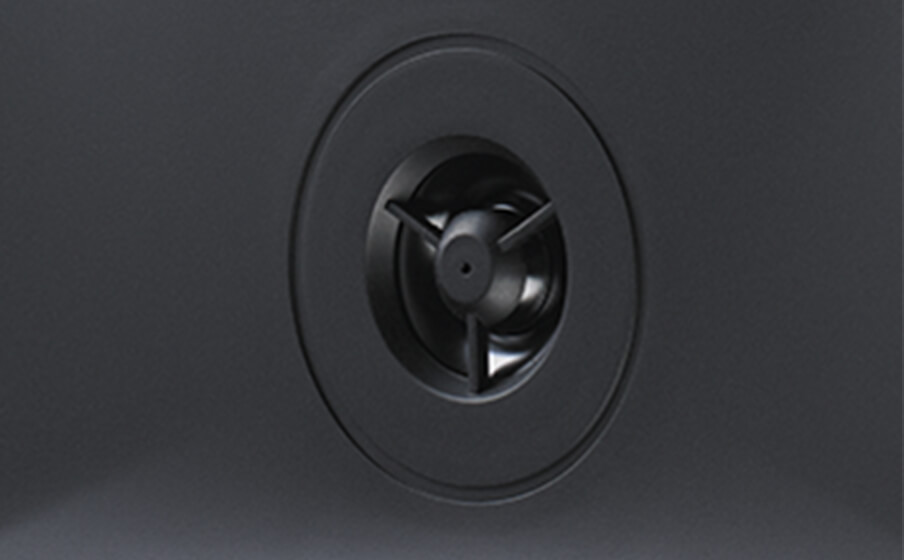

Tweeter

0.5" (13mm) Polymer Tweeter

Cutout Dimensions

11.7” x 8.8” (299mm x 223mm)

Grille Finished Dimensions

10” x 12.9” (255mm x 329mm)

Mounting Depth

3.7" (96mm)

Main Unit

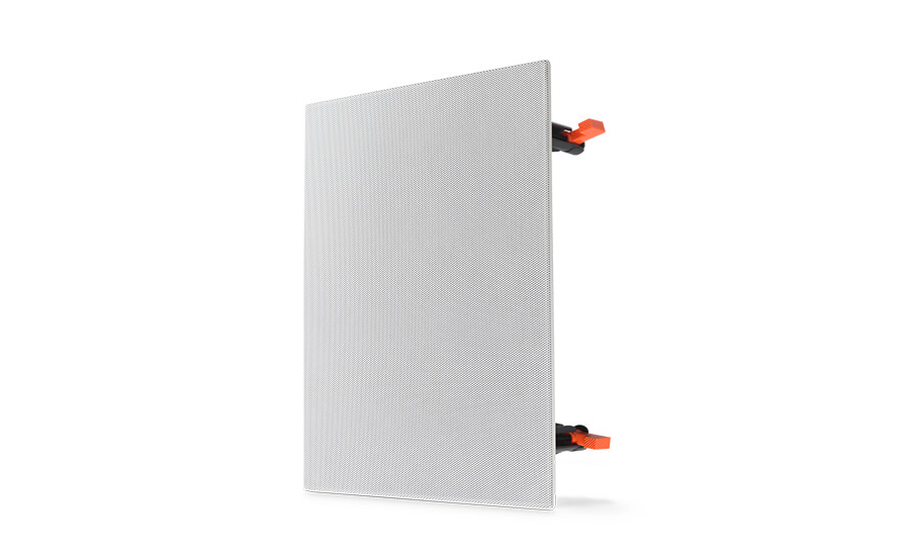

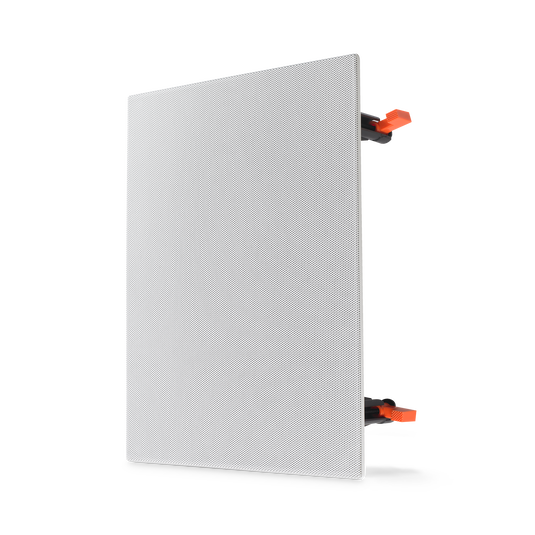

Grille

Owner’s Manual

Wall cut-out template

Warranty Card
