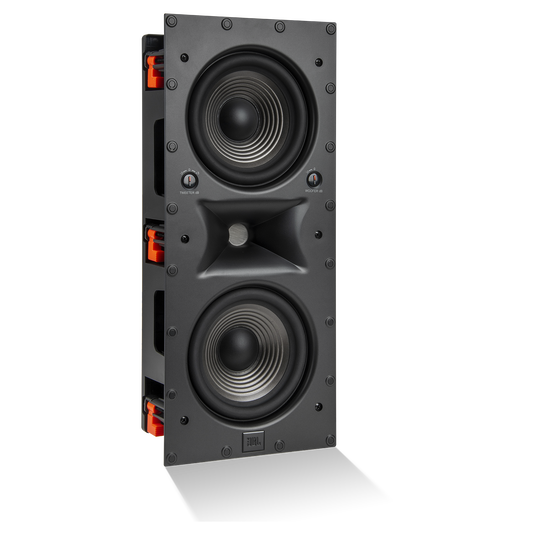

Studio 88lCR

Dual 8" (203mm) 2-way In-Wall Loudspeaker

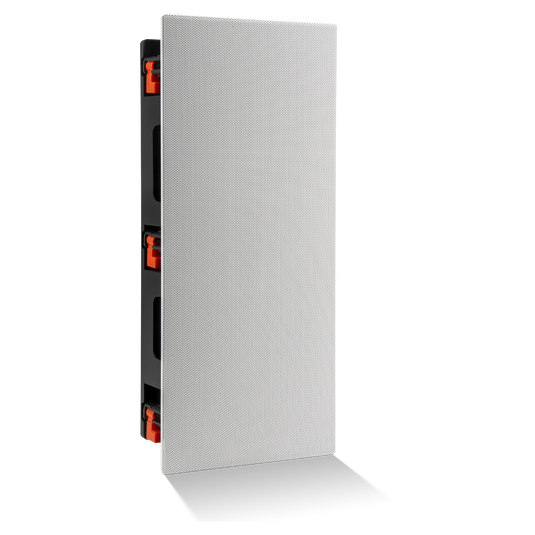

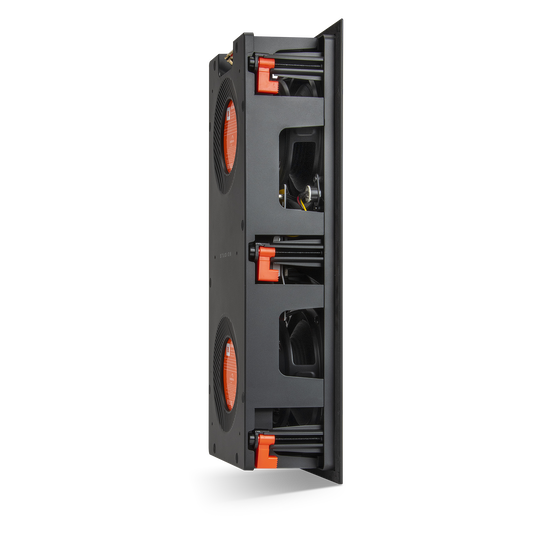

When more impact across the front channels is needed the Studio 88LCR utilizes dual 8" (203mm) Polyplas® woofers and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 88LCR visually discrete so they blend into the walls seamlessly.

General Specifications

High Frequency Transducer

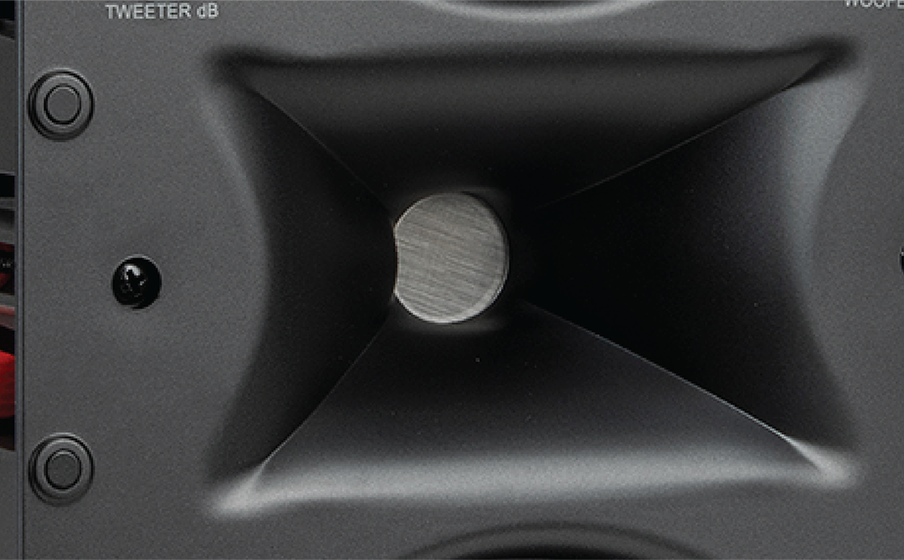

1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide

Low Frequency Transducer

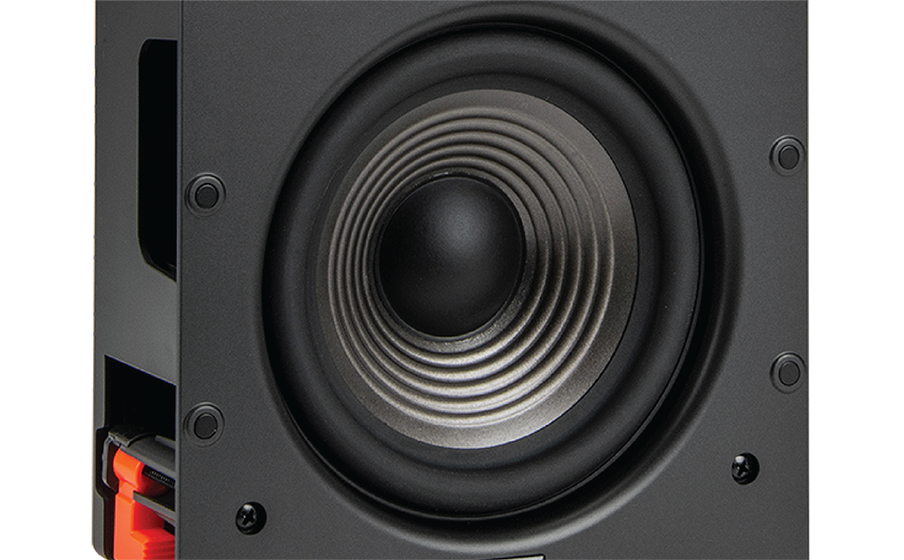

Dual 8" (203mm) Polyplas® woofer

Nominal Impedance

6-Ohm

Sensitivity (2.83V@1m)

96dB

Power Handling

120W RMS (500W Dynamic)

Recommended Amplifier Power

50 - 175W

Frequency Response

47Hz - 20kHz

Crossover Frequency

2.5kHz

Grille Dimensions (HxW)

9.9" x 21.5" (251mm x 547mm)

Cutout Dimensions (HxW)

8.7" x 20.4" (221mm x 517mm)

Mounting Depth

3.74in (95mm)
