- 1-inch Edge-Driven Pure Beryllium dome tweeter
- Carbon Fiber Composite Cone Body And Dustcap woofer
- Nomex Spider Woofer
- Neodymium Magnet Motor
- Die-Cast Aluminium Basket
- Bi-Amp Capable Precision Outboard Crossover network
- Magnetic adsorption design
Color: Chrome
Features

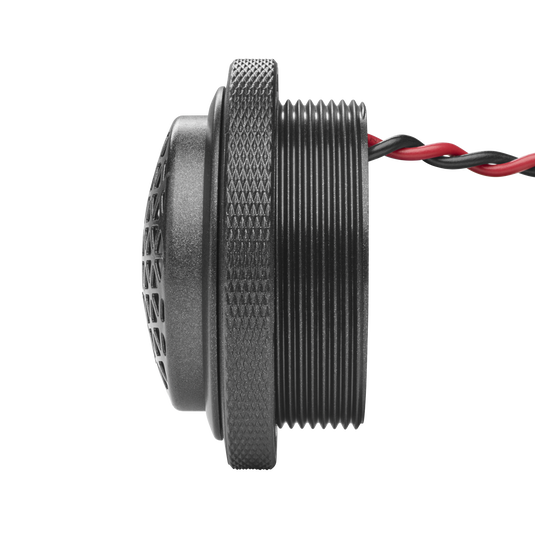

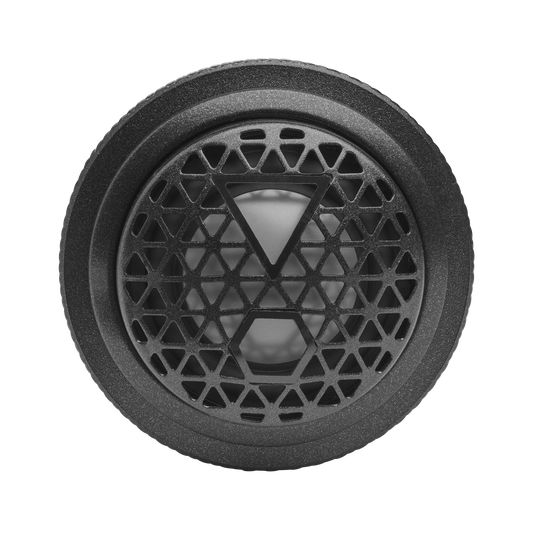

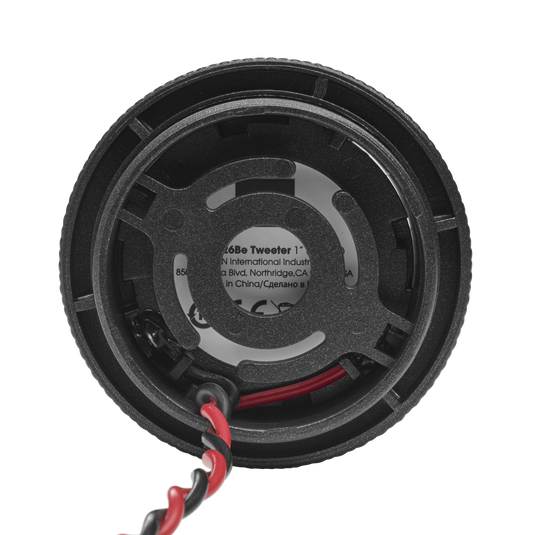

1-inch Edge-Driven Pure Beryllium dome tweeter
Beryllium offers 4.5 times the stiffness and three times more damping than more commonly used Aluminum and Titanium diaphragms, delivering extended high-frequency performance out to 40kHz. This benefits the listener by virtually eliminating all harness in the audio band, delivering a smooth, precise and detailed performance, even at high output levels.

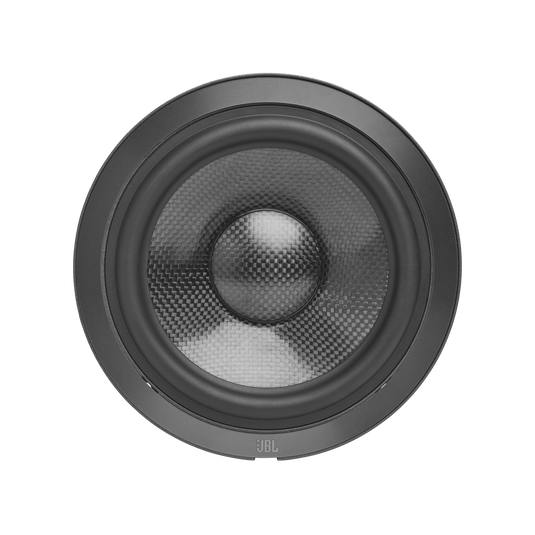

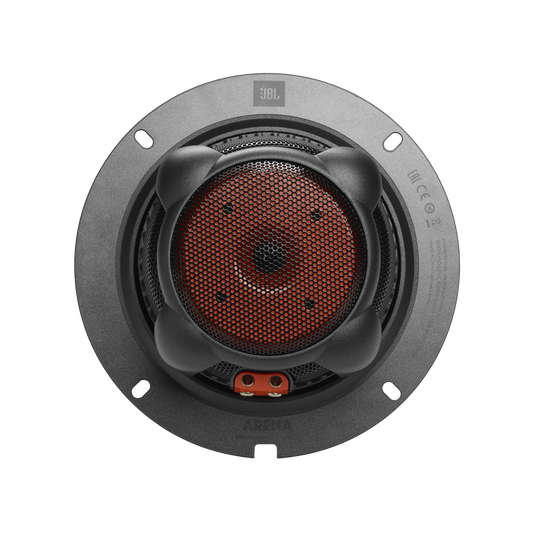

Carbon Fiber Composite Cone Body And Dustcap woofer
The ultra-rigid Carbon fiber dustcap and cone body minimize unwanted cone flexing, ensuring smooth frequency response.
Nomex Spider Woofer
Spider are specifically designed to ensure linear motion in both forward and rearward directions. This mnimizes distortion caused by the speaker's suspension.
Neodymium Magnet Motor
Provides high flux density, also allows more room for larger steel motor components to provide critical heatsink mass for the voice coil.

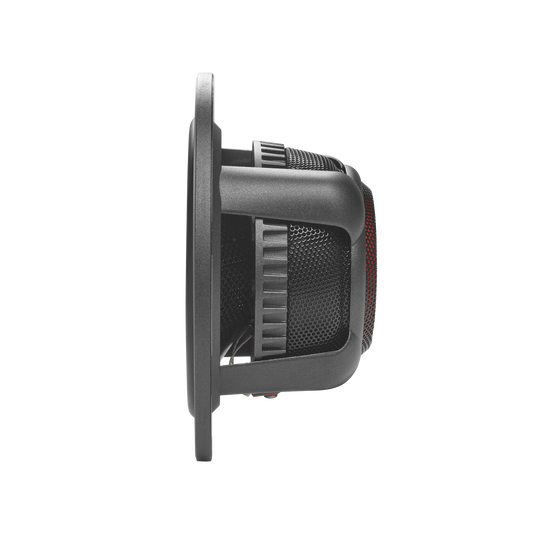

Die-Cast Aluminium Basket
Provides rigid support for the motor structure allowing for tighter tolerence thus yielding reduced distortion and unwanted acoustic anomolies

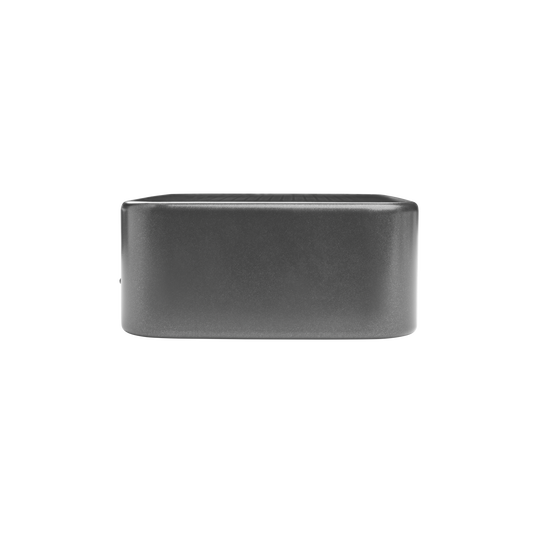

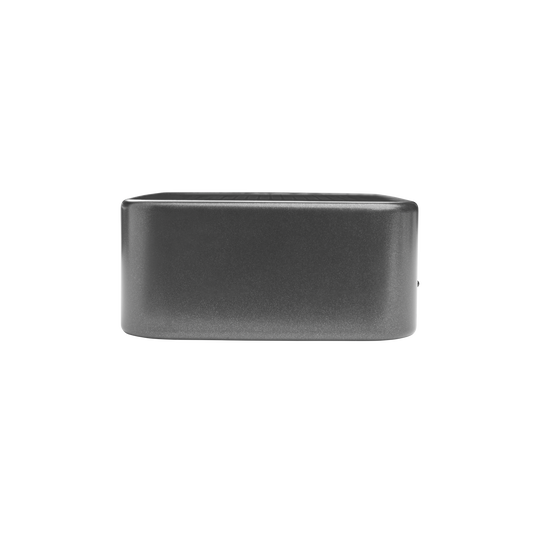

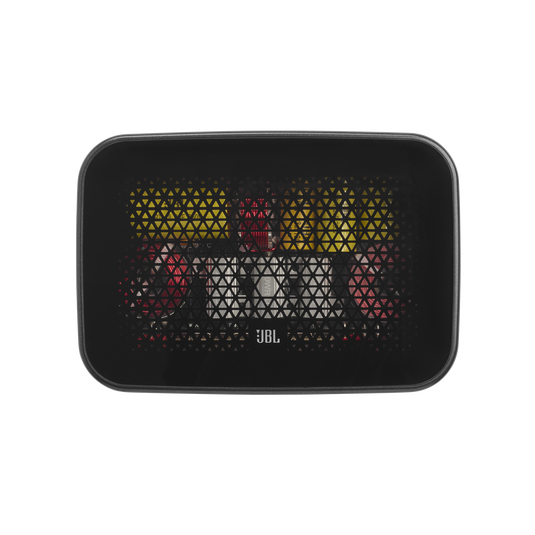

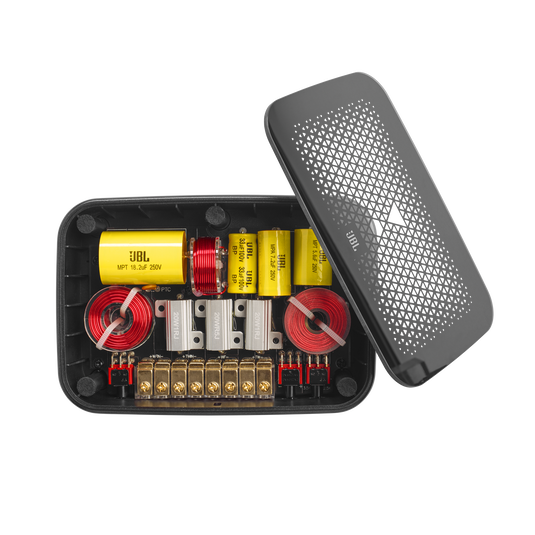

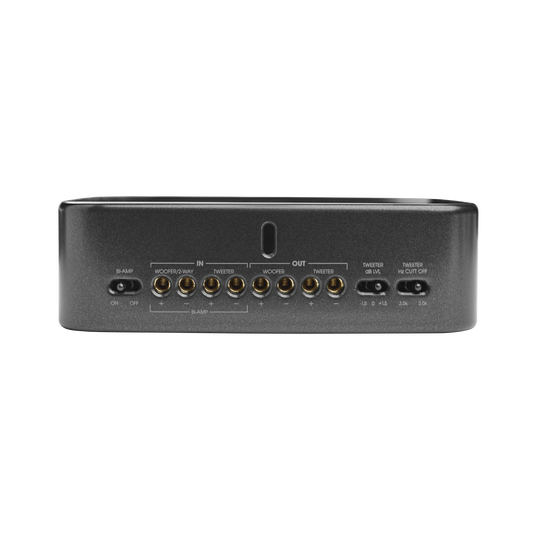

Bi-Amp Capable Precision Outboard Crossover network
High tolerence components are used to enusre purity and low distortion with a 12dB per octave alingment on the woofer and 24dB per octave alignment on the tweeter. It is also setup for biamping if so desired and a three position tweeter output is also included to optimize perofrmance based on location and vehiclel materials.
Magnetic adsorption design
Strong magnetic field adsorption technology take you to the new case era. From now on, grill installing became a pleasure. It makes your loudspeakers stand out among crowd. Magnetic strong adsorption loudspeaker grill automatic closing, 1 second installation by you.
Specs & Downloads
Item#: JBLSPKAR26BEAM
EAN: 6925281980367
General Specifications
- Frequency Response (-6dB)
- 20Hz - 40kHz
- Power Handling
- 100Wrms, 200W peak
- Crossover Frequencies
- 2.5K or 3.5kHz (selectable)
- Nominal Impedance
- 4 ohms
- Sensitivity
- 90dB (2.83V @1M)

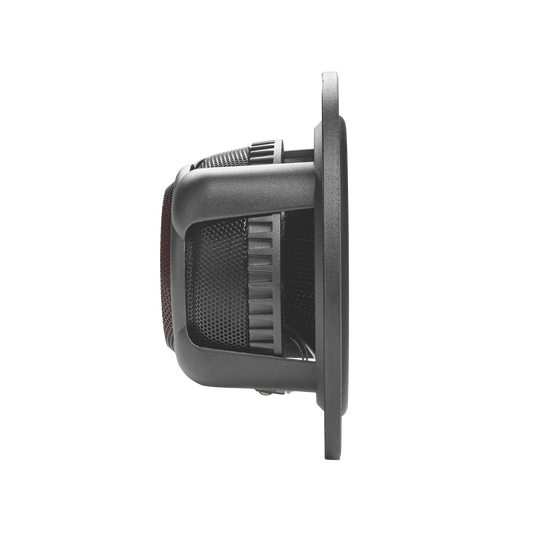

- Woofer mounting depth
- 2.83 in./72 mm

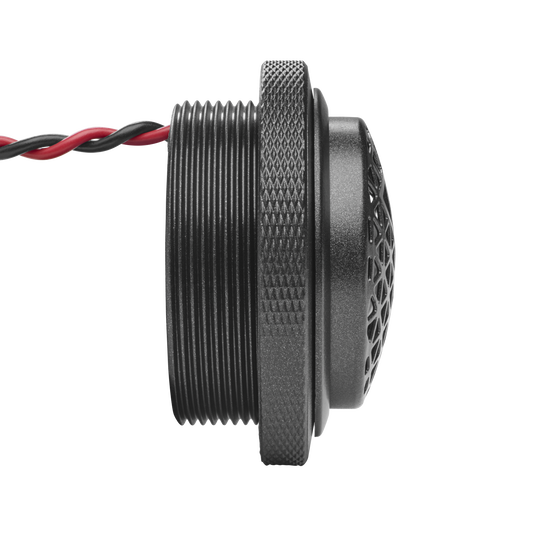

- Tweeter flush mouting depth
- 0.77 in./19.5 mm

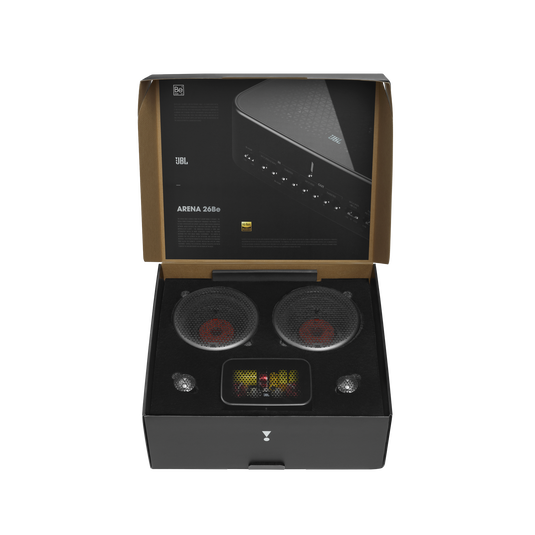

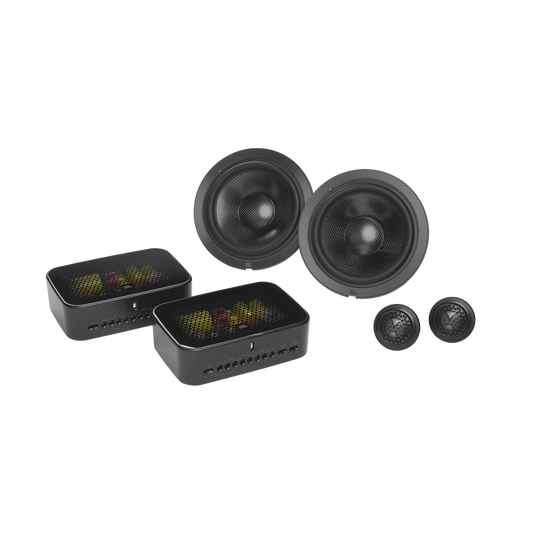

- 1 pair woofers
- 1 pair tweeters
- 1 pair passive crossovers

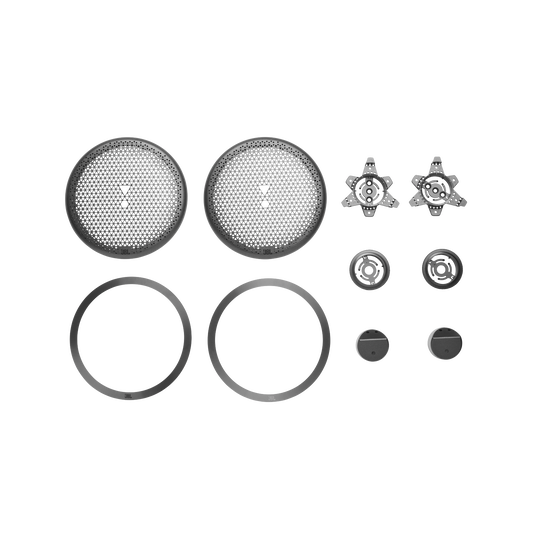

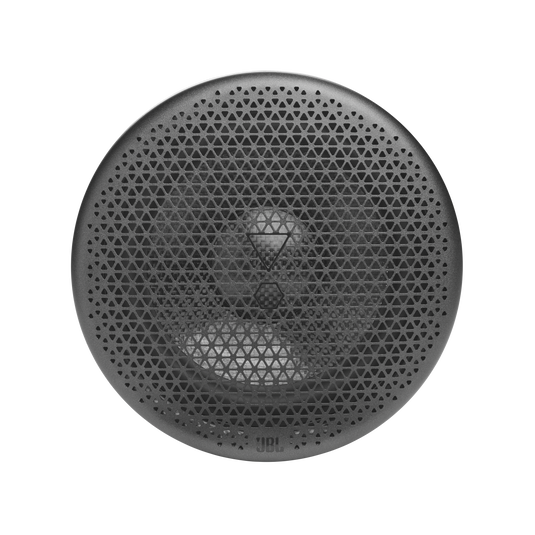

- 1 pair woofer grille
- 1 pair woofer decoration ring
- 1 pair flush mounting tweeter case (installed)
- 1 pair flush mounting tweeter nut
- 1 pair angle surface mounting cup
- 1 pair stealth mounting braket
- 1 pair woofer gaskets
- Screws and clips
- User Manual
