- SSI™ (Selectable Smart Impedance)
- Double Stack Magnet Design for Big Power Handling
- Vented Basket Design for System Cooling
- High-Roll Rubber Surrounds
- Purposeful Design
Color: Black
Features
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Club Series subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option depending on your particular system and amplifier choice. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Double Stack Magnet Design for Big Power Handling
Club subwoofers are equipped with double-stacked magnet, allowing the voice coil coupled with the high roll surround to travel over a longer excursion.
Vented Basket Design for System Cooling
Club subwoofer vented basket keeps voice coil cool even at high output levels to ensure long term reliability.
High-Roll Rubber Surrounds
Club subwoofers incorporate a high-roll surround that provides superior cone edge suspension while maximizing excursion. It not only increases the cone area, it also provides remarkable linear stability and reliability.
Purposeful Design

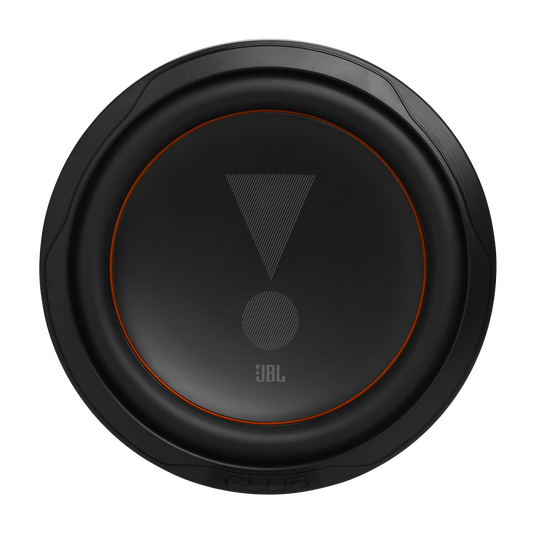

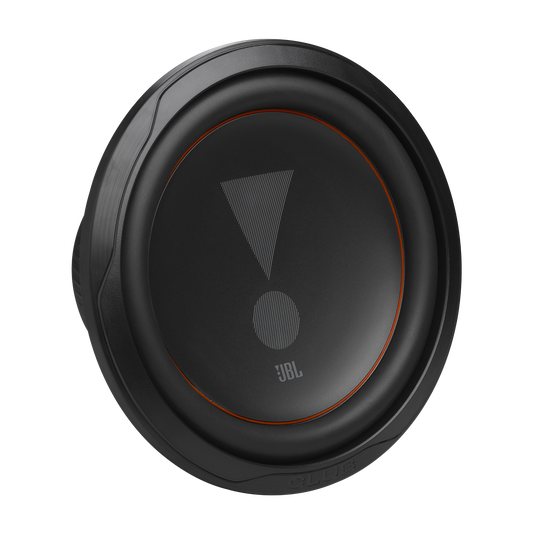

JBL Club Subwoofers feature a large inverted dust cap mated to a JBL orange cone with a subtle reveal for a pop of color. The slash pattern forms a JBL Horn prominently on the dust cap. The unique surround design allows the trim ring to press fit into it and conceal any fasteners. This gives the subwoofers a sleek clean appearance when installed.
Specs & Downloads
Item#: JBLSUBCB102
EAN: 1200130004612
General Specifications
- Subwoofer
- 10" (250mm) Polypropylene Driver
- Voice Coil Diameter
- 2" (50mm)
- Cutout Diameter
- 9" (228.61mm)
- Mounting Depth
- 5-1/8" (129.75mm)
Audio Specifications
- Power Handling
- 350W RMS, 1050W peak
- Sensitivity (1W/1m)
- 83dB
- Frequency Response (-6dB)
- 35Hz – 500Hz
- Nominal Impedance
- 2 or 4 ohms, switch-selectable
- 1x 10" Subwoofer
- 1x EVA Foam Gasket
- 1x Owner’s Manual
