- Slipstream Port Technology
- Wedge Box with Rounded Corner Design
- Removable Logo Badge
Color: Black
Features

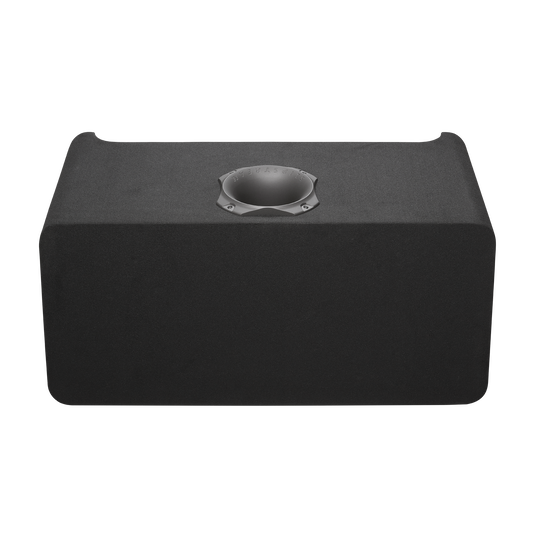

Slipstream Port Technology
Small enclosures require long ports to offer decent low-frequency performance. The unique port design of new Club enclosures efficiently limits the resulting air turbulence within the port, thus avoiding annoying port noise. The key benefit of our proprietary Slipstream port design is much higher output potential than with conventional ports and greatly reduced distortion – louder, cleaner bass.
Wedge Box with Rounded Corner Design
Club enclosures are designed in wedge box type with rounded corner which allows for flexible placement direction to get best performance and maximize the space in vehicle.
Removable Logo Badge
Club enclosures are designed with a removable logo badge so you can put anywhere you like.
Specs & Downloads
Item#: JBLSUBCB1200D
EAN: 1200130004643
General Specifications
- Subwoofer
- 2x 12" (300mm) Polypropylene Driver
- Power Handling
- 800W RMS, 1600W peak
- Sensitivity (1W/1m)
- 89dB
- Frequency Response (-6dB)
- 30Hz – 400Hz
- Nominal Impedance
- 2 ohms
- Voice Coil Diameter
- 2" (50mm)
- Enclosure dimensions
- 357.8mmD1 x 434.2mmD2 x 815mmW x 383mmH 14-1/16"D1 x 17-1/8"D2 x 32-1/16"W x 15-1/16"H
- Enclosure materials
- 13/16" (21mm) MDF with black carpet covering
- 1x Subwoofer Enclosure
- 1x JBL logo badge
- 1x Owner’s Manual
