Features
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Club shallow-mount subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option depending on your particular system and amplifier choice. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Aluminum Woofer Cone
A proprietary aluminum woofer cone has been engineered to provide high output while maintaining its shape to full excursion to ensure low distortion and minimal unwanted audible acoustical artifacts. The end result is deep, full bass performance that is musical and impactful.
Vented Basket Design for System Cooling
Club shallow-mount subwoofer vented basket keeps voice coil cool even at high output levels to ensure long term reliability.
High-Roll Rubber Surrounds
Club shallow-mount subwoofers incorporate a high-roll surround that provides superior cone edge suspension while maximizing excursion. It not only increases the cone area, it also provides remarkable linear stability and reliability.
Purposeful Design

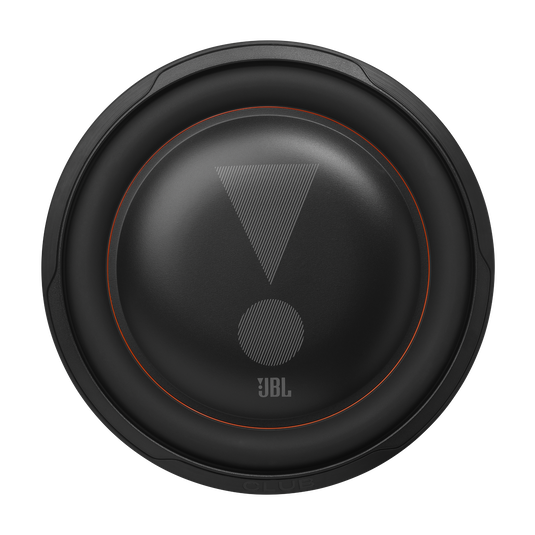

JBL Club shallow-mount subwoofers feature a large inverted dust cap mated to a JBL orange cone with a subtle reveal for a pop of color. The slash pattern forms a JBL Horn prominently on the dust cap. The unique surround design allows the trim ring to press fit into it and conceal any fasteners. This gives the subwoofers a sleek clean appearance when installed.
Specs & Downloads
Item#: JBLSUBCB122SL
EAN: 1200130009624
General Specifications
- Subwoofer
- 12" (300mm) Aluminum Driver
- Power Handling
- 400W RMS, 1200W peak
- Sensitivity (1W/1m)
- 85dB
- Frequency Response (-6dB)
- 30Hz – 500Hz
- Nominal Impedance
- 2 or 4 ohms, switch-selectable
- Voice Coil Diameter
- 2" (50mm)
- Cutout Diameter
- 11" (279.04mm)
- Mounting Depth
- 3-1/4" (82.5mm)
- 1x 12" Subwoofer
- 1x EVA Foam Gasket
- 1x Owner’s Manual
