Studio 665C

Studio 665C

The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.

General Specifications

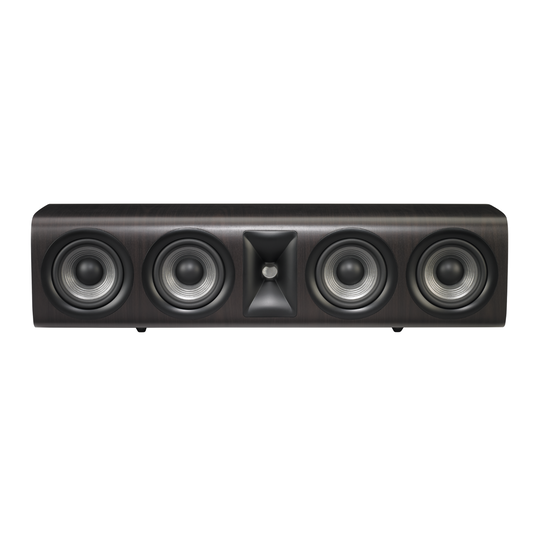

Quad 5.25", 2.5-way compression driver center loudspeaker

Quad 5.25" (133mm) PolyPlas Low-Frequency Woofer

High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver

Recommended Amplifier Power

Max 200W

Frequency Response

58Hz – 40kHz

Sensitivity

90 dB @ 1M, 2.83V

Nominal Impedance

6 Ohms

Crossover Frequencies

600 Hz, 2.2 kHz

Enclosure Type

Bass-Reflex via Rear-Firing Tuned Port

Dimensions (W x D x H)

760 x 230 x 190mm

1 x JBL Studio 665C Center Loudspeaker

4 x Rubber Feet

1 x Owner’s Manual

1 x Warranty Card
