- 15-inch (380mm) 2219Nd Differential Drive Woofer
- 3-inch (75mm) D2830B Compression Driver Mated to Sonoglass HDI Waveguide
- MultiCap ™ Crossover Network with Single-wire and Bi-wire/Bi-amp Connectivity
- High Frequency and Ultra High Frequency Controls
- Dual Sets of Gold-plated Binding Posts
- Iconic Studio Monitor Design with Furniture Grade Cabinetry
- IsoAcoustics Feet
- Powerful Visual Aspect Ratio with HF at Optimum Height
- Bass Reflex with Dual Front-Firing Ports
Color: Walnut
Features
15-inch (380mm) 2219Nd Differential Drive Woofer
The 2219Nd is a 15-inch (380mm) woofer featuring JBL’s patented Differential Drive® technology with dual 3-inch (75mm) voice coils. Its pure pulp cone is paired with copper cap/Faraday rings to reduce AC inductance, lower distortion, and enhance midrange clarity and crossover performance. The motor is extensively FEA-optimized for up to 50% greater excursion, while dual opposing spiders (one inverted) help cancel non-linearities under high excursion. A newly designed cast-aluminum frame provides better venting and increased structural rigidity, ensuring superior performance and durability.
3-inch (75mm) D2830B Compression Driver Mated to Sonoglass HDI Waveguide
The 2830B compression driver is coupled to a patented Sonoglass High Definition Imaging (HDI™) horn/waveguide and features two ultra-light annular Teonex diaphragms, each with its own voice coil and neodymium motor structure. This approach matches the radiating area of a traditional 3-inch diaphragm while offering a significantly lower mass-to-motor force ratio. This dual-diaphragm design enhances high-frequency output, smooths and extends HF response, improves overall efficiency, and enables higher maximum output, reduced distortion, and double the power handling.
MultiCap ™ Crossover Network with Single-wire and Bi-wire/Bi-amp Connectivity
By replacing traditional large capacitors with an increased number of smaller capacitors, this design results in lower ESR (Electro-Static Resistance) and less energy-loss in mechanical movement, culminating in greater signal throughput to the drivers, increased power handling, enhanced dynamics, ultra-low distortion, and exceptional clarity.
High Frequency and Ultra High Frequency Controls
System integration is optimized through high-frequency (HF) and ultra-high-frequency (UHF) controls, allowing precise adjustments from -1 dB to +1 dB in 0.5 dB increments. These fine-tuning options enable tailored sound performance for any environment, with HF adjustments covering the 1.5–6 kHz range and UHF adjustments targeting frequencies above 5 kHz.

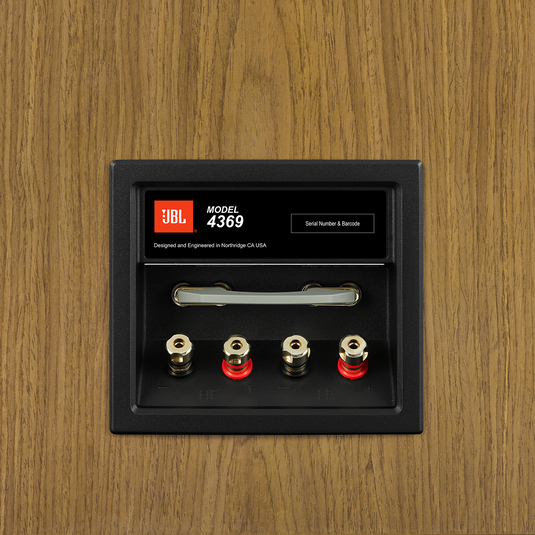

Dual Sets of Gold-plated Binding Posts
Cast-aluminum Terminal Cup with Dual sets of gold-plated binding posts for bi-wire/bi-amp usage with a shorting jumper for single-ended usage.

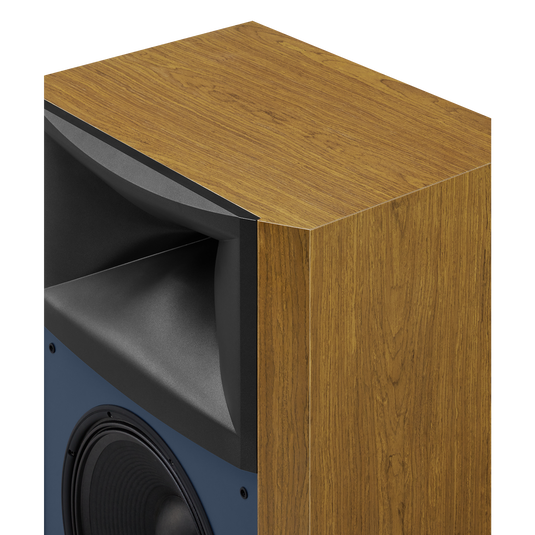

Iconic Studio Monitor Design with Furniture Grade Cabinetry
The acoustic components of the JBL 4369 are housed in a classic Studio Monitor Series-style cabinet, featuring a clean and professional design. As the heaviest part of the system, the cabinet is built with 1-inch thick MDF walls plus an additional 5/8-inch added to the lower front baffle, creating a solid 1 5/8-inch thick support for the woofer. Structural rigidity is further reinforced by two strategically placed braces that connect all vertical panels, ensuring minimal resonance and maximum acoustic stability. The inert cabinet design eliminates coloration, preserving the purity of the sound.
IsoAcoustics Feet
IsoAcoustics feet, crafted from precision-machined stainless steel, offer a sleek and durable solution for enhanced audio performance. They significantly reduce surface reflections from flooring, resulting in cleaner and more accurate sound. With a design that resists lateral movement and dampens oscillations, these feet provide exceptional isolation. Even during dynamic playback, they maintain perfect alignment with the listening position.
Powerful Visual Aspect Ratio with HF at Optimum Height
The JBL 4369’s compression driver is precisely positioned to align with the listener’s ear level, ensuring high-frequency reproduction remains on-axis. This design refinement enhances clarity and imaging, delivering a more direct and immersive listening experience.
Bass Reflex with Dual Front-Firing Ports
The dual front-firing ports on the JBL 4369 enhance bass output and efficiency while allowing flexible placement, even near walls, without compromising sound quality. Compared to a single port, this design also smooths the frequency response at higher volumes, delivering more consistent and controlled low-end performance.
Specs & Downloads
Item#: JBL4369WAL
EAN: 1200130028434

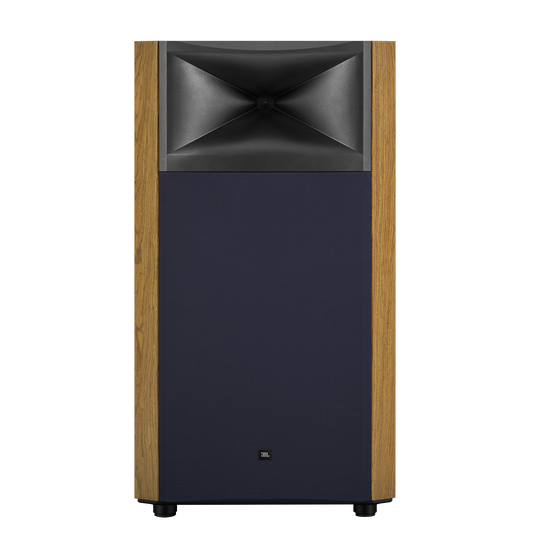

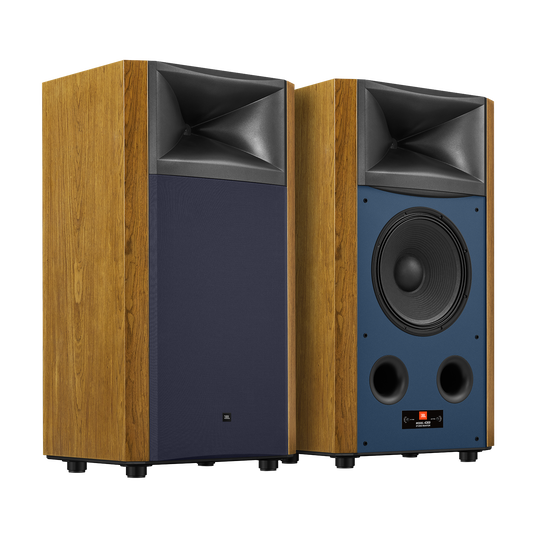

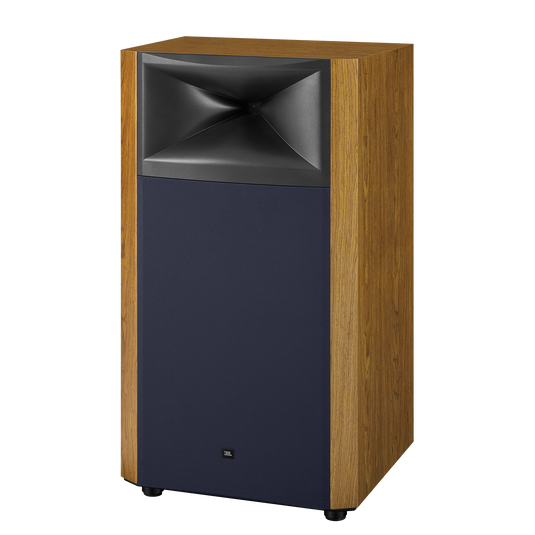

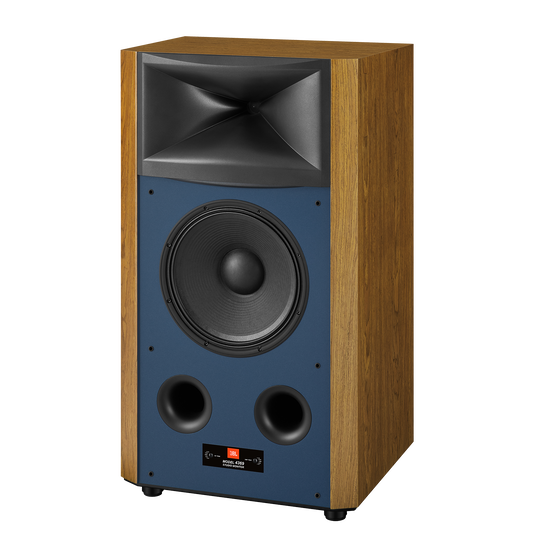

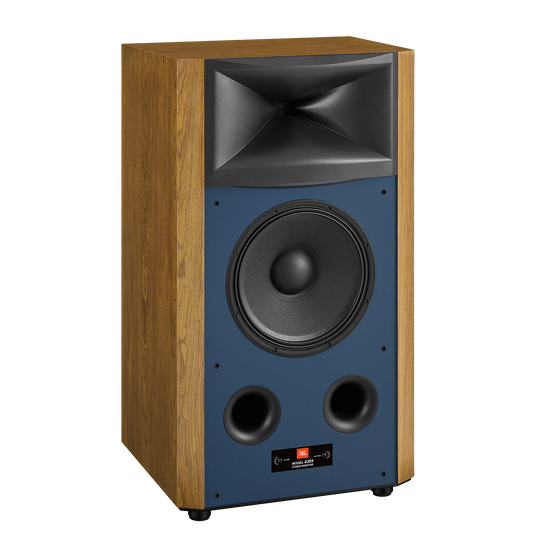

15-inch (380mm) 2-way Floorstanding Studio Monitor Loudspeaker
Designed and engineered at JBL’s world-renowned acoustic facility in Northridge, California, the JBL 4369 stands as the flagship of the Studio Monitor Series. This 2-way, high-performance studio monitor delivers exceptional sonic accuracy and dynamic range, making it a top choice for discerning audiophiles and professionals alike. At its core is a newly developed 2219Nd 15-inch (380mm) cast-aluminum frame woofer featuring JBL’s patented Differential Drive® technology, dual 3-inch (75mm) voice coils and a neodymium motor structure, ensuring outstanding performance across low and mid frequencies. For upper-mid and high frequencies, the 4369 employs the patented D2830B compression driver. This 3-inch (75mm) dual diaphragm, dual voice coil design, paired with dual neodymium motors and a newly upgraded Sonoglass High-Definition Imaging (HDI™) waveguide, delivers precise imaging and a smooth, extended frequency response. JBL's MultiCap™ crossover features premium-grade components supporting audiophile-level performance with any setup. The cabinet, finished in elegant furniture grade Walnut or Black Walnut wood veneer, is internally braced at key points and tuned via front-firing ports—combining visual sophistication with acoustic precision. The result: powerful dynamics, stunning clarity, and breathtaking realism from a loudspeaker that embodies JBL’s legacy of innovation and excellence.
General Specifications
- Speaker type
- 2-way Floorstanding Loudspeaker
- Low frequency transducer
- 15" (380mm) 2219Nd Differential Drive® Woofer
- Mid/High-frequency transducer
- 3" (75mm) D2830B dual diaphragm, dual voice coil, dual-motor compression driver with Sonoglass High-Definition Imaging (HDI™) waveguide horn
- Maximum recommended amplifier power
- 350 watts RMS
- Frequency response (-6dB)
- 28Hz –25kHz
- Sensitivity (2.83V @ 1m)
- 93dB
- Nominal impedance
- 6 Ohms
- Crossover frequency
- 800Hz
- Enclosure type
- Bass-reflex via dual front-firing ports
- Inputs
- Dual gold-plated five-way binding posts
Dimensions
- Product Dimensions
- 44.1" x 24.8" x 18.5" (1120.2mm x 630mm x 469.5mm)
- Weight
- 140 lbs (63.5kg)
- Packaging Dimensions
- 52.6" x 33.9" x 27.3" (1336mm x 861mm x 692mm)
- Packaging Weight
- 158.1 (71.7kg)
Control and Connection Specifications
- Inputs
- Dual Gold-plated Five-way Binding Posts for Single-ended or Bi-wire/Bi-amp Connections
- 1 x JBL 4369 2-Way Studio Monitor Loudspeaker
- 1 x Speaker Grille
- 1 x Quick Start Guide
- 1 x Safety Sheet
