Extraordinary audio and video performance
5.2-channel AV receiver that delivers extraordinary audio performance with 4K video for a supreme home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus ARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Features
Bring both music and movies to life with true high fidelity
Designed with a passion for music and movies, bringing both to life with true high fidelity.
Bluetooth streaming
Stream music wirelessly via Bluetooth v5.1 + Low Energy.
On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI).
Powerful amplification
Five channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Video Gallery
Specs & Downloads
Item#: JBLMA310BLKAM
EAN: 1200130010378
Bring both music and movies to life with true high fidelity.
The JBL MA310 is an AV Receiver that delivers extraordinary performance with 4K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus ARC. With native 5-channel decoding of Dolby and DTS formats, the MA310 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth. The MA310 features five channels of low noise Class D amplification for real world power to all channels.
General Specifications
- HDMI Audio Return Channel
- Yes
- 4K HDMI input connectors (HDMI 2.0,HDCP 2.2 up to 4K/60Hz Ultra HD)
- 4
- HDR 10
- Yes
- Pure Direct
- Yes
- EZ Set EQ
- Yes
- Digital signal processing
- up to 24-bit/192kHz
- Mains voltage
- 110 – 240V, 50–60Hz
- Max. power consumption
- 200W
- Standby power consumption
- <0.5W
Audio Specifications
- Channels
- 5.2
- FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
- 50W
- Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 60 W RMS
- Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
- 100 W RMS
Dimensions
- Dimensions incl. feet and speaker terminals (H x W x D)
- 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
- Weight
- 11.3lb (5.1kg)

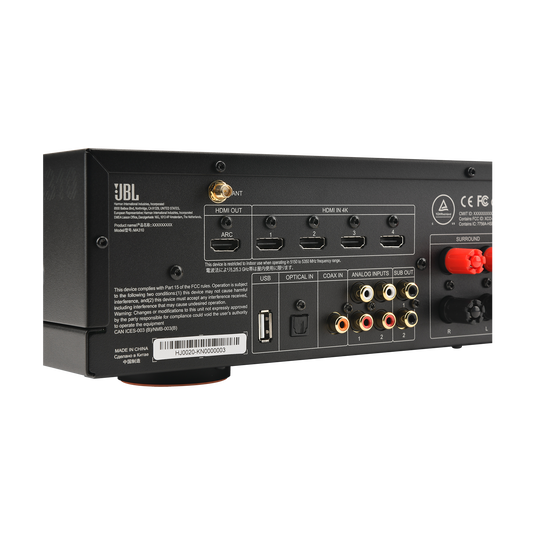

Control and Connection Specifications
- HDMI Input/Output
- 4 / 1
- Bluetooth receiver
- Yes (v5.1, Low Energy)
- Digital Audio Input
- 1 Coax, 1 Optical
- Stereo analog input
- 2 single-ended RCA
- Pre-Out (single ended RCA)
- Subwoofer 1, Subwoofer 2

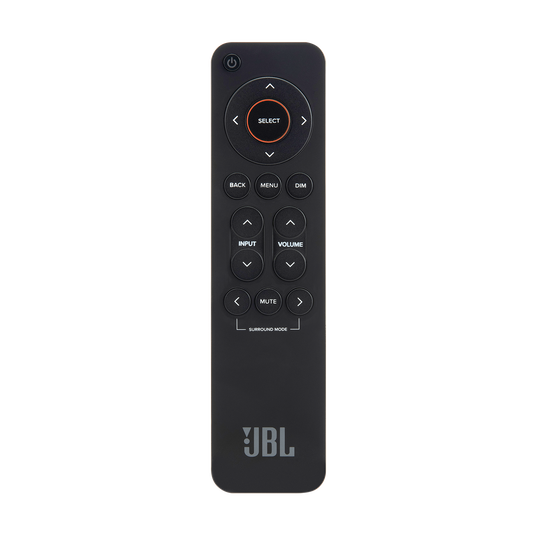

- 1x IR Remote
- 2x AAA batteries
- 1x Bluetooth antenna
- 1x Power Cord
- 1x Quick-Start Guide
- 1x Safety Sheet
Declaration of Conformity
509.03 KB
Owners Manual (Multilingual)
33.19 MB
Quick Start Guide (Multilingual)
11.11 MB
EZ Set EQ Calibration Guide - EN
1.77 MB
MA Series Spec Sheet - EN
698.2 KB
MA310 Owner's Manual - EN
3.67 MB
JBL MA series AVR Comparison Guide - EN
328.49 KB
MA310 Spec Sheet - EN
327 KB
Firmware Update MA310 v1.65
1.62 MB
IR Remote Codes - MA Series AVRs
150.01 KB
Spec Sheet (English)
667.86 KB
