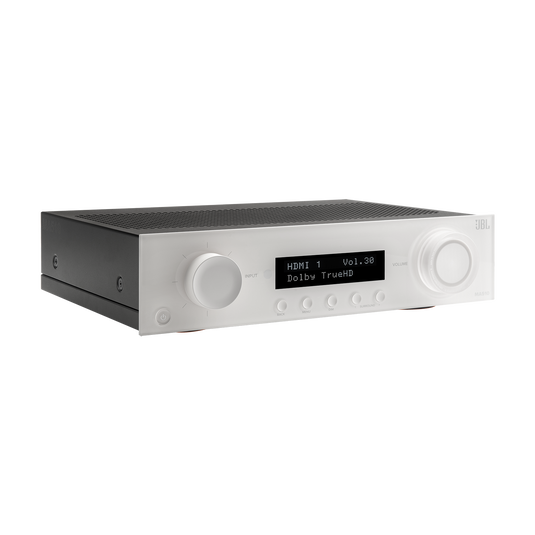

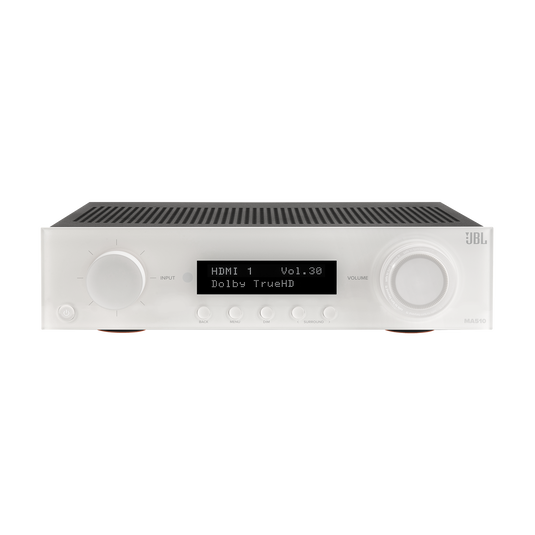

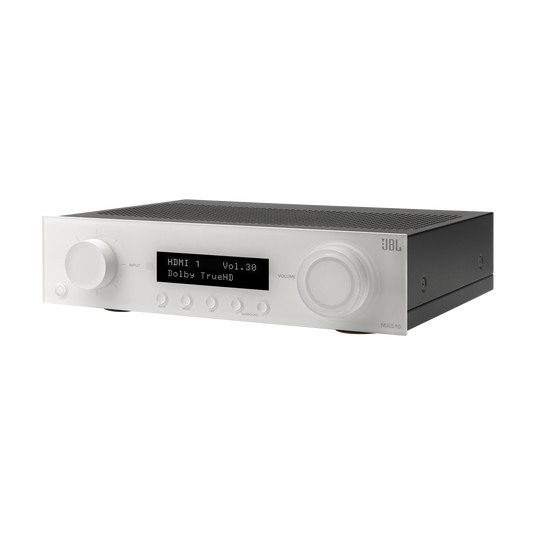

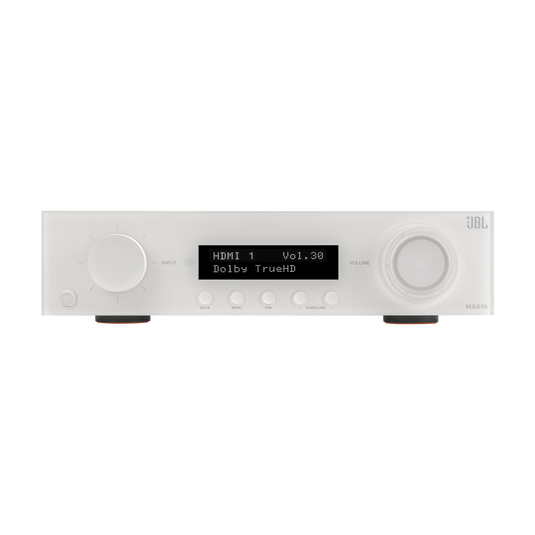

MA510

Bring both music and movies to life with true high fidelity.

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

General Specifications

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

4

HDMI 2.1 enhanced gaming features

Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision

Yes , Yes

File format

File format up to 48 kHz / 320kbps WMA

MP3 / MPEG-4 AAC

Pure Direct

Yes

EZ Set EQ

Yes

Digital signal processing

up to 24-bit/192kHz

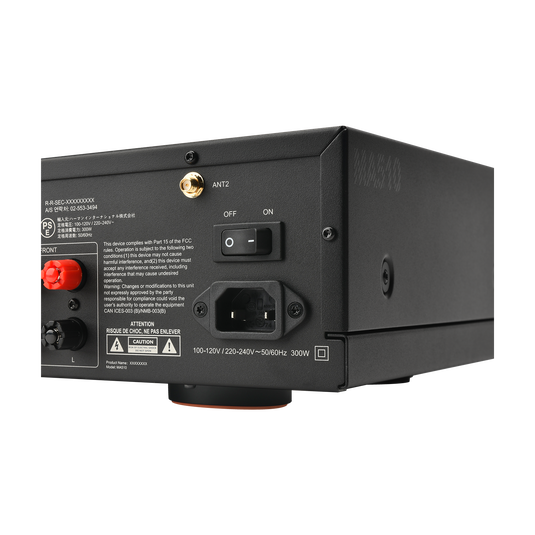

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

300W

Standby power consumption

<0.5W

Audio Specifications

Channels

5.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

75W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

75 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

100 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)

Weight

12lb (5.4kg)

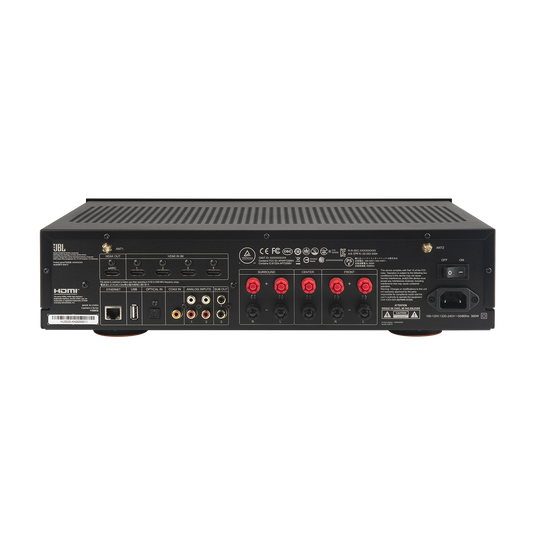

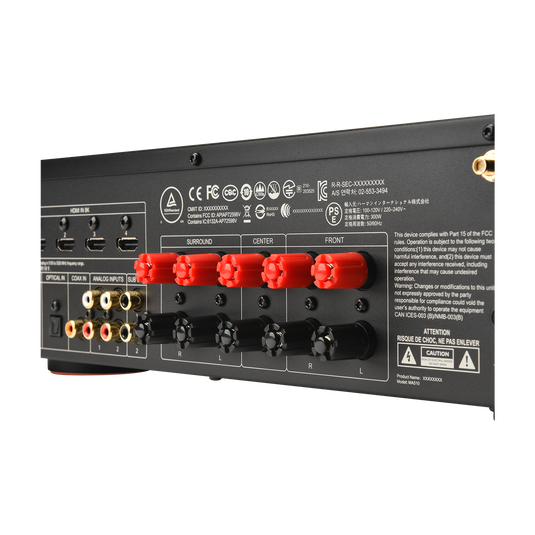

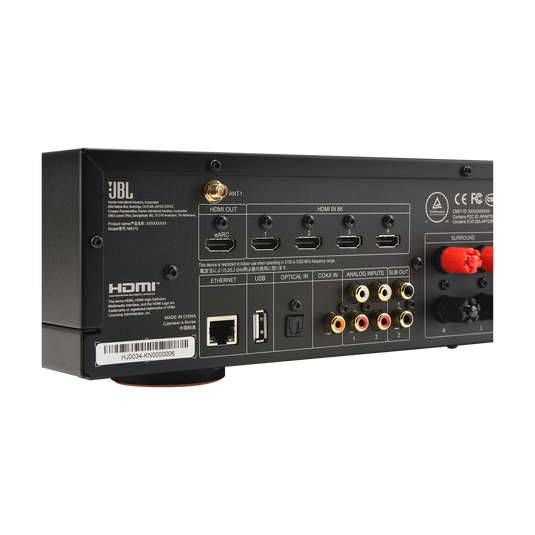

Control and Connection Specifications

HDMI Input/Output

4 / 1

Wi-Fi

Yes (2.4/5GHz)

Bluetooth receiver

Yes (v4.1, Low Energy)

Digital Audio Input

1 Coax, 1 Optical, 1 USB

Stereo analog input

2 single-ended RCA

Pre-Out (single ended RCA)

Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)

Yes

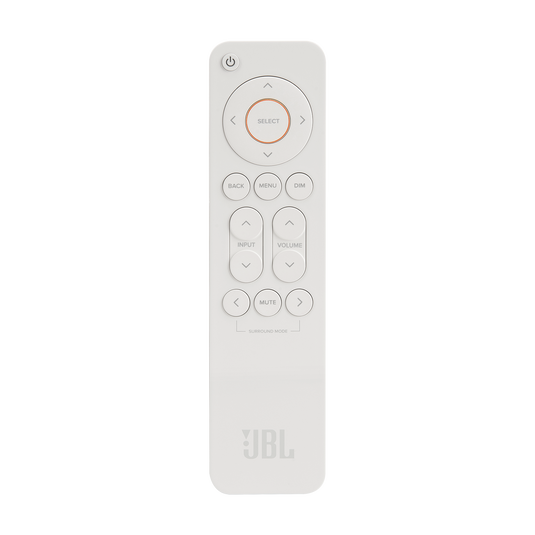

1x IR Remote

2x AAA batteries

1x Bluetooth antenna

1x Wi-Fi antenna

1x Power Cord

1x Quick-Start Guide

1x Safety Sheet
