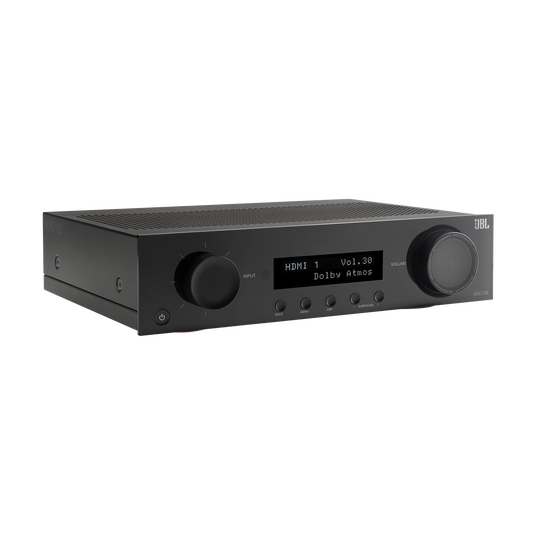

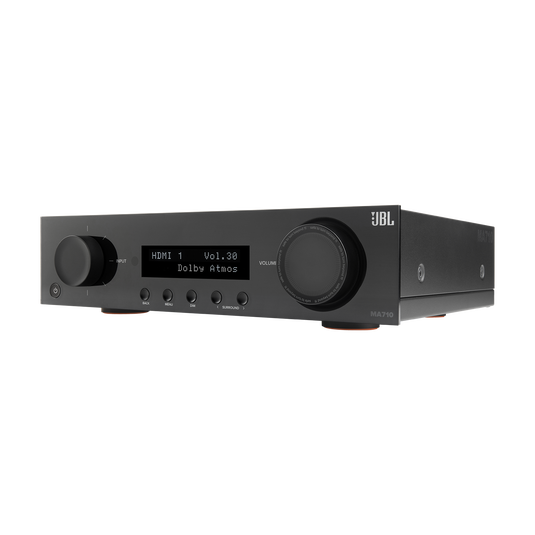

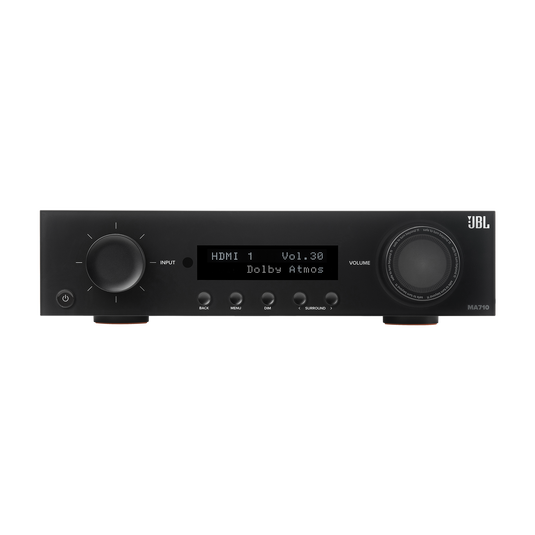

MA710

Bring both music and movies to life with true high fidelity.

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.

General Specifications

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

3

HDMI 2.1 enhanced gaming features

Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision

Yes , Yes

File format

File format up to 48 kHz / 320kbps WMA

MP3 / MPEG-4 AAC

Pure Analog

Yes

EZ Set EQ

Yes

Front channel bi-amp

Yes

Digital signal processing

up to 24-bit/192kHz

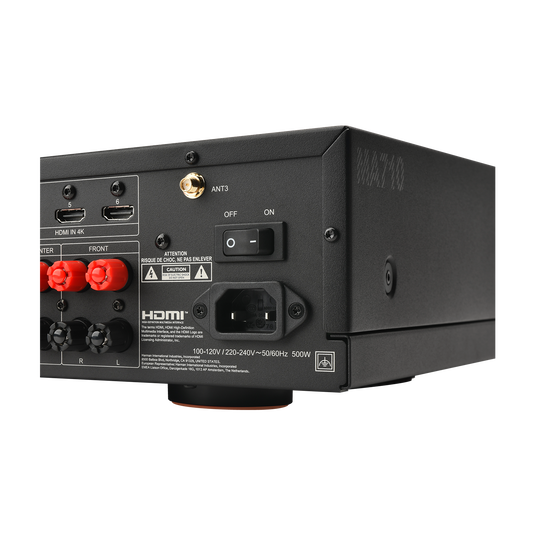

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

500W

Standby power consumption

<0.5W

Audio Specifications

Channels

7.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

110W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

110 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

160 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)

Weight

13.8lb (6.3kg)

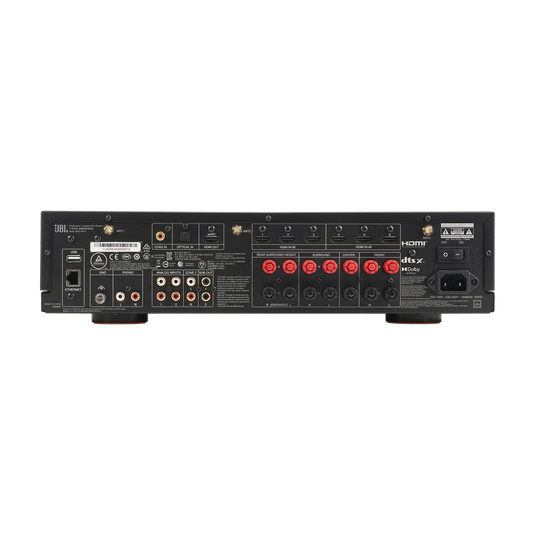

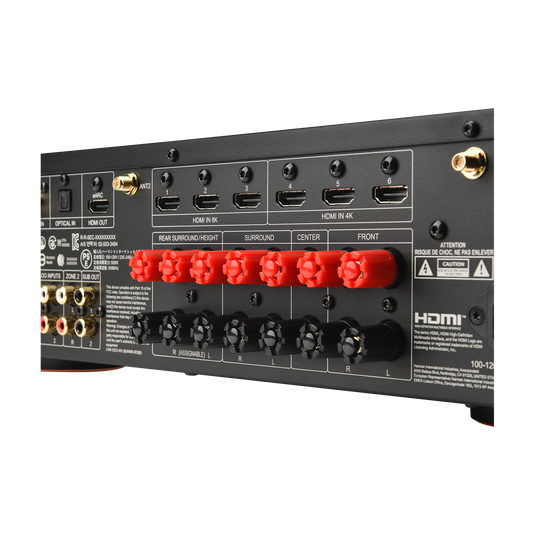

Control and Connection Specifications

HDMI Input/Output

6/ 1

Wi-Fi

Yes (2.4/5GHz)

Bluetooth receiver

Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

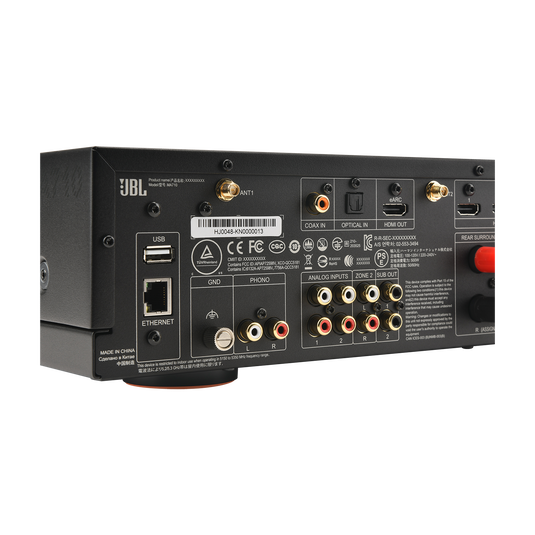

Digital Audio Input

1 Coax, 1 Optical, 1 USB

Stereo analog input

2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA)

Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)

Yes

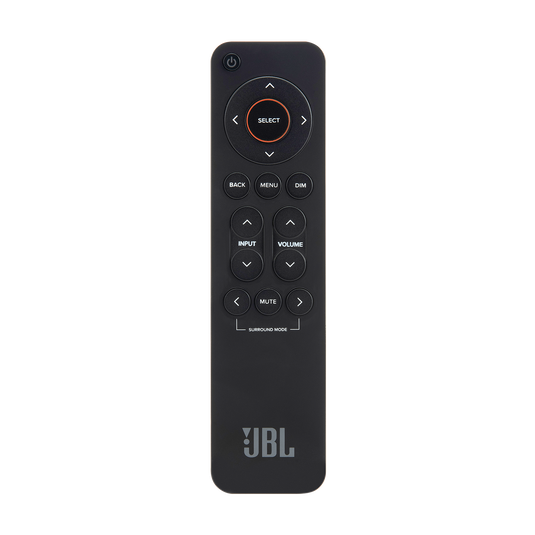

1x IR Remote

2x AAA batteries

1x Bluetooth antenna

2x Wi-Fi antenna

1x Power Cord

1x Quick-Start Guide

1x Safety Sheet
