- Compact size
- High and low level input
- Variable crossover
- Low noise and distortion
- Input Level Control
- Full on-board protection
- Preamp Outputs
- Class H amp technology
- Turn-on mode
Features
Compact size

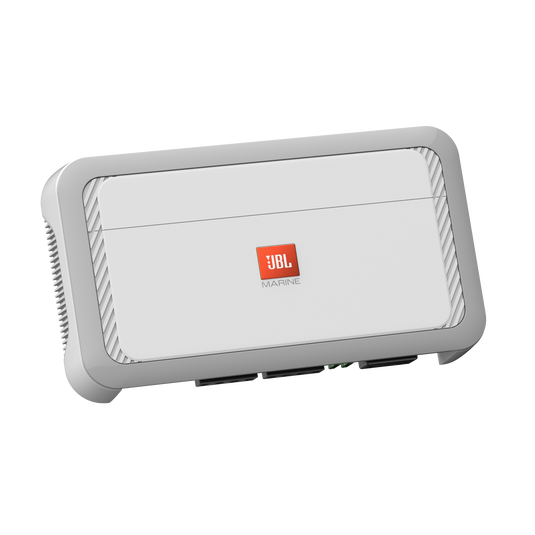

The JBL marine A754 amplifier features a low-profile chassis and a small overall footprint to fit in more Marine where available space is limited.
High and low level input

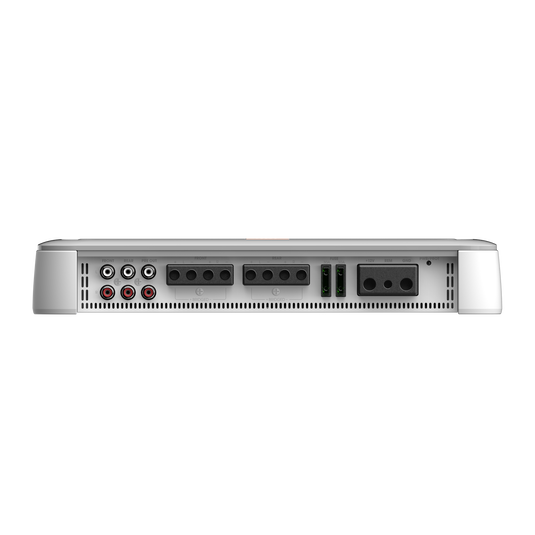

Speaker-level and low-level inputs allow the marine A754 to integrate with both aftermarket and factory marine stereo systems.
Variable crossover
Unlike many amplifiers available at similar prices, the JBL marine A754 features variable electronic crossovers for precise system tuning and performance.
Low noise and distortion
The marine A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 4Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 1Vrms and 22Vrms.
Full on-board protection
On-board circuitry protects the marine A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Preamp Outputs
Using multiple amplifiers, the marine A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.
Class H amp technology
The JBL marine A754 4 channels subwoofer amplifier delivers 400-Watts RMS using a Class H amplifier design to ensure high output and minimum current draw.
Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice .A selectable "Turn-on mode" can protect battery to avoid current drain, when you don't expect turn on your amplifier.
Specs & Downloads
Item#: JBLMA754AM
EAN: 1200130003097
General Specifications
- 4 channel marine amplifier
- 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
- 200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
- Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
- Preamp and speaker-level inputs
- Preamp outputs
- Fuse rating
- 30A x 2
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8” x 2-1/16" x 7-1/8”
- One marine A754 four channel amplifier
- 4 Bare wire-to-RCA adapters
- Four 30A ATO fuses (2 installed, 2 spare)
- Two JBL stickers
- Owner's Manual
- 4 Mounting screws (M4 x 53mm)
- 1 logo badage
