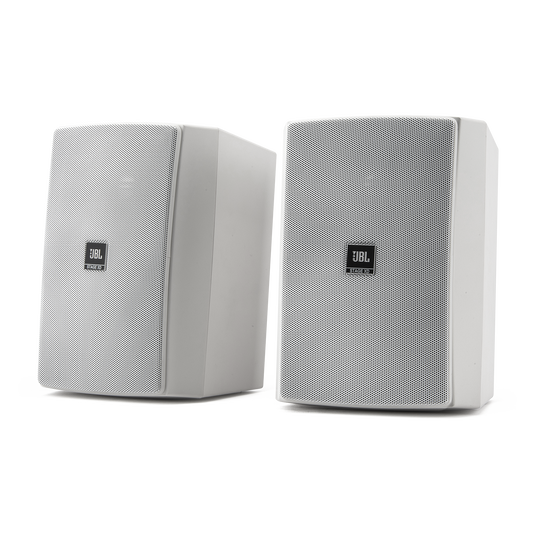

Stage XD-5

Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

per pair
  • IP67 Waterproof rating provides protection from the harshest of outdoor conditions
  • High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion
  • Included wall-mount bracket allows for easy installation and angle adjustment
  • Polypropylene Graphite Filled Cone Woofer
  • Zero bezel magnetically attached grilles
  • Rotatable logo for horizontal and vertical applications
Color: White
Where to Buy
Stage XD-5
per pair
Stage XD-5 IP67 Waterproof rating provides protection from the harshest of outdoor conditions - Image

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

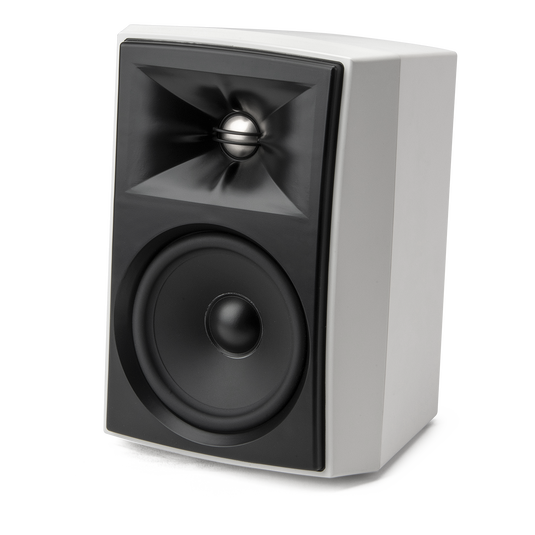

Stage XD-5 High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion - Image

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

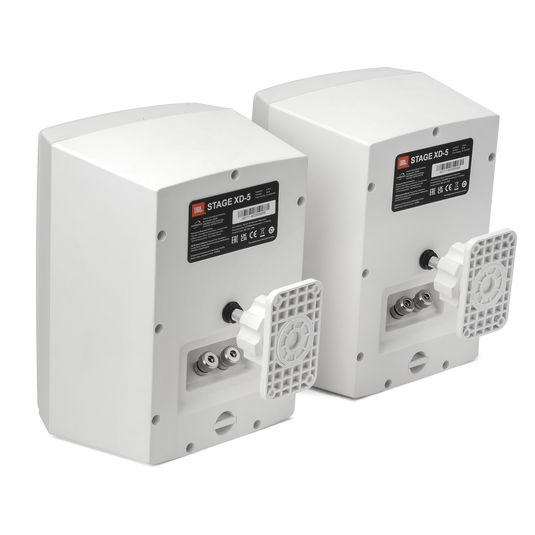

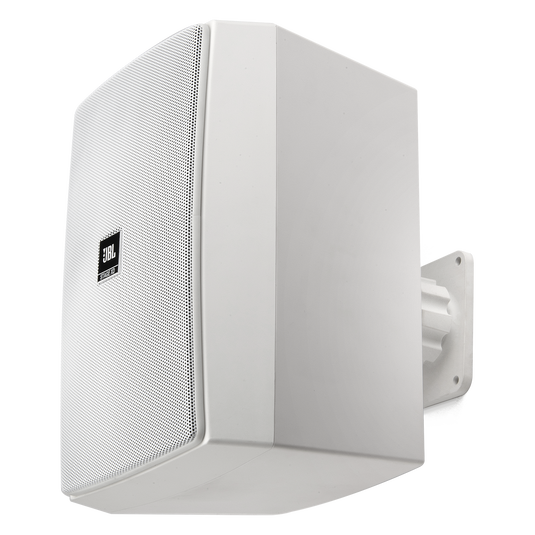

Stage XD-5 Included wall-mount bracket allows for easy installation and angle adjustment - Image

Included wall-mount bracket allows for easy installation and angle adjustment

Features

Stage XD-5 Polypropylene Graphite Filled Cone Woofer - Image

Polypropylene Graphite Filled Cone Woofer

Stage XD-5 Zero bezel magnetically attached grilles - Image

Zero bezel magnetically attached grilles

Stage XD-5 Rotatable logo for horizontal and vertical applications - Image

Rotatable logo for horizontal and vertical applications

Dealer Locator

Dealer Locator

JBL Specialty Audio can be purchased through authorized dealer with the experience and expertise to help you find the right products for your home audio needs.

Learn More

Specs & Downloads

Item#: JBLXD5WHT

EAN: 6925281918827

General Specifications

Product Type
2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
5.25" (130mm) Polypropylene Cone Woofer
Nominal Impedance
6 ohms
Sensitivity (2.83V@1m)
86dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
75Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
-31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD)
9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm)
Product Weight
2.3lbs (5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
12.6in (320mm) x 16.4in (416mm) X 10.1in (256mm)
Beauty Carton Weight
12.2lbs (5.5kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
13.4in (340mm) x 31.1in (788mm) X 17.0in (430mm)
Master Carton Weight
37.5lbs (17kg)
Master Carton Quantity
3pr
Quick Start Guide (Multilingual) 962.58 KB Spec Sheet (English) 376.6 KB
