Features

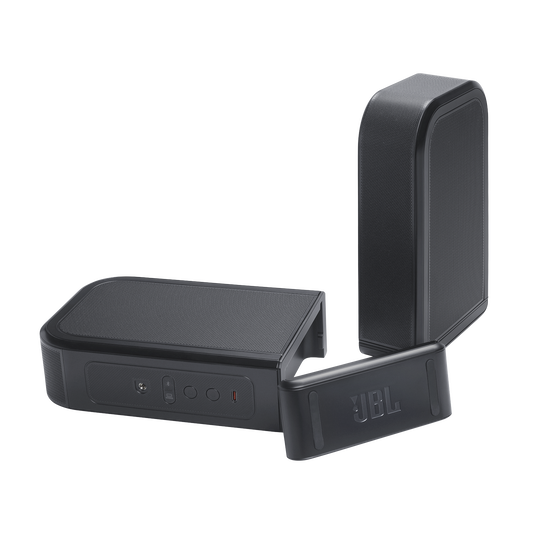

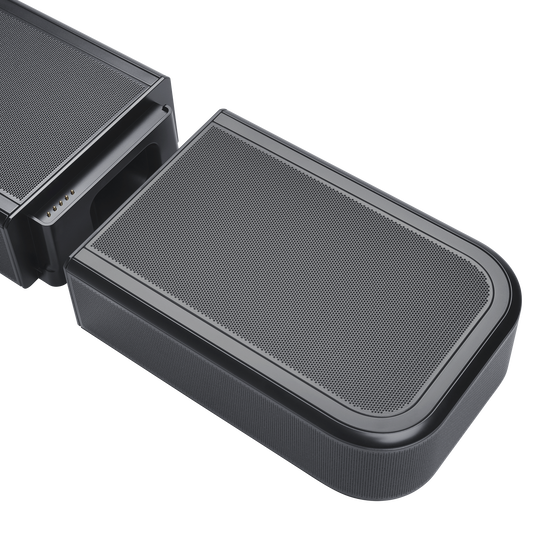

Real atmospheric surround sound with detachable wireless speakers
Experience the pinnacle of 3D surround sound with breathtaking height channels. Six up-firing speakers in the soundbar and the wireless rear speakers deliver true Dolby Atmos® sound. No extra wires. No power connections. Just lift the detachable surround speakers off the soundbar—you can do it with just one hand—and place them behind where you're sitting to create a true surround-sound experience. It's that simple. Whether you're binge-watching your new favorite show or hosting a movie night, the speakers' long-lasting batteries mean you'll enjoy immersive, cinematic surround sound for hours. And when you're done, just place the speakers back on the bar to recharge overnight.
1570W max output power and a 12" wireless subwoofer
Get ready. With a staggering 1570 total watts of max output power, your movies, music, and games will sound like nothing you've ever heard outside of a top-quality movie theater. Feel every on-screen crash, bang, and boom in your chest. Action movies get even more exciting with big, thundering bass from the ultra-powerful 12" wireless subwoofer.
True Dolby Atmos® and DTS:X
Plunge into theater-quality 3D spatial sound with true Dolby Atmos® and DTS:X. Shiver as spaceships fill the sky overhead. Feel explosions that rumble through your body. Experience music like you're right there in the recording studio.
MultiBeam™ 3.0
Wherever you're sitting, you'll be in the middle of the action. Our MultiBeam™ 3.0 delivers a wide, cinema-like soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.
PureVoice 2.0
Never miss a softly spoken line or a whispered plot twist. JBL's own PureVoice 2.0 automatically raises or optimizes the dialogue, based on both ambient sound in the scene and your soundbar's volume. So you'll always hear every word, clearly and consistently, in cinema-quality sound.
Portable Bluetooth® speakers
Take theater-quality sound along with you, around the house or into the back yard. Pair one of the detachable wireless speakers to your Bluetooth® device and it becomes a powerful portable. Or enjoy true stereo sound by pairing both speakers. And you can always add even more compatible JBL or Harman Kardon speakers using Auracast™.
Broadcasting
You don't want to miss any of the big game, even when you're in the kitchen making another batch of hot wings. Just bring one—or both, for stereo sound—of the detachable wireless speakers with you and you'll hear the same great movie-quality audio your family and guests are enjoying in the other room.
Night listening
Enjoy your favorite shows or movies without disturbing others. Just put the wireless detachable speakers in front of you and use the JBL ONE app to turn on night listening. The soundbar and the subwoofer are automatically muted, while the speakers deliver an intimate high-quality audio experience just for one. Or two.
SmartDetails
Hear all the subtleties in a film's sound mix, just like you would in the theater. From a creaking door to a faraway shout, experience every detail the way the filmmakers intended in a clear, balanced sound field, thanks to JBL's own advanced sound enhancement technology.
Works with all ecosystems and music streaming services
Enjoy all your favorite music and podcasts in stunning high-definition sound. Choose from hundreds of online music streaming services through AirPlay, Google Cast, Spotify Connect, Tidal Connect, and Roon Ready.
Easy sound calibration
Every room is different. Your soundbar discovers how sound reflects off your walls and furniture. So it'll deliver the best 3D surround effects, tuned specifically for your space and with any TV.
JBL ONE App
Set up the soundbar using the JBL ONE app, then make it yours. Customize the sound your way with a precise equalizer, browse your favorite music apps, and get software upgrades for all the latest features, right from your couch.
HDMI eARC with 4K Dolby Vision passthrough
No matter what brand your TV is, enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The HDMI input connection also offers 4K video quality from a compatible video player or gaming console.
Works with voice assistant-enabled speakers
Play that song you're craving, even when you've got your hands full. Just link the soundbar to a device with built-in voice capabilities and control your music hands-free using Google Assistant or Siri.
Deep sleep
When you're asleep, so is your soundbar. It uses less than 1 watt of power while in standby mode. That's about the same as your TV's remote control.
Specs & Downloads
Item#: JBLBAR1300XM2BLKAM
EAN: 1200130026843
Get ultimate 3D spatial sound in seconds - without the wires

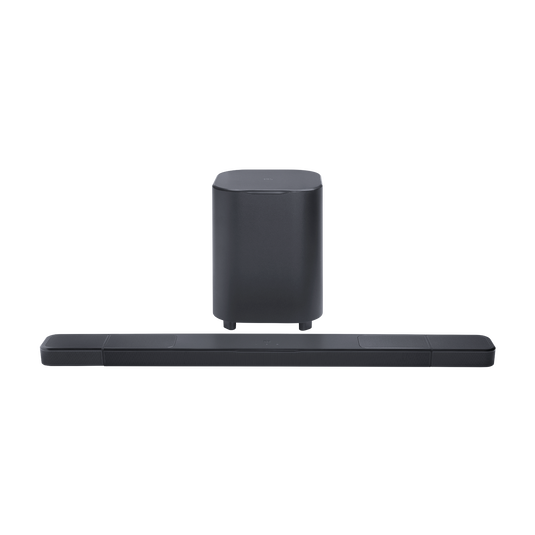

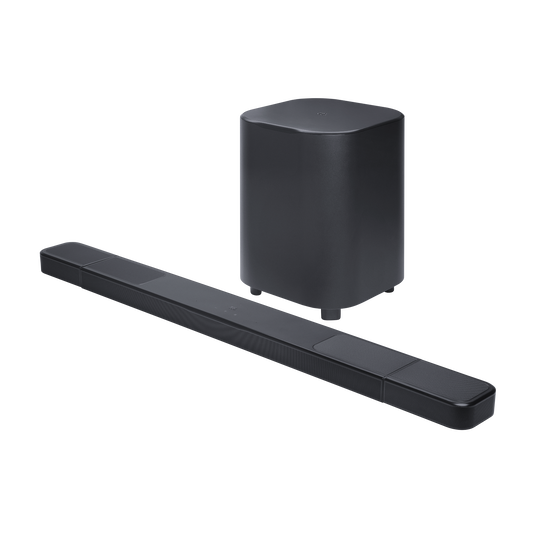

You can get a cinematic sound experience in seconds. One that fills your entire room with true Dolby Atmos® and DTS:X for vivid, immersive 3D spatial audio that you can customize to fit any moment. Just pick up the detachable wireless speakers from either end of the JBL BAR 1300MK2 soundbar and put them behind where you're sitting. Far apart for family movie night with the new superhero hit or closer for a cozy romantic playlist—chosen from hundreds of available streaming services. Feel deep, punchy bass from a mighty 12" subwoofer and enjoy the widest, most cinematic soundstage with MultiBeam™ 3.0. When you're not watching TV, pair one or both of the detachable speakers to any Bluetooth® device for portable and powerful sound anywhere in your home. And all of this works seamlessly with your TV. Your TV just can't offer the rich, powerful sound you deserve, but JBL has meant great sound for cinemas, recording studios, and concert halls for nearly a century. Bring our level of craft to your own home.
General Specifications
- Model
- BAR 1300XMK2 (soundbar unit) BAR 1300XMK2 SURROUND (detachable speaker) BAR 1300XMK2 SUB (subwoofer unit)
- Sound system
- 11.1.4 channel
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%)
- 1570W
- Soundbar output power** (Max. @THD 1%)
- 950W
- Surround speaker output power*** (Max. @THD 1%)
- 2x 160W
- Subwoofer output power**** (Max. @THD 1%)
- 300W
- Soundbar transducer
- 8x (50x75mm) racetrack drivers, 7x 1" (25mm) tweeters, 4x 3" (75mm) up-firing full-range drivers
- Surround speaker transducer
- 2x (50x90mm) racetrack drivers, 1x 2" (50mm) full-range drivers, 1x 3" (75mm) up-firing full-range drivers
- Subwoofer transducer
- 12" (311mm)
- Networked standby power
- < 2 W
- Operating temperature
- 0°C - 45°C
- Lithium battery
- 7.2V, 4722mAh
- Detachable surround speaker playtime
- up to 10 hours (may vary according to content type and volume level)
Audio Specifications
- Frequency response
- 33Hz - 20kHz (-6dB)
- Audio inputs
- Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Total soundbar dimensions (W x H x D)
- 1404 x 58 x 136 mm / 55.3" x 2.3" x 5.4"
- Soundbar dimensions (W x H x D)
- 1030 x 58 x 136 mm / 40.6" x 2.3" x 5.4"
- Detachable surround speaker dimensions (each) (W x H x D)
- 202 x 58 x 136mm / 8" x 2.3" x 5.4"
- Subwoofer dimensions (W x H x D)
- 380 x 482.5 x 380mm / 15” x 19” x 15”
- Soundbar weight
- 5.93kg / 13lbs
- Detachable surround speaker weight (each)
- 1.3 kg / 2.8lbs
- Subwoofer weight
- 15.4kg / 34lbs
- Packaging dimensions (W x H x D)
- 1124 x 463 x 565 mm / 44.3" x 18.2" x 22.2"
- Packaging weight
- 29.3 kg / 64.6 lbs
-
* RMS @THD 1%
* RMS @THD 1% 475W *** RMS @THD 1%
- 785W ** RMS @THD 1%
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- MP3 bitrate
- 80 - 320 kbps
- Bluetooth version
- Main Bar - v5.3, Detachable surround speaker - v5.4
-
Main bar Bluetooth profile
Main bar Bluetooth profile A2DP v1.4, AVRCP v1.6
- A2DP v1.3, AVRCP v1.5 Detachable surround speaker Bluetooth profile
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <23dBm, 5.725 - 5.825GHz <23dBm (EIRP)
- 5G wireless transmitter power
- 5.15 - 5.25GHz <23dBm (EIRP) , 5.25 - 5.35GHz & 5.470 - 5.725GHz <23dBm (EIRP) , 5.725 - 5.825GHz <23dBm (EIRP)
- Note
- Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.
Video Specifications

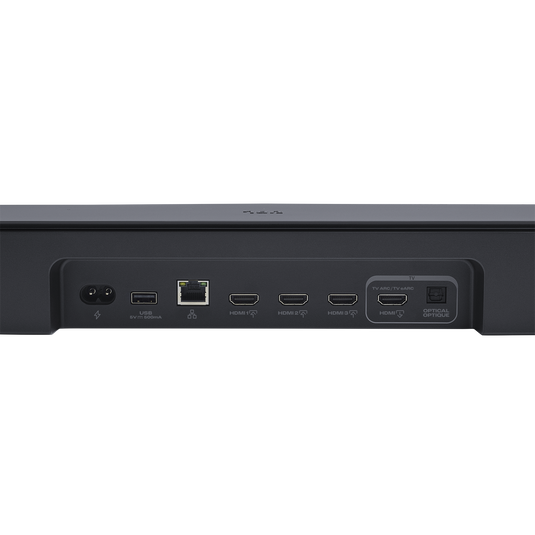

- HDMI video input
- 3
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10+, Dolby Vision

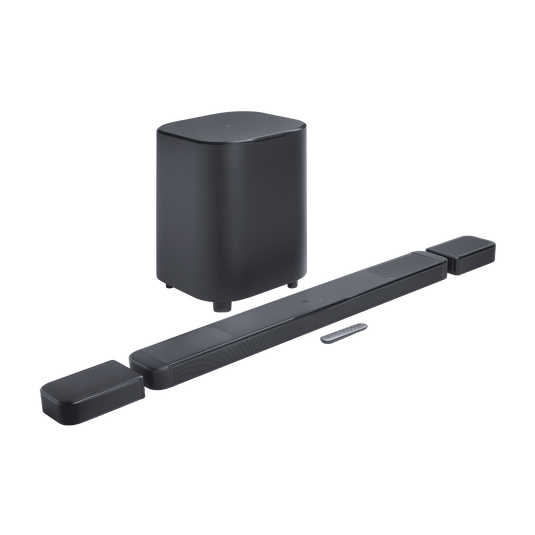

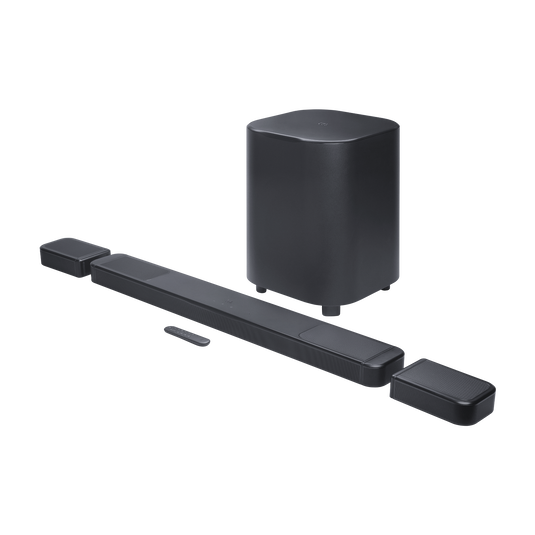

- 1x Main soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 6pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
- 4 x Side caps
- Quick start guide
- Safety instruction and Warranty card
- Wall mount template
