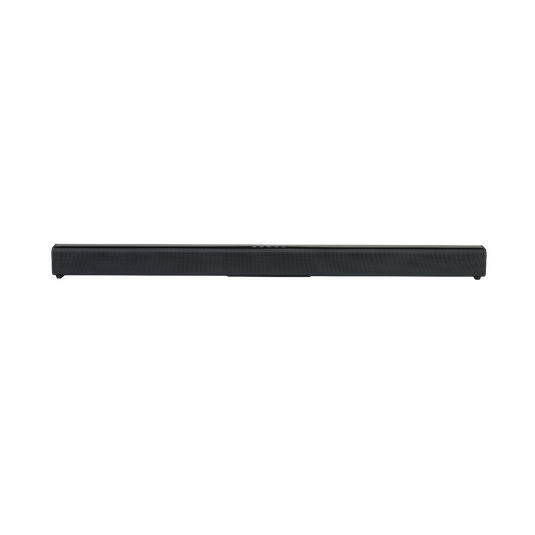

JBL Cinema SB160

Extra Bass. Extraordinary sound.

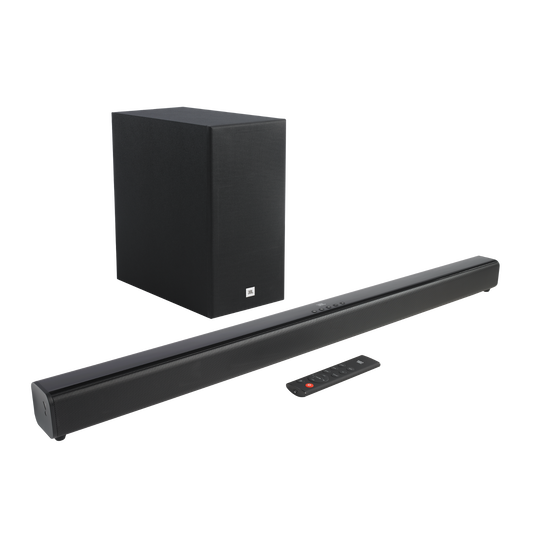

The JBL Cinema SB160 features 220W system power, Dolby Digital, Optical and HDMI ARC, four powerful full range drivers and comes with a wireless subwoofer. Enjoy impressive, balanced sound with extra deep bass for movies and music entertainment. Plus, it’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable HDMI ARC connection that ensures a hassle-free user experience.

General Specifications

Power supply

100 - 240VAC, ~ 50/60Hz

Total speaker power output (Max. @THD 1%)

220W

Soundbar power output (Max. @THD 1%)

2 x 52W

Subwoofer power output (Max. @THD 1%)

116W

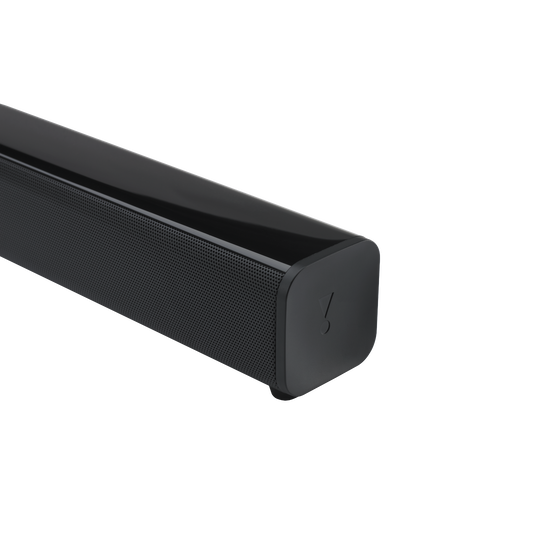

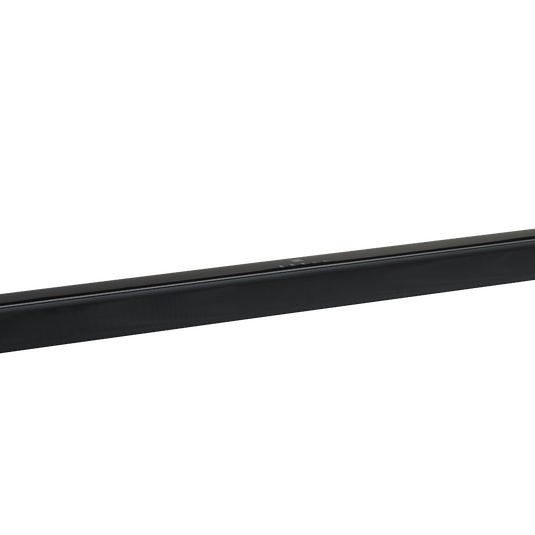

Soundbar transducer

2 x (48 x 90)mm racetrack driver + 2 x 0.5" tweeter

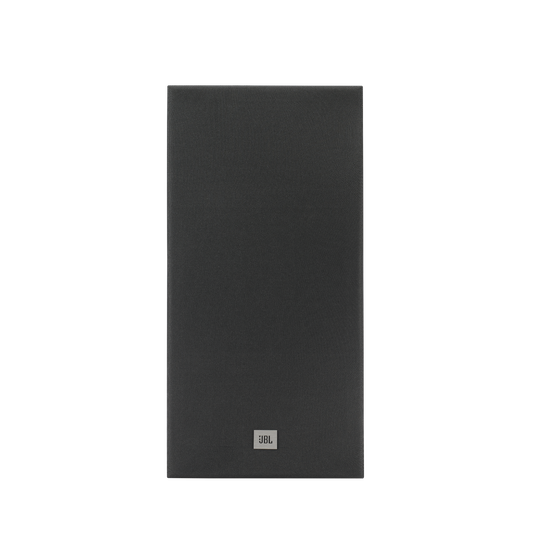

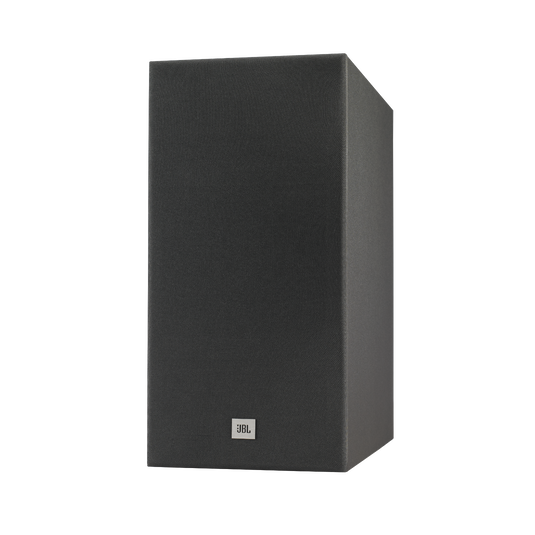

Subwoofer transducer

5.25", wireless sub

Operating temperature

0°C - 45°C

Audio Specifications

Max SPL

82dB

Frequency response

40Hz - 20kHz

Audio inputs

1 Optical, Bluetooth (USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

900 x 67 x 63(mm) / 35.4" x 2.6" x 2.5"

Subwoofer dimensions (W x H x D)

170 x 345 x 313(mm) / 6.7" x 13.6" x 12.3"

Soundbar weight

1.65kg

Subwoofer weight

5kg

Packaging dimensions (W x H x D)

975 x 195 x 445mm / 38.4" x 6.7" x 17.5"

Packaging weight (Gross weight)

8.5kg

Control and Connection Specifications

Bluetooth version

4.2

Bluetooth profile

A2DP V1.3/AVRCP V1.5

Bluetooth frequency range

2402MHz - 2480MHz

Bluetooth max. transmitting power

<0dbm (EIRP)

Modulation type

GFSK, π/4 DQPSK

2.4G Wireless frequency range

2400 - 2483MHz

2.4G Max. transmitting power

3dBm

USB port

Type A

USB rating

5VDC/ 0.5A

Supporting file format

mp3, wav

MP3 Codec

MPEG 1 Layer 2/3

MPEG 2 Layer 3

MPEG 2.5 Layer 3

MP3 sampling rate

16kHz - 48kHz

MP3 bitrate

80kbps - 320kbps

80kbps - 160kbps (MPEG 2.5 Layer 3)

WAV sample rate

16kHz - 48kHz

WAV bitrate

Up to 3000kbps

Notification

Note

WARNING!! This product contains a button/coin cell battery and is hazardous. Keep batteries away from children. Batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed inside any part of the body.

Video Specifications

HDMI Video output (With Audio return channel)

1

HDMI HDCP version

1.4

Soundbar

Wireless subwoofer

Remote control with batteries

Power cords (up to 8pcs depending on region SKUs)

HDMI cable

Wall-mount bracket kit with screws

Quick start guide

Warranty card

Safety sheet
