HDI-1200P

HDI-1200P

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system. This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction.

General Specifications

Low Frequency Driver

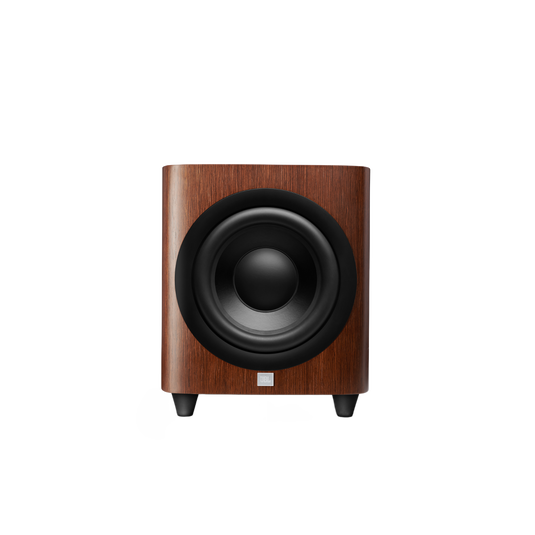

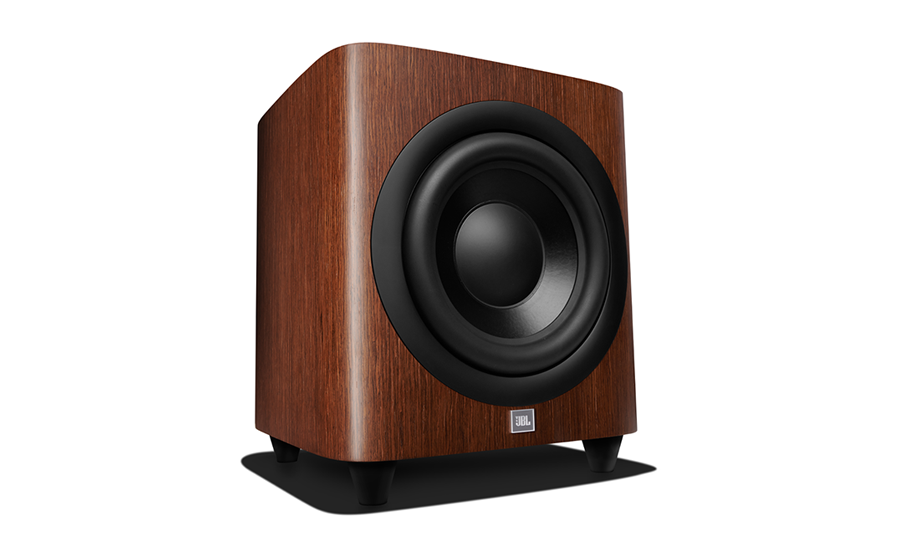

12” (300mm) black Poly-plas™, cast-frame woofer

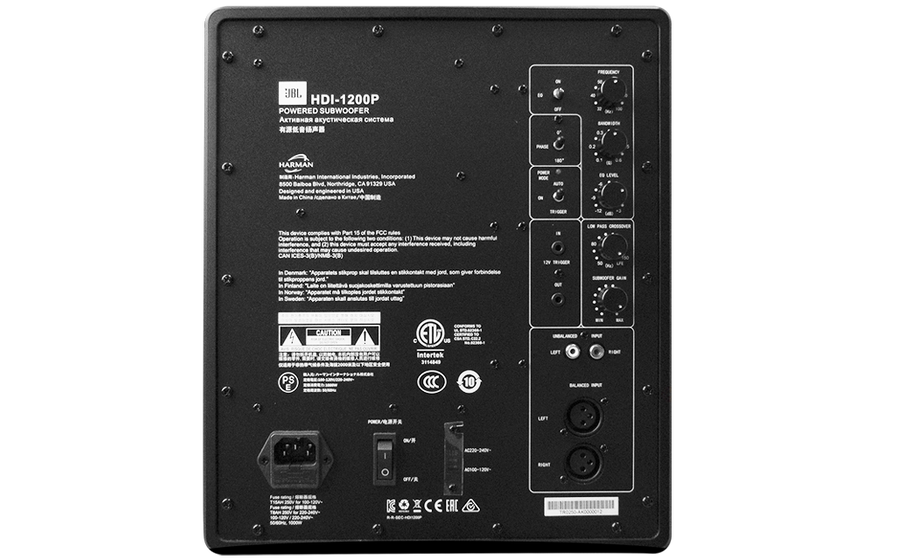

Recommended Amplifier Power

1000W rms

Crossover Frequency

50Hz – 150Hz (variable) 24dB/octave

Frequency Response

28Hz – 150Hz (-6dB)

Enclosure Type

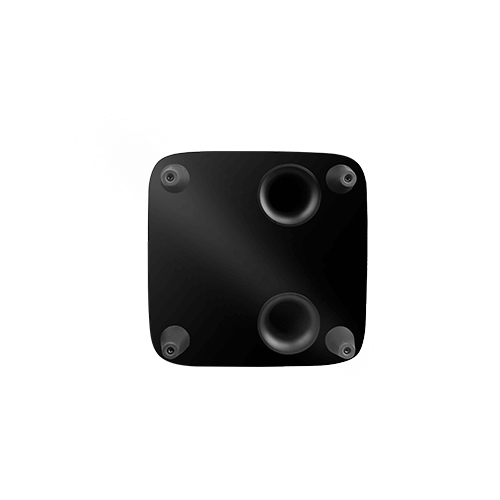

Bass-reflex design with down-firing ports

Power Requirements

100V – 240V 50/60Hz

Power Consumption (idle/max)

<0.5W (standby)

Power Consumption (idle/max)

1180W/7.7A(max-230Vac)

Power Consumption (idle/max)

1230W/12.87A(max-120Vac)

Power Consumption (idle/max)

1190W/15.97A(max-100Vac)

Dimensions (H x W x D)

16.95 x 16.3 x 17.77” (430.5 x 414 x 451.3mm)

Net Weight

70.8 lbs (31.79kg)
