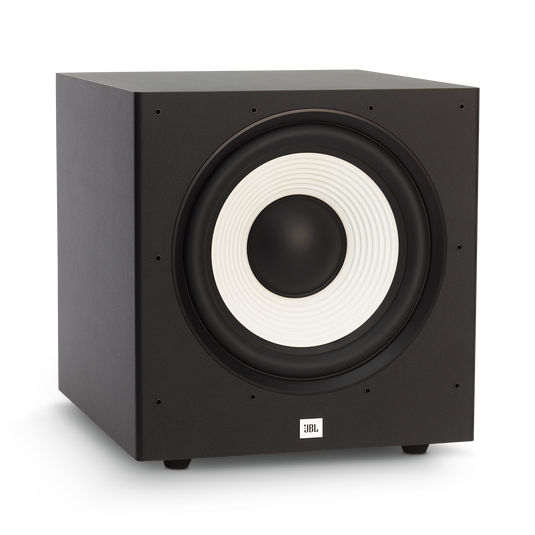

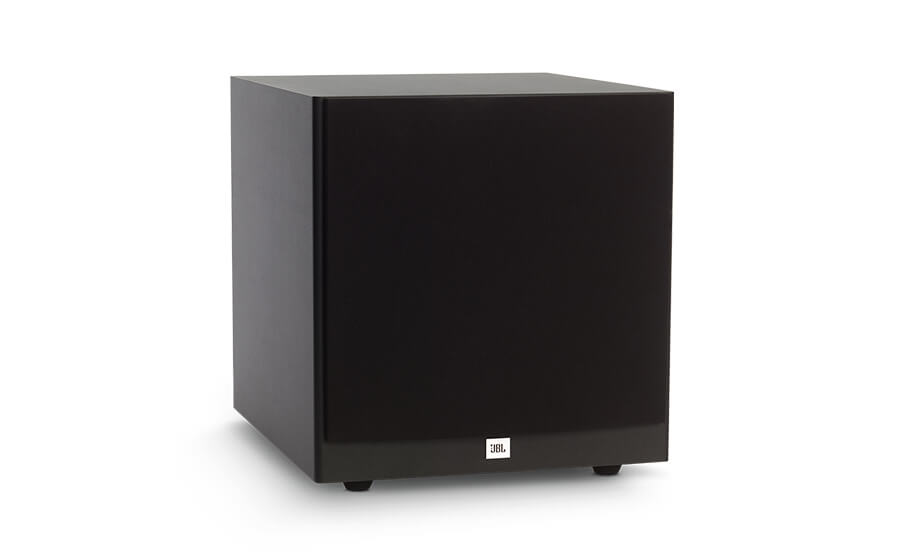

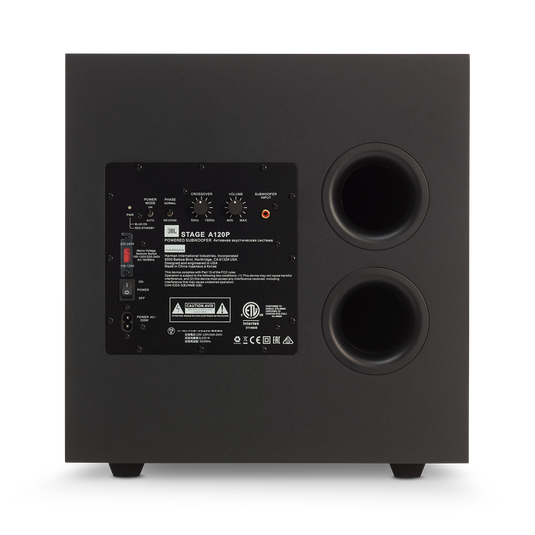

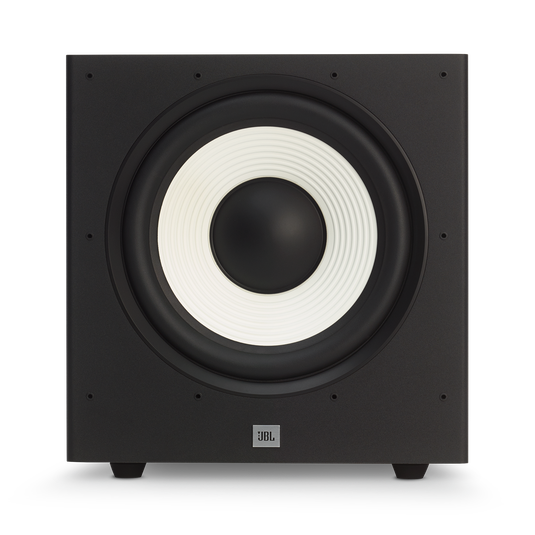

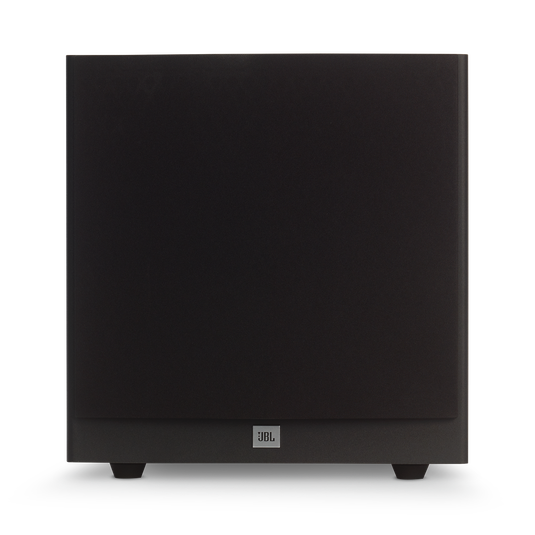

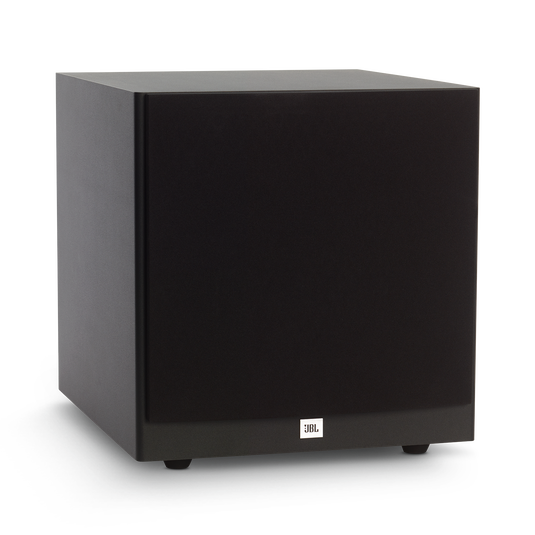

JBL Stage A120P

JBL A120P

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120P is the 12-inch (300mm) 500W powered subwoofer of the JBL Stage Series.

General Specifications

12" 500 Watts powered subwoofer

12" (305mm) Polycellulose Low-Frequency Woofer

Power

250W RMS (500W Dynamic)

Frequency Response

32Hz – 150Hz

Crossover Frequencies

50Hz – 150Hz (variable) 24dB/octave

Controls

Auto Power, Crossover, Level, Phase

Input

1 x Line-Level LFE Input

Enclosure Type

Bass-Reflex via Rear-Firing Tuned Ports

Power Requirement

120V, 60Hz (US) 220-230V, 50/60Hz (EU)

Power Consumption (Idle/Full/Power)

<0.5W (standby) / 335W/2A (max – 230V) / 335W/4A (max – 120V)

Dimensions (W x D x H)

390 x 420 x 395mm

Weight

41.09 lbs (18.64kg)

1 x JBL Stage A120P – 500 Watts Powered Subwoofer

1 x Power Cord

4 x Floor Spikes

1 x Owner’s Manual

1 x Warranty Card

1 x Safety Sheet
