JBL OpenSound technology
Each temple cleverly conceals JBL's unique ultra-thin 25mm*9mm high amplitude rectangular speaker with a three-layer diaphragm, featuring a special algorithm for bass enhancement and frequency division processing. The JBL Soundgear Frames deliver an immersive, engaging and no-compromise sound experience while leaving your ears completely open, so you can still hear everything that's happening around you.
Hands-free, crystal clear calls
The advanced beamforming 2-mic array on one temple, with dual-module environmental noise cancellation and nonlinear echo suppression algorithms, ensure you'll always have high-quality conversations. Plus, the hydrodynamic design significantly reduces distortion from air friction. Simply put: enjoy crystal clear calls, wherever you are.
8 hours of play time, plus more
8 hours of playtime gives you music and calls throughout an entire day of work or fun. And if you need some more time, a quick 10-minute charge gives you another 2 hours.
Features
Rugged and water resistant
Not only are JBL Soundgear Frames lightweight and comfortable enough to wear all day long, they're also IP54 certified water resistant. So a little rain doesn't mean you have to cut your afternoon jog short.
Style and comfort

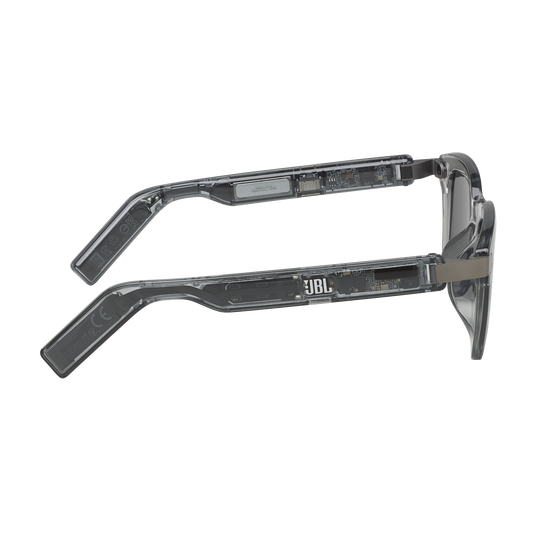

The newly designed ultra-thin rectangular speakers are mounted inside the slim temples, greatly enhancing aesthetics and comfort. The durable, flexible, lightweight frames come in a trendy translucent color in a stylish square frame. The semi-transparent lenses feature UV A/B blocking. You can also have a professional optician fit your Soundgear Frames with prescription lenses.
Wear and play

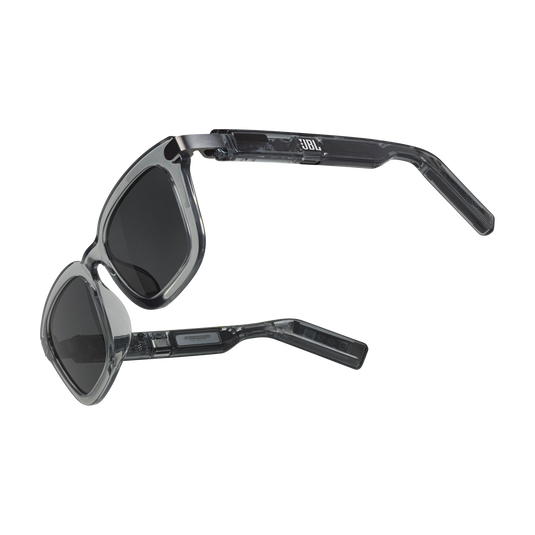

No need to find the power button. The speakers turn on when you open the frames and off when you close them.
Convenient USB Type-C charging
Running out of juice? Quickly recharge both temples of the JBL Soundgear Frames at the same time with the USB Type-C Y-shaped cable provided in the box, or any other standard USB Type-C cable.
Instant and precise control
The JBL logo doubles as an easy-to-find control panel that gives you fast, accurate control over your frames.
JBL Headphones app
Use the JBL Headphones app on your device to tweak your sound and customize the gestures according to your needs. Choose from six EQ presets or a fully customizable 10-band equalizer to adjust highs, mids, and lows—so your music is just right for you.
Video Gallery
Specs & Downloads
Item#: JBLSNDGRFMSSONXAM
EAN: 1200130022449
Style meets sound

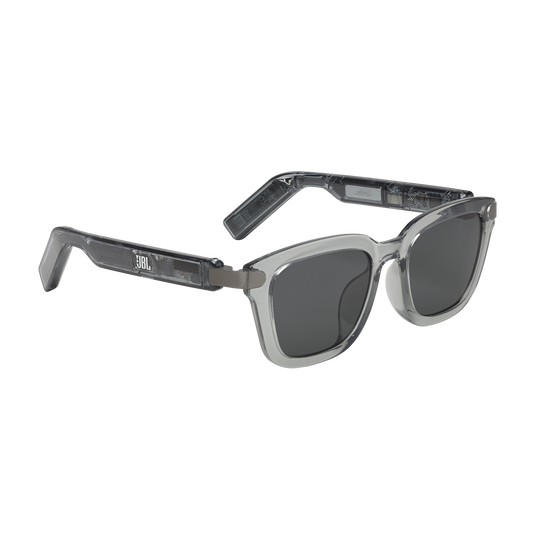

JBL Soundgear Frames are the perfect fusion of sound and fashion. Made with the latest thermoplastic materials, the slim, flexible, lightweight frames are comfortable enough to wear all day, and come in an unique translucent color and stylish design. (And yes, you can get prescription lenses installed in them by your optician.) Open the temples to turn the speakers on and close them to turn them off. When you're wearing them, just tap the JBL logo on either temple to adjust the volume, answer a call, or skip a song. JBL's unique ultra-thin 25mm*9mm high amplitude speakers—powered by JBL OpenSound technology—are mounted inside the slim temples to enhance aesthetics and comfort. They deliver an immersive and engaging audio experience while still letting you hear the sounds around you. Connect the Soundgear Frames to the JBL Headphones app and customize the sound to your own preferences, or choose from 6 preset EQ curves. The JBL Soundgear Frames are where style meets sound.
General Specifications
- Power supply
- 5 V ⎓ 0.5 A *2
- Material
- Frame-Plastic (TR90), Hinge-metal (SUS316), Temple housing- Plastic (PC)
- IPX rate
- IP54
Audio Specifications
- Driver size
- 25mm x 9 mm/0.98" x 0.35" Dynamic Driver
- Frequency response
- 100 Hz - 18 kHz
- Impedance
- 20 ohm
- Sensitivity
- 114 dB SPL@1 kHz
- Maximum SPL
- 90 dB
- Microphone sensitivity
- -38 dBV/Pa@1 kHz
- Maximum operation temperature
- 45 °C
Dimensions
- Battery type
- Lithium-ion battery (110 mAh/ 3.8 V)
- Charging time
- 2 hrs from empty
Control and Connection Specifications
- Bluetooth version
- 5.2
- Bluetooth transmitter frequency range
- 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power
- <12 dBm (EIRP)
- Bluetooth transmitter modulation
- GFSK, π/4-DQPSK, 8DPSK
- Dimensions Round shape (L x W x H)
- 160.87mm * 150.54mm * 53.68mm / 6.33" 5.93" 2.11"
- Dimensions Square shape (L x W x H)
- 160.21 mm x 152.54 mm x 50.83 mm/6.31" x 6.01" x 2.00"
Battery
- Battery type
- Lithium-ion battery (110 mAh/ 3.8 V)
- Charging time
- 2 hrs from empty
Features
- JBL Headphone App
- Yes
- 1 x Soundgear Frame audio glasses

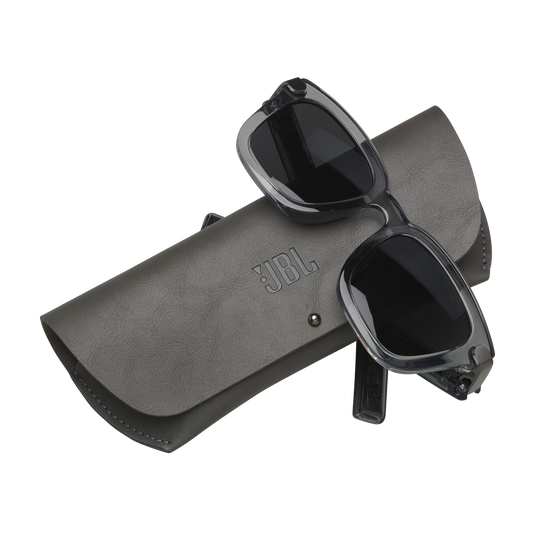

- 1 x Carrying case
- 1 x USB Type-C Y-shaped charging cable
- 1 x Warranty / Warning (W / !)
- 1 x product QSG/ Safety Sheet (S / i)
